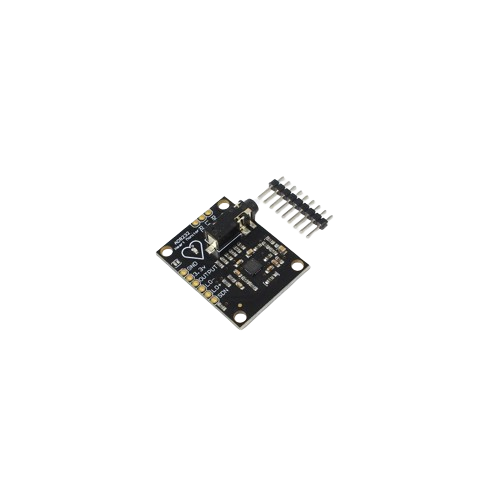

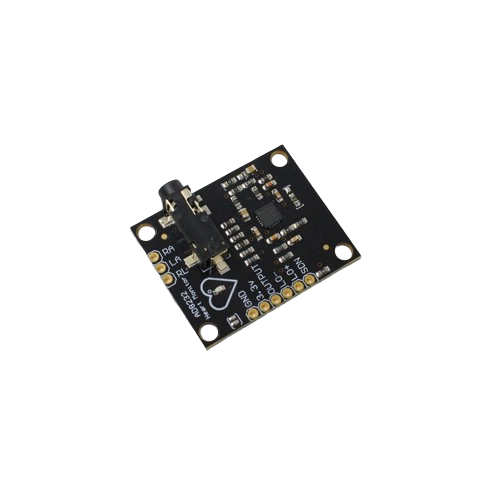

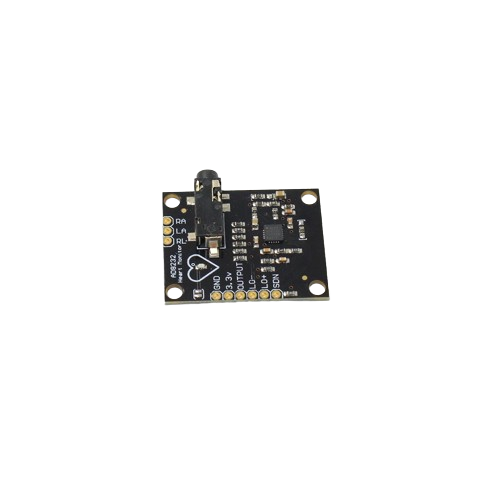

WAVGAT AD8232 ECG Heart Monitoring Sensor Module - Analog Output, 3.5mm Jack
The WAVGAT AD8232 ECG Sensor Module is a single-lead, analog-output heart monitoring solution designed for integration with Arduino, Raspberry Pi, and other 3.3V/5V microcontrollers. It provides a filtered signal for accurate heart rate and ECG waveform acquisition in portable health monitoring and educational projects.
Features
- Single-lead ECG signal acquisition with integrated instrumentation amplifier.
- Low-power operation from 1.8V to 3.6V, ideal for battery-powered wearable devices.
- Built-in leads-off detection and shutdown pin for power management.
- Analog output for direct connection to microcontroller ADC pins.
- Includes 3.5mm jack for standard biomedical electrode pad connections.
Out of stock
The AD8232 module is built around the Analog Devices AD8232 chip, a dedicated instrumentation amplifier designed for ECG and other biopotential measurement applications. It amplifies and filters the small electrical signals generated by the heart, providing a clean, analog output signal suitable for digitization and analysis. The module incorporates right-leg drive (RLD) circuitry and built-in high-pass filtering to suppress motion artifacts and baseline wander.
Designed for ease of integration, the module operates on a wide supply voltage compatible with 3.3V logic systems and features a shutdown pin to minimize power consumption when not actively sensing. Its compact form factor and standard 3.5mm electrode connector make it suitable for prototyping portable health monitors, fitness trackers, and educational setups for cardiac electrophysiology.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 5 × 4 × 1 cm |
