Upside Down Labs Muscle BioAmp Patchy v0.2 (Red) - Wearable EMG Sensor Module
The Muscle BioAmp Patchy v0.2 is a compact, wearable EMG sensor module designed for direct snap-on connection to standard gel electrodes. It features a high-gain, low-noise amplifier with a 72–720 Hz bandpass filter, making it compatible with development boards like Arduino, ESP32, and Raspberry Pi Pico for precise muscle signal acquisition.
Features
- High-impedance (10^12 Ω) input for precise muscle signal acquisition with minimal loading.
- Fixed gain of x2420 with integrated 72–720 Hz bandpass filter for clean EMG signal conditioning.

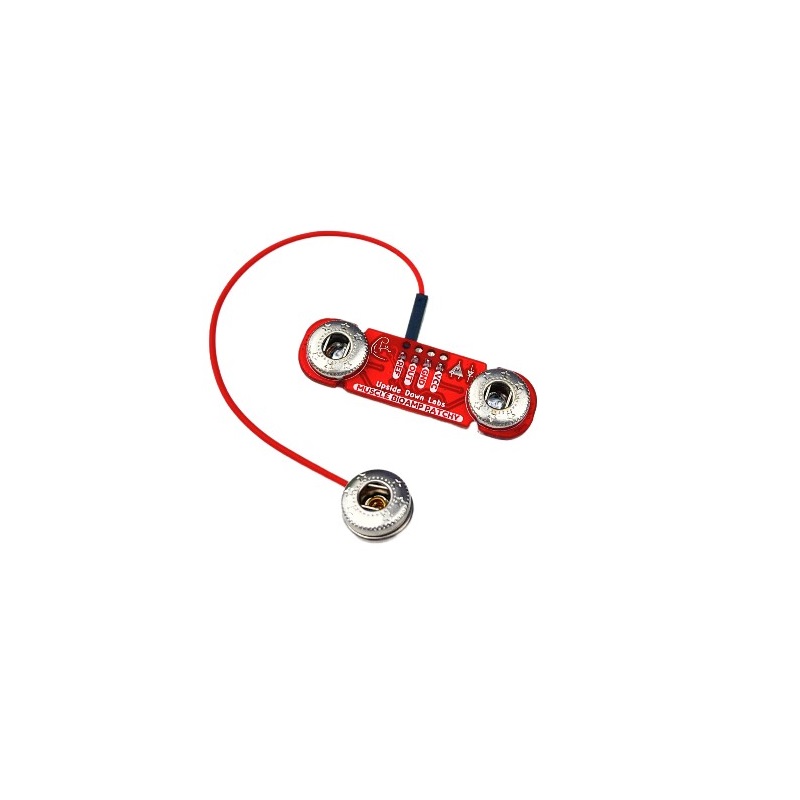

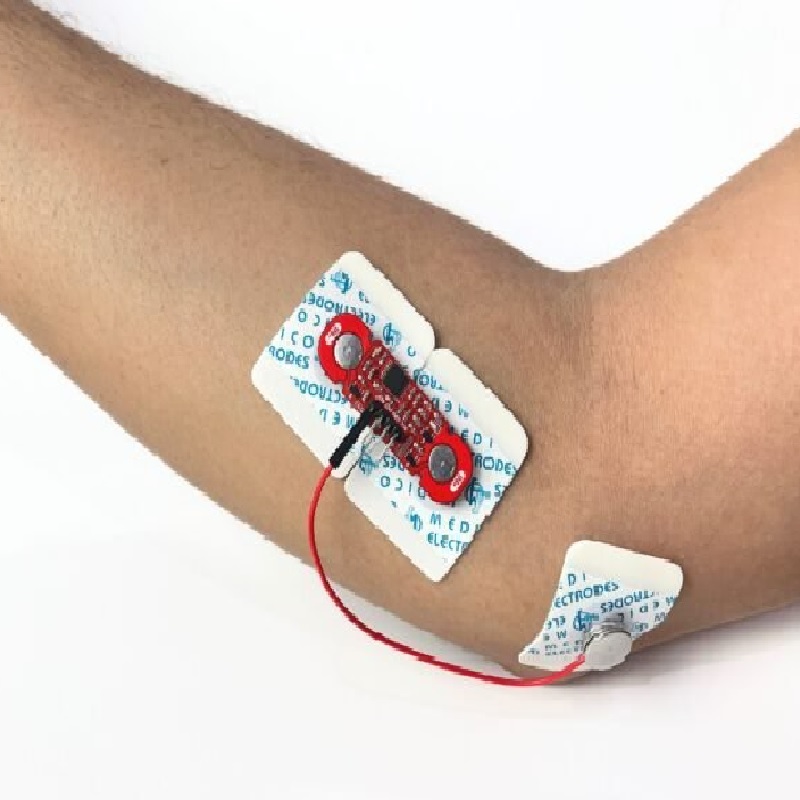

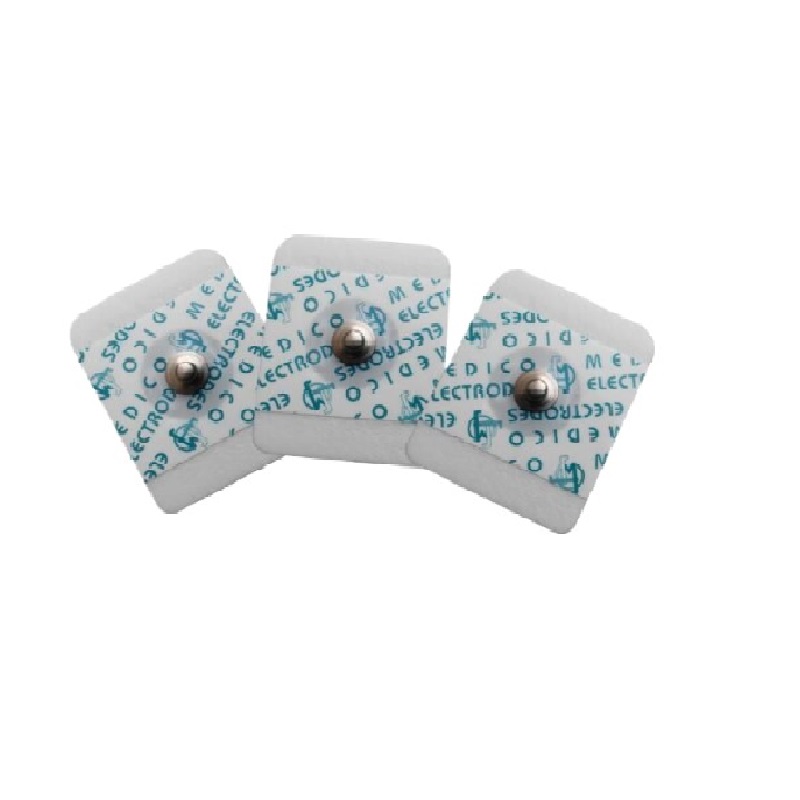

- Wearable patch design with onboard snap connectors for direct attachment to standard gel electrodes.
- Single-channel EMG recording compatible with any development board featuring an ADC input.
- Open-source hardware and software for full customization and integration into HCI projects.
Out of stock

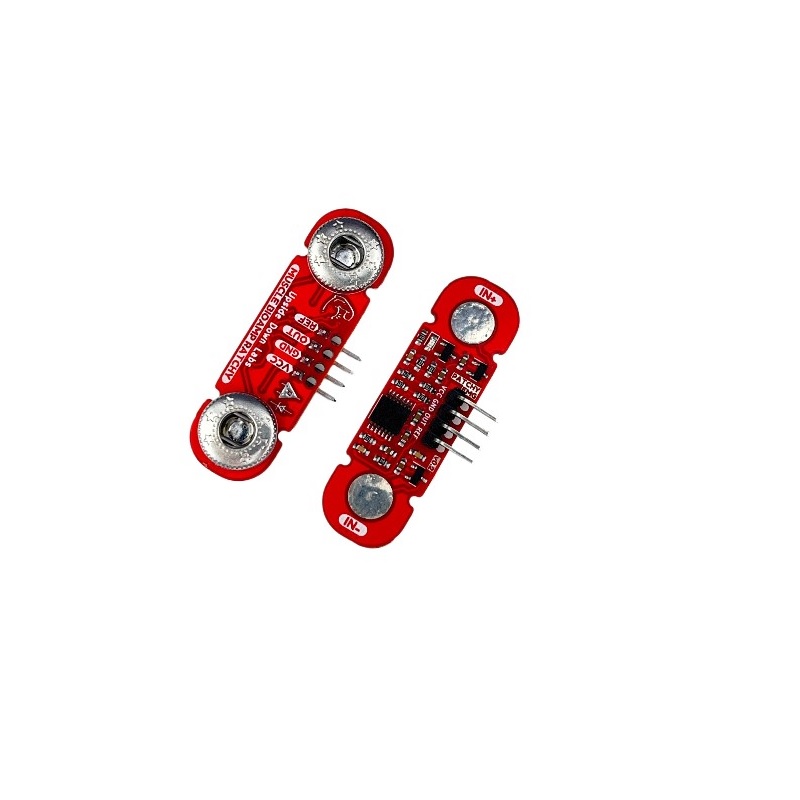

The Muscle BioAmp Patchy v0.2 leverages Upside Down Labs’ proprietary BioAmp sensing technology to provide a robust platform for electromyography (EMG). Its core is a precision instrumentation amplifier with an ultra-high input impedance of 10^12 Ω, ensuring accurate capture of microvolt-level biopotentials without signal attenuation. The onboard analog signal chain includes a fixed gain stage and a bandpass filter, outputting a conditioned signal ready for ADC conversion.

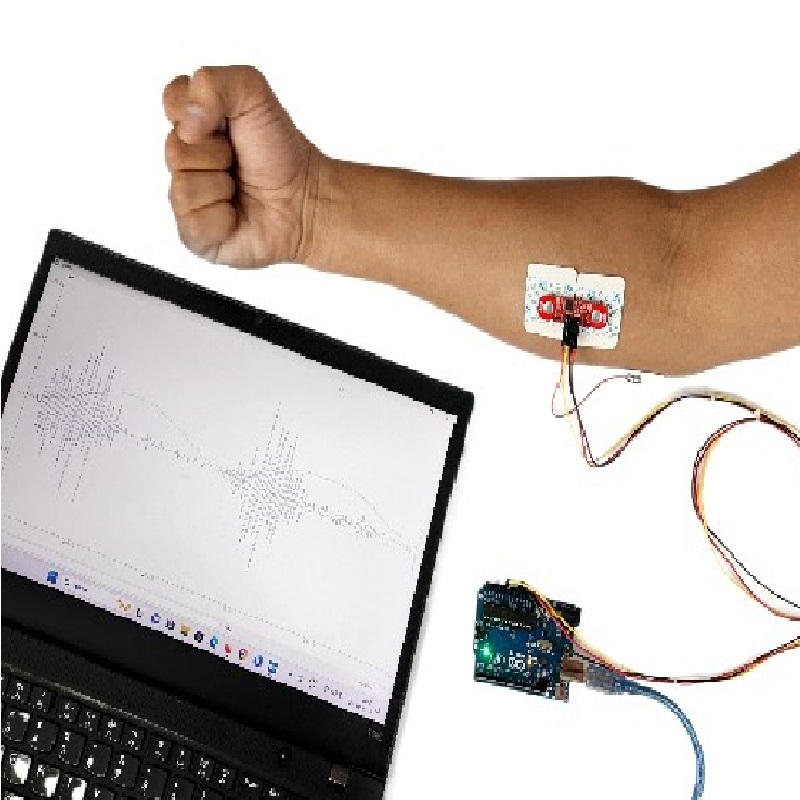

Designed for wearable human-computer interface (HCI) applications, the module’s compact form factor and direct electrode connection simplify integration into prosthetics, rehabilitation devices, and gesture control systems. It operates from a single 5V supply and includes reverse polarity protection and a power indicator for reliable field use.
Additional Information
| Weight | 0.09 kg |
|---|---|
| Dimensions | 4.7 × 1.4 cm |
