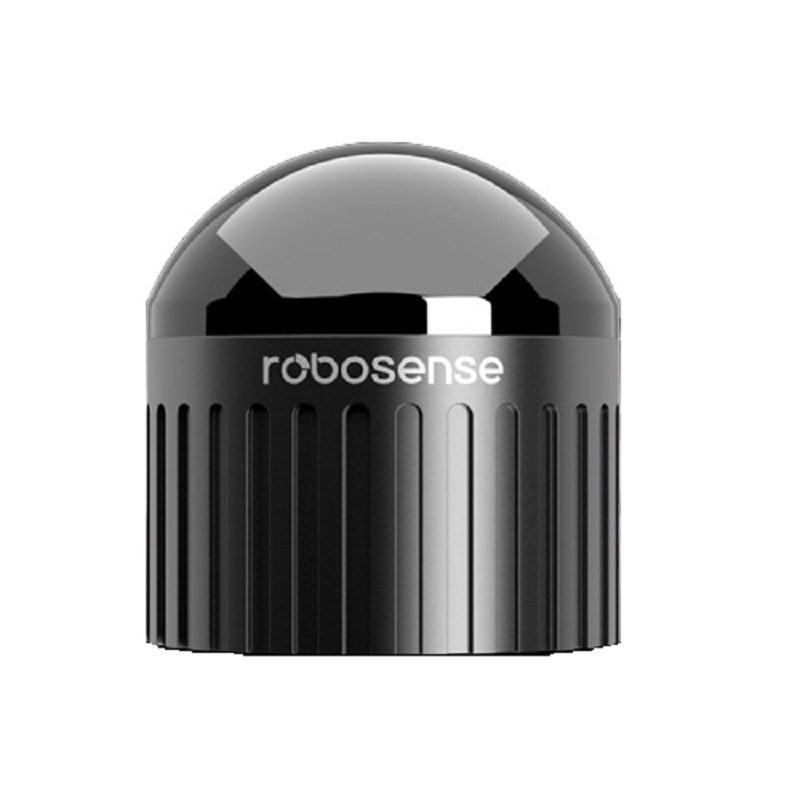

RoboSense Airy LiDAR - 96-Beam Hemispherical 360°×90° FOV Sensor with Interface Box & Power Supply
RoboSense Airy LiDAR - 96-Beam Hemispherical 360°×90° FOV Sensor with Interface Box & Power Supply - Image 2
SKU: SENS-1439
📋 GST Invoice Available

RoboSense Airy LiDAR - 96-Beam Hemispherical 360°×90° FOV Sensor with Interface Box & Power Supply

₹177,739.00 (Inclusive of all taxes)
Out of Stock

The RoboSense Airy LiDAR is a compact, hemispherical 96-beam digital sensor delivering a 360°×90° field of view for high-precision 3D mapping, obstacle avoidance, and robot localization. It integrates an IMU and is designed for seamless integration with robotic platforms, autonomous systems, and SLAM applications.

Features

  • Hemispherical 360°×90° Field of View for full-range environmental coverage.
  • High-Density Point Cloud with ~860,000 points per second and ±1cm precision.
  • Ultra-Compact Form Factor measuring φ60mm × H63mm and weighing under 240g.
  • Integrated IMU enhances sensor fusion and localization accuracy.
  • Low Power Consumption below 8W enables continuous, stable operation.

Out of stock

Description

The RoboSense Airy LiDAR represents a breakthrough in compact digital LiDAR design, utilizing a unique opto-mechanical system to generate a high-precision, structured point cloud. Its repetitive scanning approach provides real-time, algorithm-friendly data output, significantly enhancing capabilities in 3D mapping, dynamic obstacle detection, and sensor fusion for autonomous navigation.

Engineered for durability and long-term operation, the sensor consumes less than 8W of power and is built to perform reliably in diverse indoor and outdoor environments, from warehouses and ports to residential spaces. The integrated inertial measurement unit (IMU) further refines positioning data, supporting precise path planning and environmental reconstruction.

Key Features

  • Industry-first compact hemispherical digital LiDAR with a 120-meter effective diameter range.
  • Delivers an ultra-high-definition point cloud at ~860,000 points per second (single return).
  • Exceptional long and short-distance detection of both dynamic and static small obstacles.
  • Ultra-low power design ensures energy-efficient, continuous operation for mobile robots.
  • Robust mechanical construction in a minimal footprint for flexible integration.
  • Digital architecture provides stable, repeatable data output for advanced perception algorithms.

Applications

  • Autonomous Mobile Robot (AMR) navigation and obstacle avoidance in warehouses and factories.
  • Simultaneous Localization and Mapping (SLAM) for service and logistics robots.
  • 3D environmental modeling and reconstruction for inspection and surveying.
  • Precision path planning and dynamic object tracking in port automation.
  • Sensor fusion systems for enhanced perception in unmanned ground vehicles.

Technical Specifications

Model NameAiry LiDAR
Dimensionsφ60 mm × H63 mm
Weight< 240 g
Field of View (FOV)360° (Horizontal) × 90° (Vertical)
Number of Beams96
Measurement Range (@10% Reflectivity)30 m
Range Precision±1 cm (@1σ)
Point Cloud Rate~860,000 pts/s
Power Consumption< 8 W
Integrated SensorIMU (Inertial Measurement Unit)

Frequently Asked Questions

What is the field of view and effective range of the RoboSense Airy LiDAR?

The Airy LiDAR provides a full hemispherical field of view of 360° horizontally and 90° vertically. Its effective measurement range is up to 30 meters for objects with 10% reflectivity, enabling comprehensive environmental coverage for mapping and navigation.

What interfaces and power supply are required to operate this LiDAR sensor?

The sensor operates on less than 8W of power and is supplied with a 12V/3.34A (40W) adapter. It connects via an included interface box, which provides the necessary data communication interfaces (typically Ethernet or serial) for integration with robot controllers or computing platforms.

How does the integrated IMU benefit the LiDAR's performance?

The integrated Inertial Measurement Unit (IMU) provides real-time orientation and acceleration data. This enhances sensor fusion algorithms, improving the accuracy of localization and point cloud registration, especially during dynamic robot movement or on uneven terrain.

Is this LiDAR suitable for outdoor use?

Yes, the Airy LiDAR is designed for reliable operation in diverse environments. Its high point cloud density and precision allow it to detect obstacles effectively both indoors and in controlled outdoor settings like courtyards and ports, supporting all-weather robotic applications.

Package Includes

  • 1 x RoboSense Airy LiDAR Sensor
  • 1 x Interface Box (1.5m cable)
  • 1 x DC 12V, 3.34A (40W) Power Adapter
  • 1 x Power Cable (1.2m)
  • 3 x M3x8 Screws

Additional Information

Weight 0.33 kg
Dimensions 11 × 7 × 6 cm
