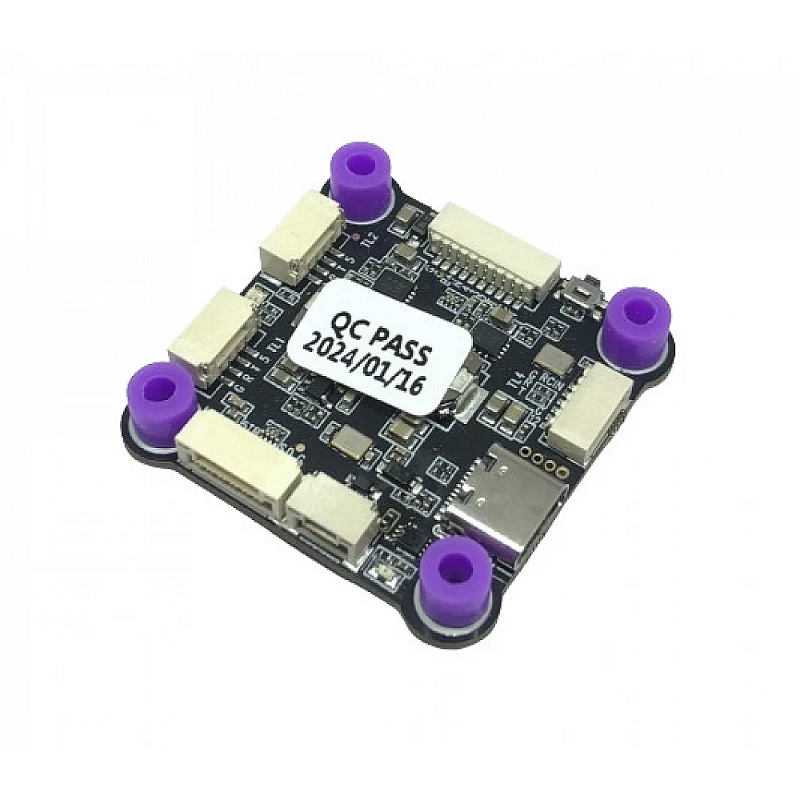

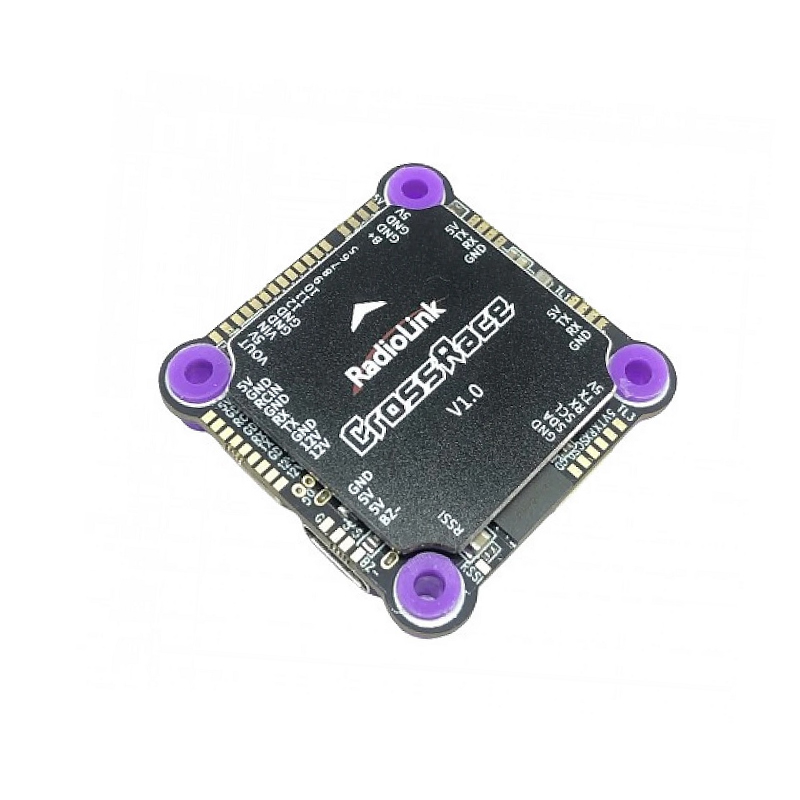

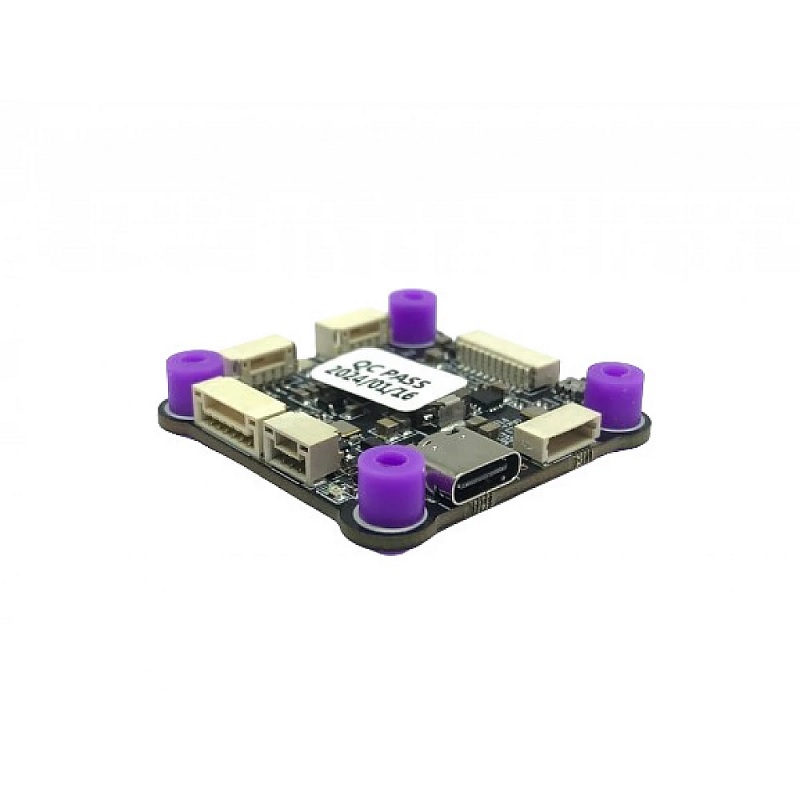

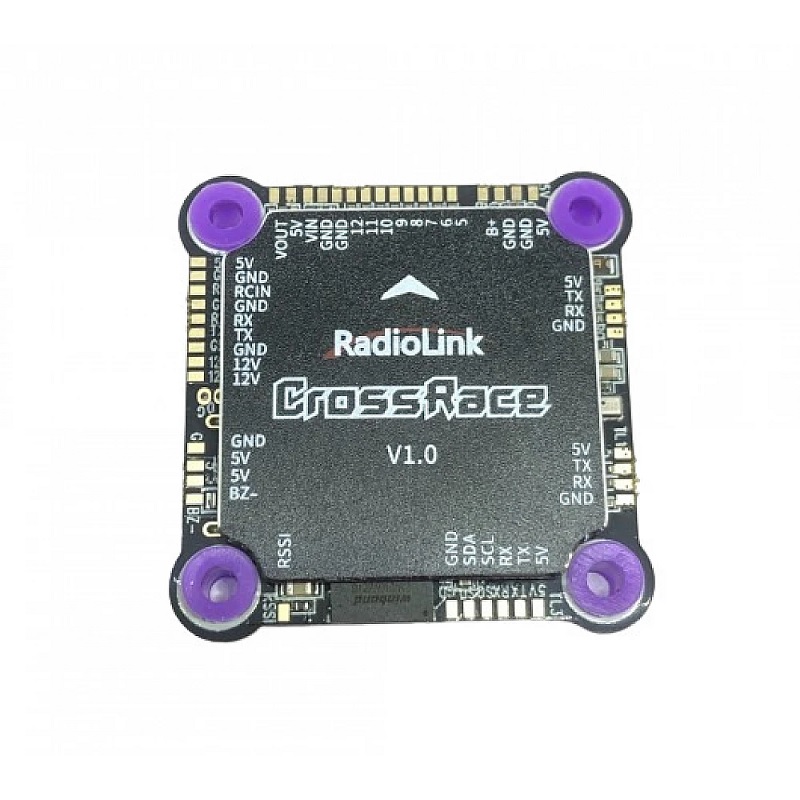

RadioLink CrossRace Flight Controller
The RadioLink CrossRace Flight Controller is a high-performance FPV racing and freestyle controller built around the HC32F4A0PITB processor and BMI323 gyro, supporting 2-6S LiPo input and featuring a 30.5×30.5mm mounting pattern for seamless integration into modern racing quadcopters.
Features
- HC32F4A0PITB processor for high-speed flight control processing.
- BMI323 gyroscope delivers precise, low-noise attitude data for aggressive maneuvers.
- Wide 2-6S LiPo input voltage range (8.4V-25.2V) with integrated 5A BEC.
- 12 PWM output channels support complex builds with peripherals like LED strips and servos.
- 30.5×30.5mm mounting pattern and USB Type-C port for robust, modern connectivity.
Out of stock
The RadioLink CrossRace Flight Controller is engineered for pilots demanding uncompromising responsiveness and stability in high-speed FPV racing and freestyle flight. Its core is the powerful HC32F4A0PITB ARM Cortex-M4 processor, paired with a dedicated BMI323 6-axis IMU, providing the computational headroom and sensor fidelity needed for advanced Betaflight filtering and rate profiles.
Designed for durability in harsh environments, the board operates across an extended temperature range from -30°C to 85°C. The integrated power system includes a robust 5A switching BEC, ensuring clean power for the controller and connected peripherals even under high electrical noise from high-KV motors and aggressive throttle punches.
Additional Information
| Weight | 0.08 kg |
|---|---|
| Dimensions | 11 × 8 × 3 cm |
