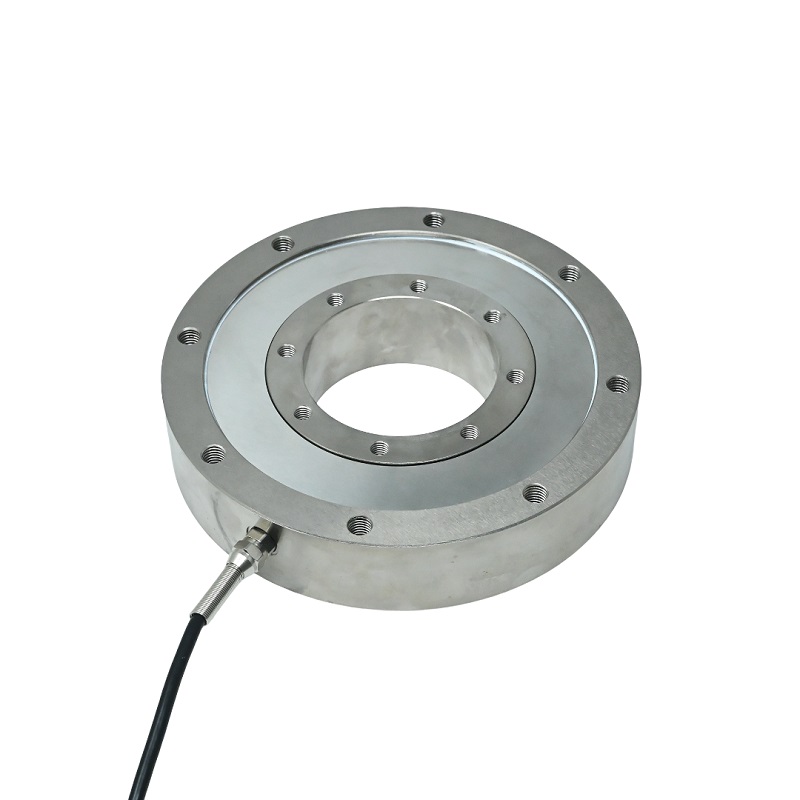

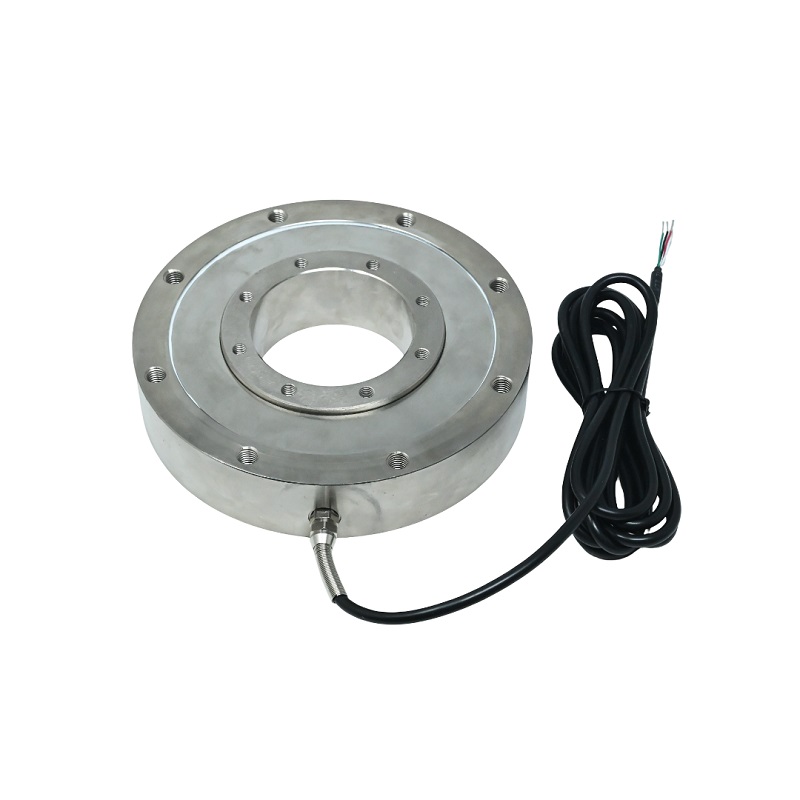

Pro-Range GTS312 500N Static Torque Sensor - 1.5mV/V Output, 10VDC, Flange Mount
The Pro-Range GTS312 is a high-precision static torque sensor with a 500N capacity, delivering a 1.5±0.1mV/V output signal for integration with data acquisition systems, PLCs, and industrial instrumentation requiring accurate torque measurement in non-continuous rotation applications.
Features
- 500 Newton (N) rated capacity for mid-range torque measurement.
- High-precision 1.5±0.1mV/V output with ±0.1% F.S. repeatability.
- Alloy steel construction with IP65-rated environmental protection.
- Dual bridge resistance options (350Ω or 700Ω) for system compatibility.
- Fast response time ≤100 µs for dynamic torque capture.
Out of stock
The GTS312 static torque sensor utilizes a precision strain gauge bridge bonded to a durable alloy steel sensing element. When torque is applied, the resulting strain produces a millivolt-level output signal proportional to the excitation voltage, enabling accurate measurement for static or slowly rotating shafts. The sensor’s robust flange-type connection facilitates secure mounting and reliable torque transfer.
Engineered for stability, the sensor operates across a wide temperature range from -20°C to +75°C and features built-in overload protection. Its IP65-rated housing protects the internal electronics from dust and water jets, making it suitable for integration into industrial test benches, assembly machinery, and laboratory calibration setups where reliable, repeatable torque data is critical.
Additional Information
| Weight | 5.985 kg |
|---|---|
| Dimensions | 35 × 28 × 25 cm |
