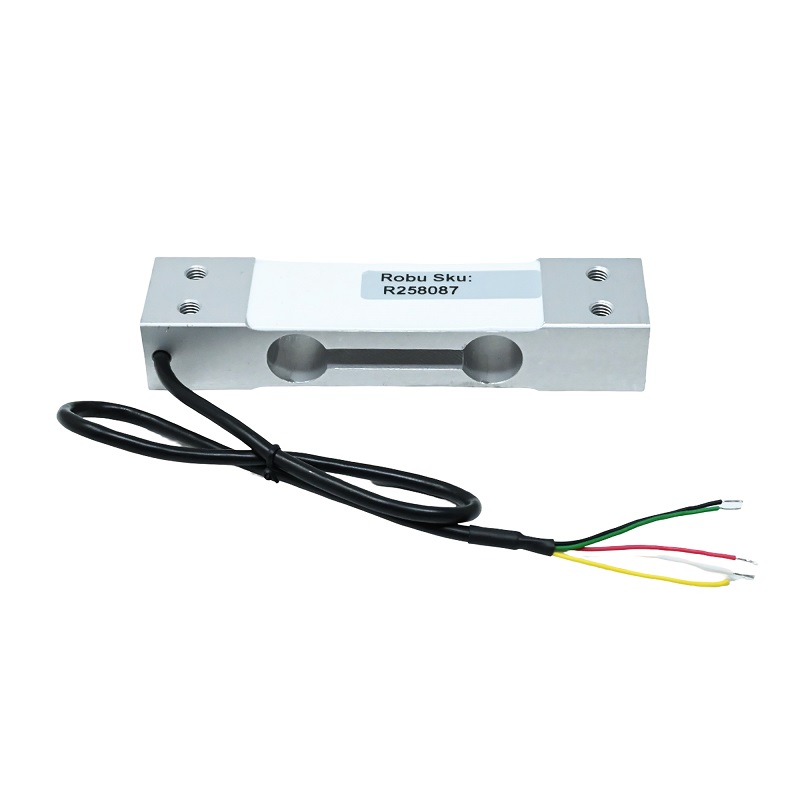

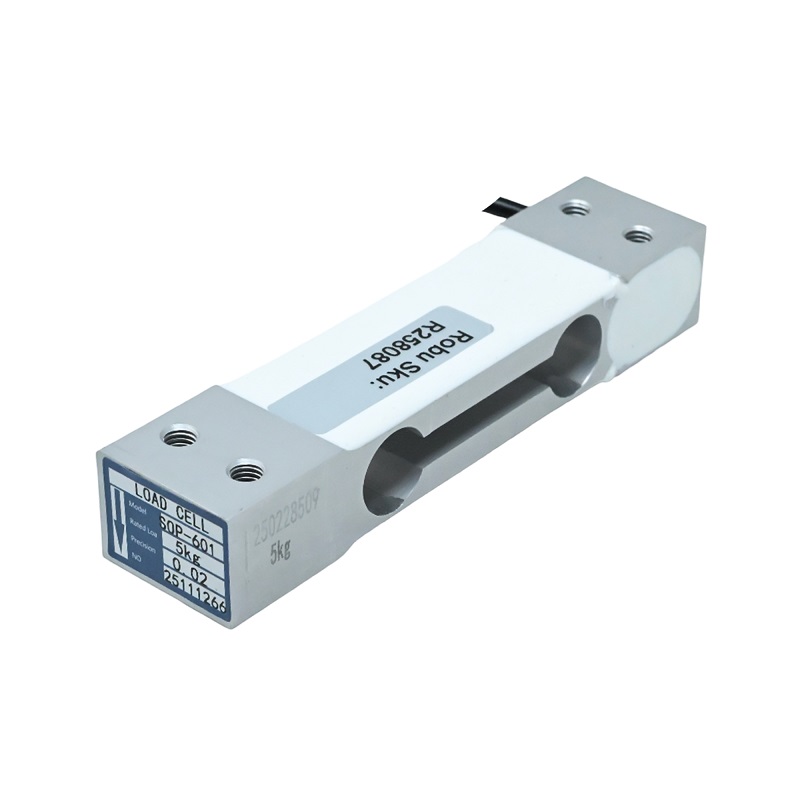

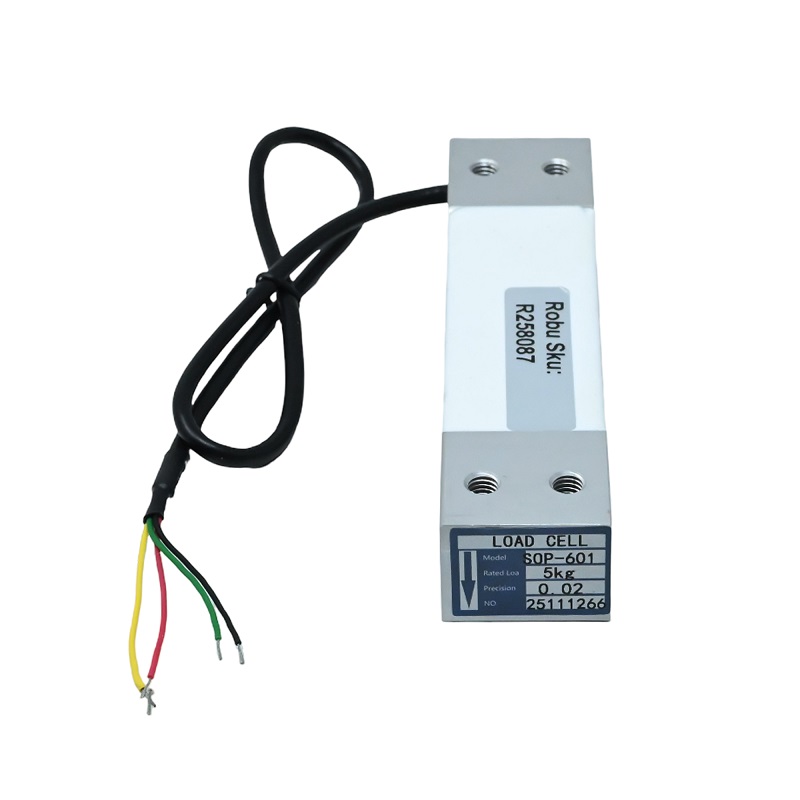

SOP SOP601-5kg Single Point Load Cell Sensor, 2.0mV/V, ±0.02%, IP65, Aluminum Alloy
The SOP SOP601-5kg is a high-precision single-point load cell sensor designed for low-capacity electronic weighing systems. With a 2.0mV/V output sensitivity and ±0.02% precision, it provides reliable force measurement for integration with instrumentation amplifiers, data loggers, and microcontroller platforms like Arduino and Raspberry Pi.
Features
- 5kg capacity single-point load cell with 2.0mV/V output sensitivity.
- High precision of ±0.02% for accurate small-scale weighing applications.
- Aluminum alloy construction with IP65 protection for dust and water resistance.
- Compact dimensions (130mm x 22mm) for easy integration into tight spaces.
- Includes 2-meter cable for flexible installation and connection.
Out of stock
The SOP601 load cell operates on the strain gauge principle, where applied force causes a proportional change in electrical resistance, outputting a millivolt signal relative to the excitation voltage. This Wheatstone bridge configuration ensures high sensitivity and linearity for precise weight measurement.
Constructed from aluminum alloy and featuring an IP65 environmental rating, the sensor is protected against dust ingress and low-pressure water jets, making it suitable for use in commercial scales, vending machines, and light industrial environments. Its compact, single-point design allows for straightforward mounting and integration into automated platforms.
Additional Information
| Weight | 0.001 kg |
|---|---|
| Dimensions | 13 × 2.2 cm |
