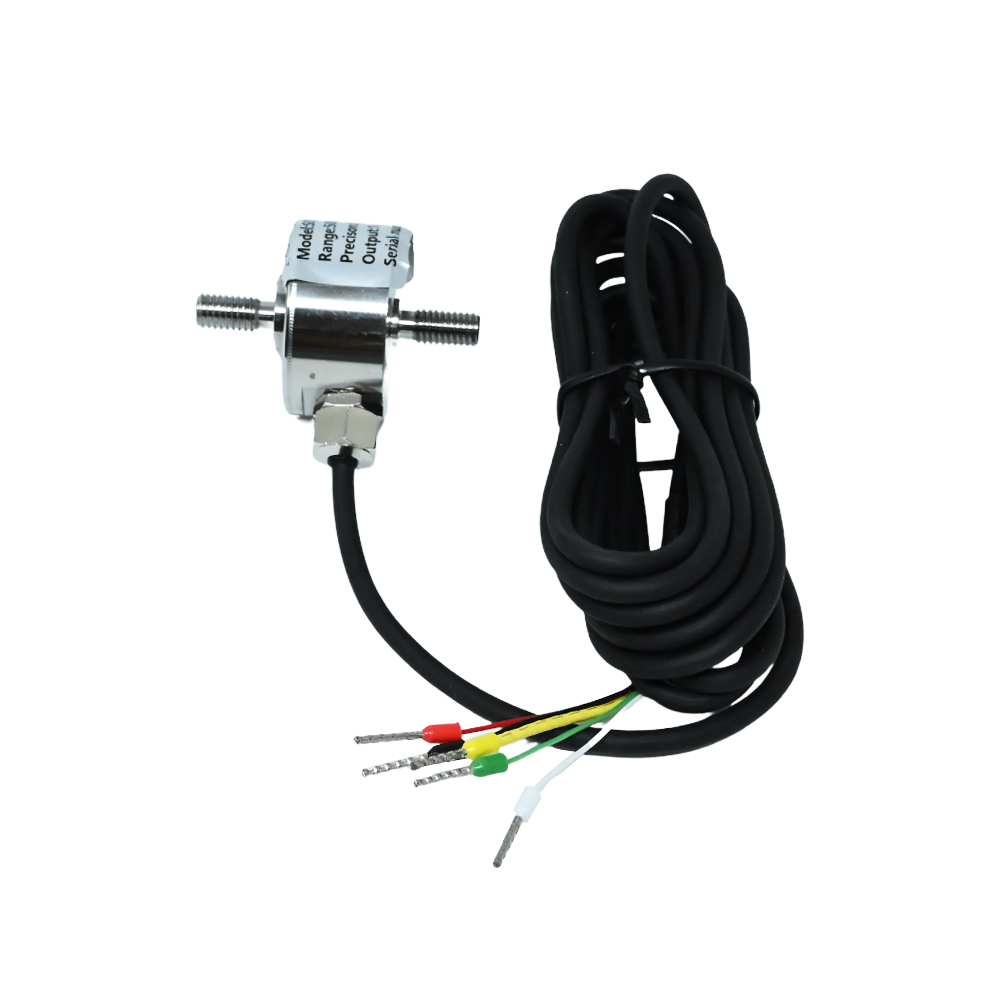

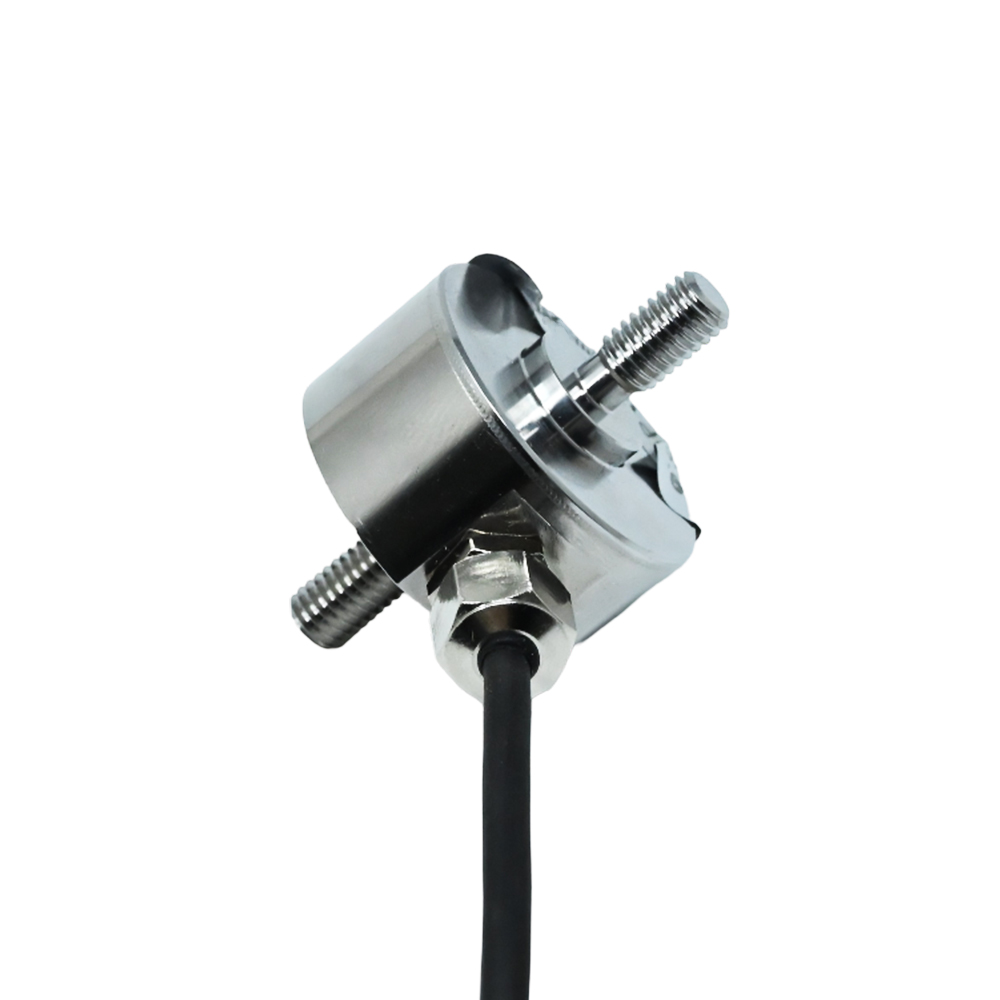

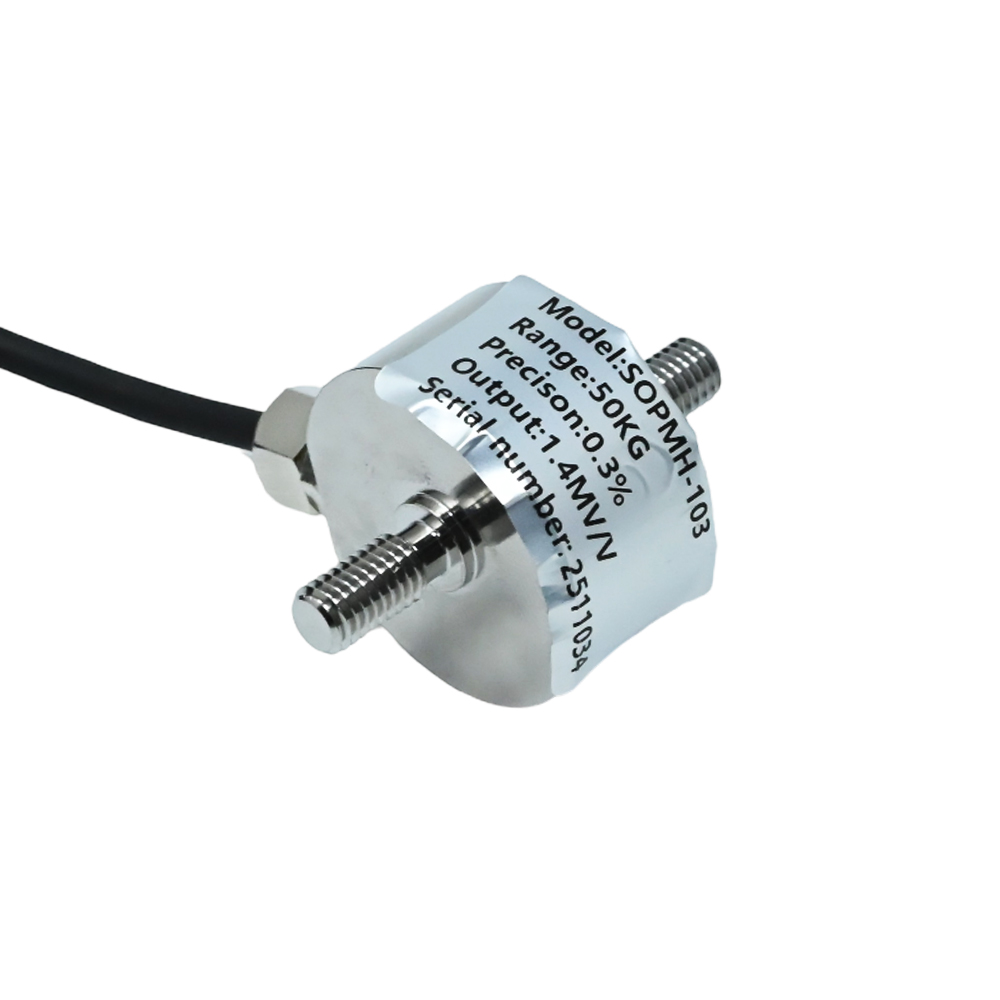

SOP SOPMH-103 50kg Load Cell Sensor - 1.4mV/V, 0.3% F.S Accuracy
The SOP SOPMH-103 is a precision strain gauge load cell sensor designed for accurate force and weight measurement up to 50kg. Featuring a 1.4mV/V sensitivity and 0.3% F.S accuracy, it integrates with standard instrumentation amplifiers and controllers for industrial weighing, process control, and test & measurement applications.
Features
- 50kg Capacity: Rated for precise weight and force measurement up to 50 kilograms.
- High Precision: Delivers 0.3% F.S accuracy with excellent repeatability and low hysteresis.
- Standard Sensitivity: Provides a 1.4mV/V output signal for compatibility with common signal conditioners.
- Robust Construction: Built for industrial environments with a wide operating temperature range (-20°C to +60°C).
- Flexible Installation: Suitable for both compression and tension mounting in platforms, rigs, and machinery.
Out of stock
The SOPMH-103 utilizes a bonded strain gauge Wheatstone bridge configuration to convert applied mechanical force into a proportional electrical signal. Its 1.4mV/V sensitivity provides a strong, measurable output when excited with a standard 5-15V DC supply, ensuring reliable performance when paired with instrumentation amplifiers and data acquisition systems.
Engineered for stability, the sensor features a high 2000MΩ insulation resistance and controlled output impedance (350Ω) to minimize signal drift and electrical interference in industrial settings. The robust mechanical design and specified -20°C to +60°C operating range ensure consistent, repeatable measurements in demanding automation, process control, and testing environments.
Additional Information
| Weight | 0.055 kg |
|---|---|
| Dimensions | 4 × 2.7 cm |
