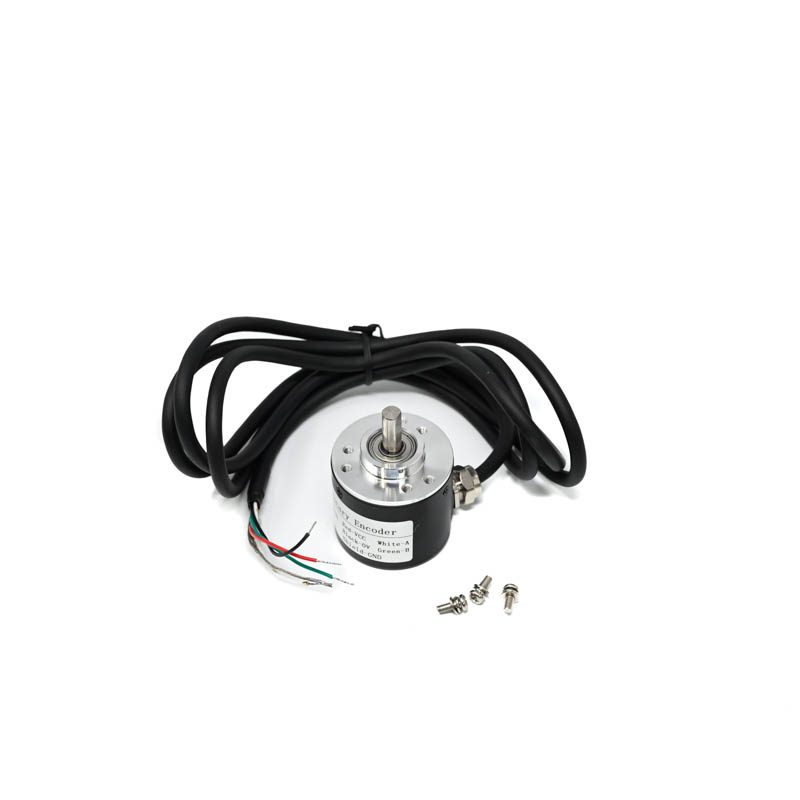

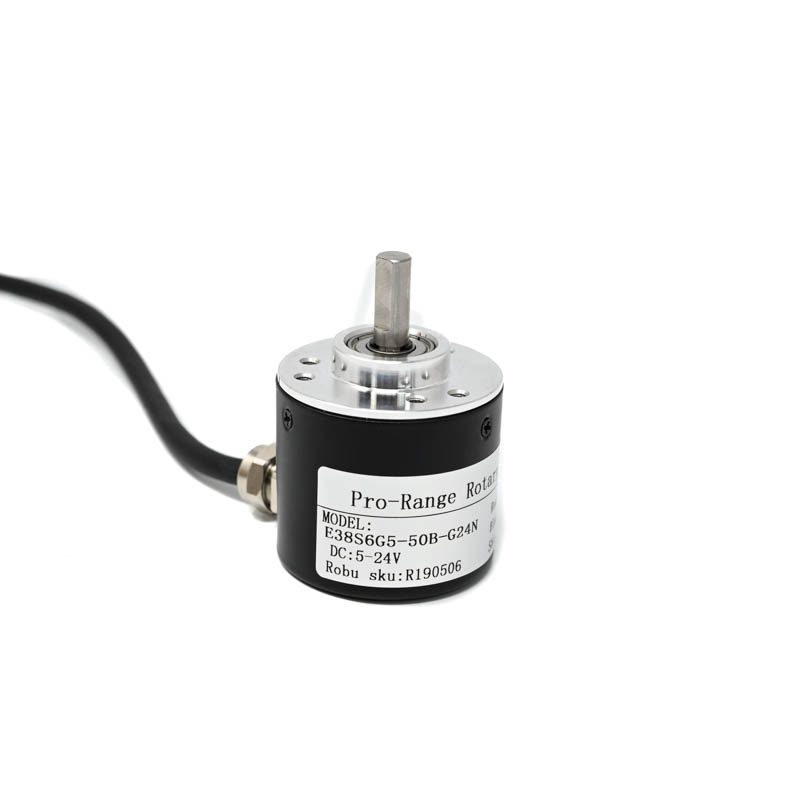

Pro-Range E38S6G5-50B-G24N Rotary Incremental Encoder - 38mm, Photoelectric, AB 2 Channels, 50 PPR
The Pro-Range E38S6G5-50B-G24N is a 38mm diameter rotary incremental encoder providing 50 pulses per revolution (PPR) via photoelectric sensing. It features AB quadrature output for precise direction and position feedback, compatible with 5-24V DC systems for integration into industrial PLCs, motor drives, and motion control platforms.
Features
- 50 PPR resolution for accurate rotational position feedback.
- Compact 38mm diameter design for space-constrained installations.
- Photoelectric sensing ensures reliable, non-contact signal generation.
- AB two-channel quadrature output for precise direction detection.
- Wide 5-24V DC operating voltage range for industrial compatibility.
Out of stock
The E38S6G5-50B-G24N encoder utilizes an infrared LED light source and a phototransistor array to generate precise quadrature signals through a patterned code disc. This photoelectric principle provides high immunity to electrical noise and ensures long-term reliability without mechanical contact wear.
Engineered for industrial motion control, the encoder’s robust construction supports high-speed operation up to 10,000 RPM. The AB phase-shifted outputs allow connected controllers to determine both rotational position and direction, essential for closed-loop servo systems, CNC machinery, and automated conveyor speed monitoring.
Additional Information
| Weight | 0.142 kg |
|---|---|
| Dimensions | 8.5 × 8.5 × 6.5 cm |
