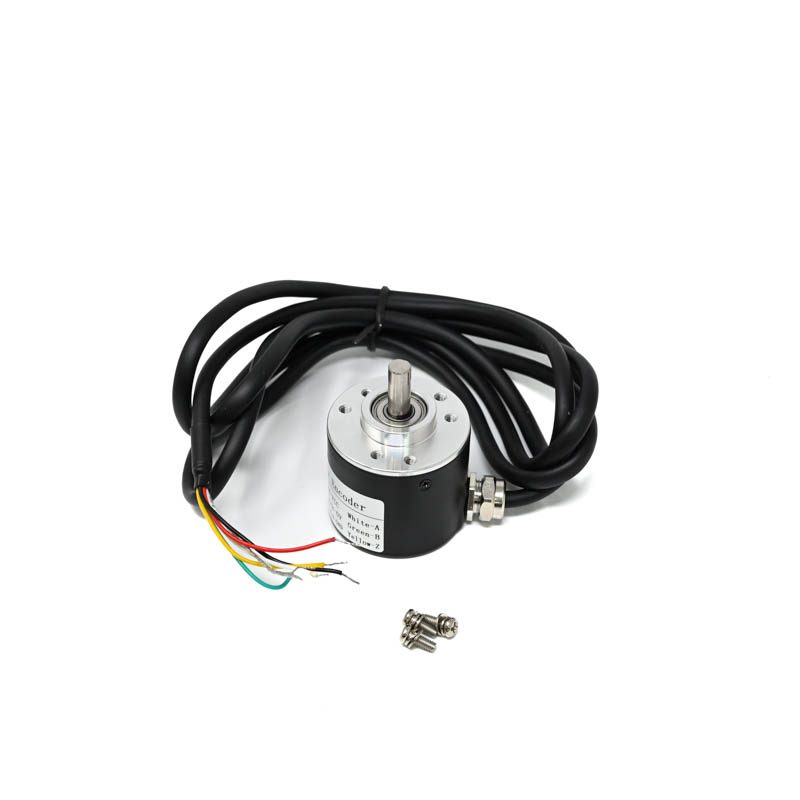

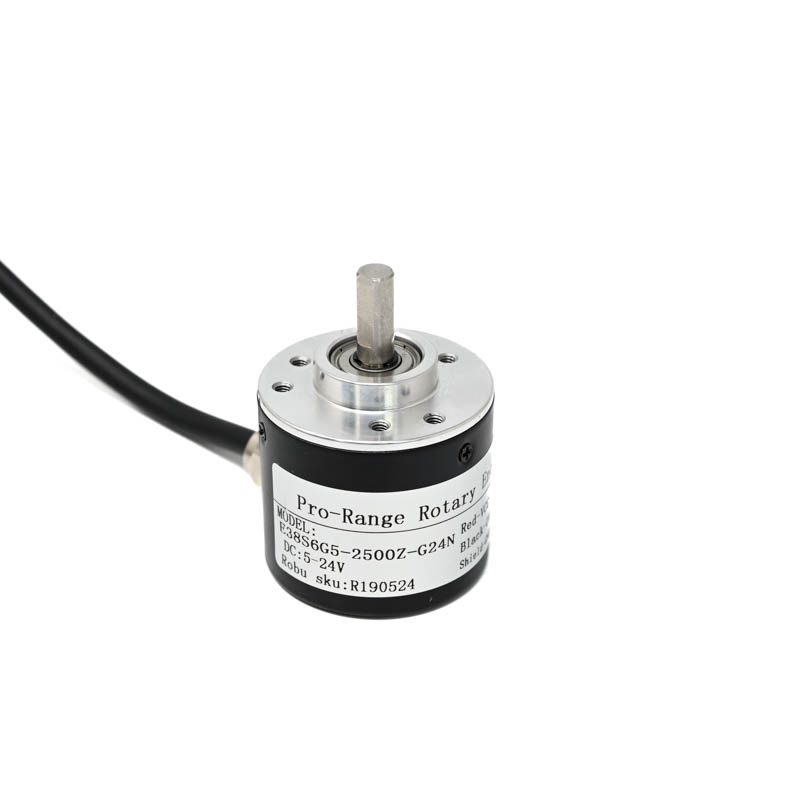

Pro-Range E38S6G5-2500Z-G24N Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 2500 PPR
The Pro-Range E38S6G5-2500Z-G24N is a compact 38mm diameter rotary incremental encoder delivering 2500 pulses per revolution (PPR) via photoelectric sensing. It provides ABZ 3-channel quadrature output for precise position and direction feedback, compatible with 5-24V DC industrial PLCs, motor drives, and robotic control systems.
Features
- High-resolution 2500 PPR for exceptional positional accuracy.
- Compact 38mm diameter design fits space-constrained installations.
- Photoelectric sensing ensures reliable, non-contact signal generation.
- ABZ 3-channel quadrature output (A, B, Z) for direction and index reference.
- Wide 5-24V DC operating voltage range for industrial compatibility.
Out of stock
This rotary incremental encoder utilizes a photoelectric sensing principle, where a light source and photodetector read a patterned disc to generate precise digital pulses. This non-contact method ensures long-term reliability and minimal mechanical wear, making it suitable for continuous operation in demanding environments.
The encoder outputs standard ABZ 3-channel signals: channels A and B provide quadrature pulses for determining both rotational position and direction, while the Z channel offers a single index pulse per revolution for absolute reference. Its robust construction and wide voltage input support seamless integration into motor speed control systems, CNC machinery, and automated positioning equipment.
Additional Information
| Weight | 0.142 kg |
|---|---|
| Dimensions | 8.5 × 8.5 × 6.5 cm |
