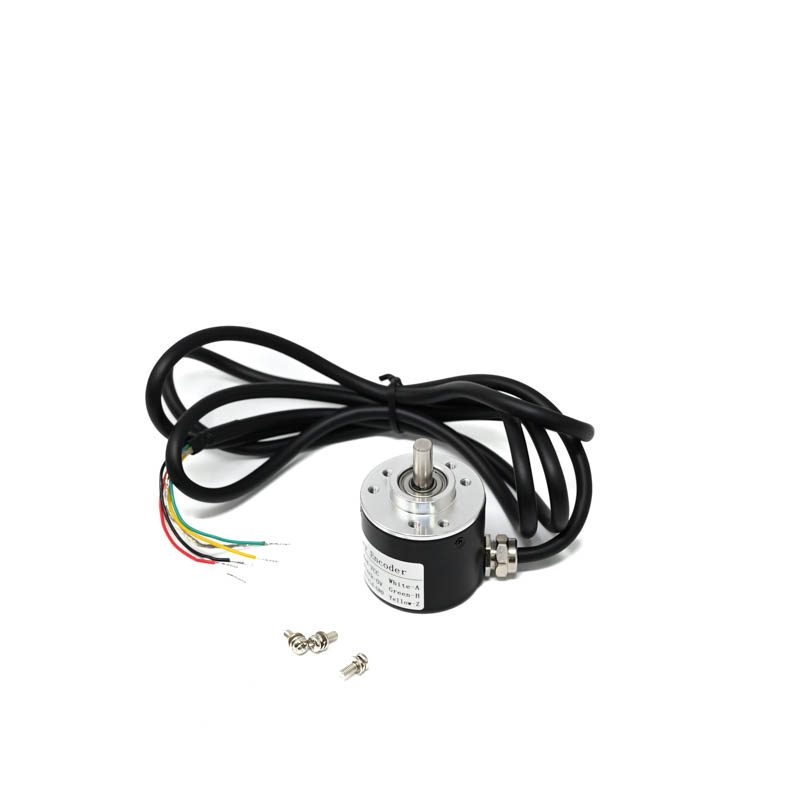

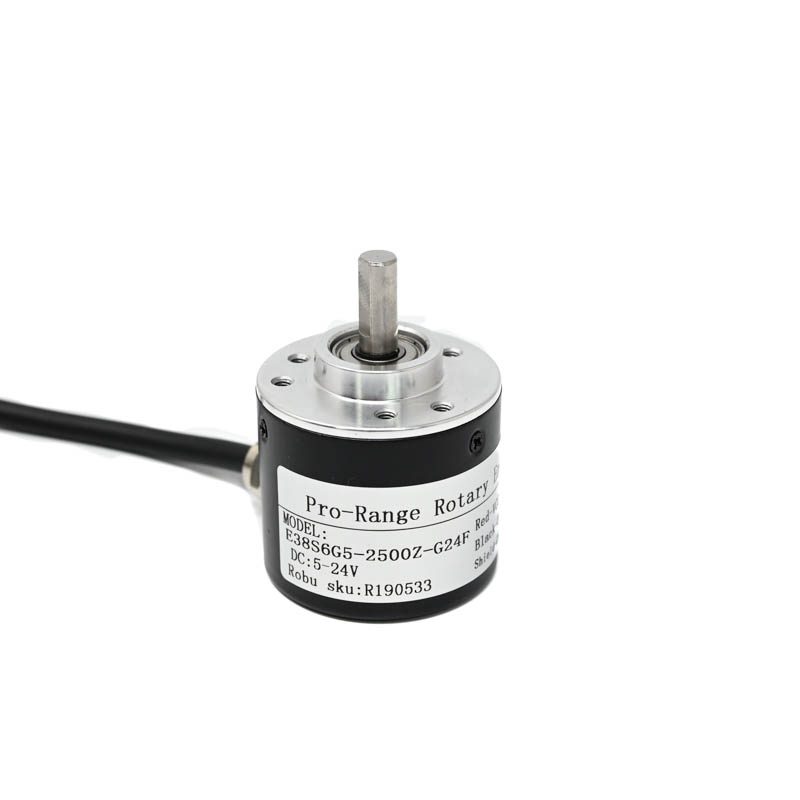

Pro-Range E38S6G5-2500Z-G24F Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 2500 PPR
The Pro-Range E38S6G5-2500Z-G24F is a 38mm diameter rotary incremental encoder delivering 2500 PPR resolution via photoelectric sensing. It provides ABZ 3-channel quadrature output for precise position and direction feedback, compatible with 5-24V DC industrial PLCs, motor drives, and robotic control systems.
Features
- 2500 Pulses Per Revolution (PPR) for high-resolution position feedback.
- Photoelectric sensing principle ensures reliable, non-contact signal generation.
- ABZ 3-channel output (A, B quadrature and Z index) for direction and reference.
- Wide operating voltage range of 5 to 24V DC for flexible system integration.
- Compact 38mm diameter housing with robust construction for industrial durability.
Out of stock
The E38S6G5-2500Z-G24F encoder utilizes a photoelectric disc and sensor pair to generate precise digital pulses corresponding to shaft rotation. The A and B channels produce quadrature signals 90 degrees out of phase, enabling accurate determination of rotational direction and incremental position. The Z channel provides a single reference pulse per revolution for homing or absolute position reset.
Built for demanding environments, its sealed housing protects the internal optics from dust and contaminants. With a rated speed of 6000 RPM and a wide 5-24V DC supply range, it is engineered for integration into servo motors, CNC machinery, automated conveyors, and robotic joint feedback systems requiring reliable, high-resolution angular measurement.
Additional Information
| Weight | 0.143 kg |
|---|---|
| Dimensions | 8.5 × 8.5 × 6.5 cm |
