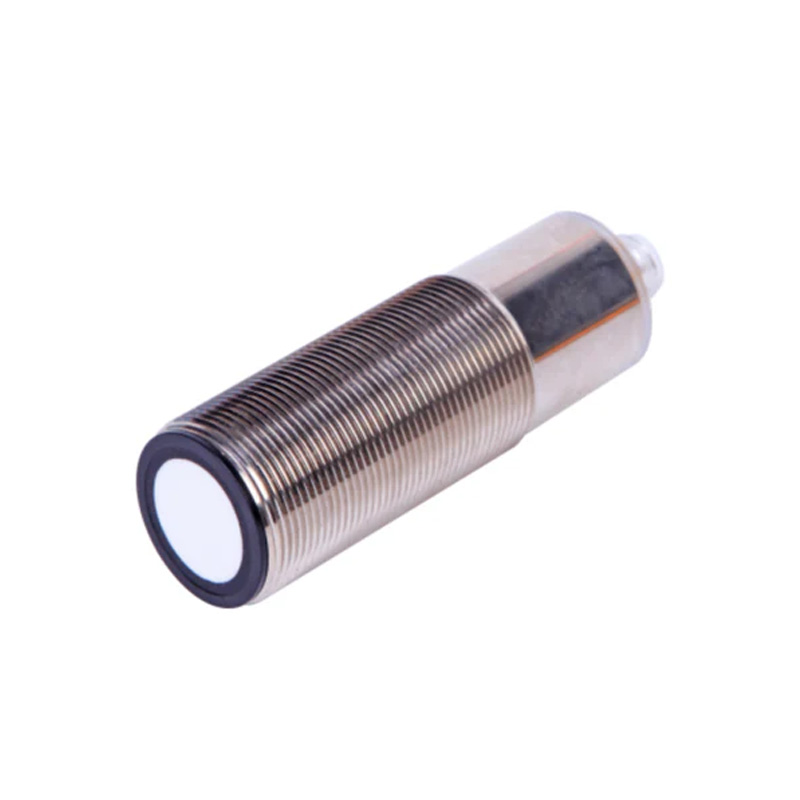

PONO 30GM85-2000-I Ultrasonic Distance Sensor, 4-20mA Output, 15-30VDC, M12 Connector, IP67, Range: 180mm-2000mm
The PONO 30GM85-2000-I is an industrial-grade ultrasonic distance sensor delivering a stable 4-20mA analog output for seamless integration with PLCs, industrial controllers, and data acquisition systems. It provides precise non-contact measurement from 180mm to 2000mm, housed in a robust M30 body with IP67 protection for demanding environments.
Features
- Industrial 4-20mA analog output for direct PLC and controller interface.
- Wide sensing range from 180mm to 2000mm with ±1% FS accuracy.
- Robust M30 housing with IP67 rating for dustproof and waterproof operation.
- Fast ≤50ms response time and 10Hz update rate for real-time monitoring.
- Built-in temperature compensation ensures stable performance across varying conditions.
Out of stock
The PONO 30GM85-2000-I utilizes ultrasonic wave technology for reliable, non-contact distance measurement. Its analog 4-20mA output provides a linear representation of the measured distance, making it directly compatible with standard industrial control inputs without additional signal conditioning. The sensor operates from a 15-30VDC supply, typical for 24V industrial systems.
Engineered for durability, the sensor’s IP67-rated M30 housing protects internal electronics from dust, water jets, and temporary immersion, suitable for harsh factory floors, washdown areas, and outdoor installations. The integrated temperature compensation circuit minimizes measurement drift caused by ambient temperature fluctuations, ensuring consistent accuracy from -25°C to +70°C.
Additional Information
| Weight | 0.12 kg |
|---|---|
| Dimensions | 10 × 3 cm |
