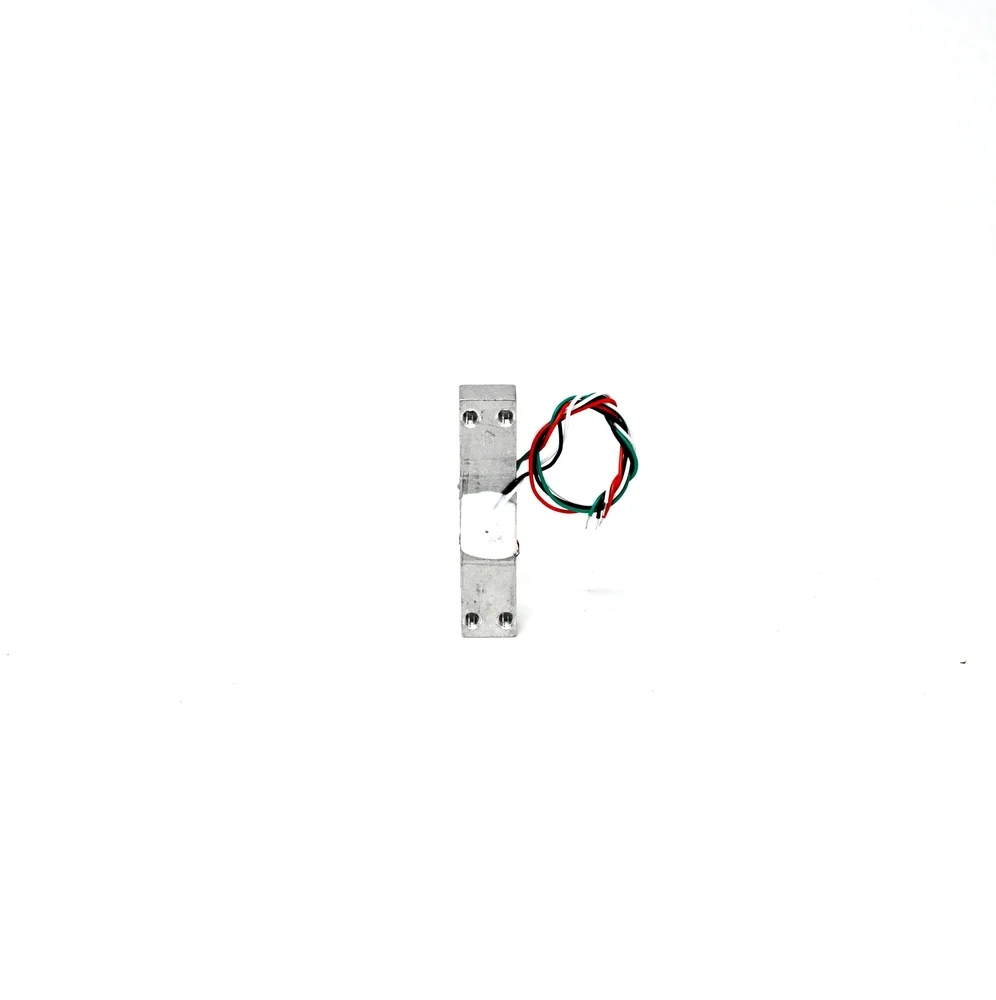

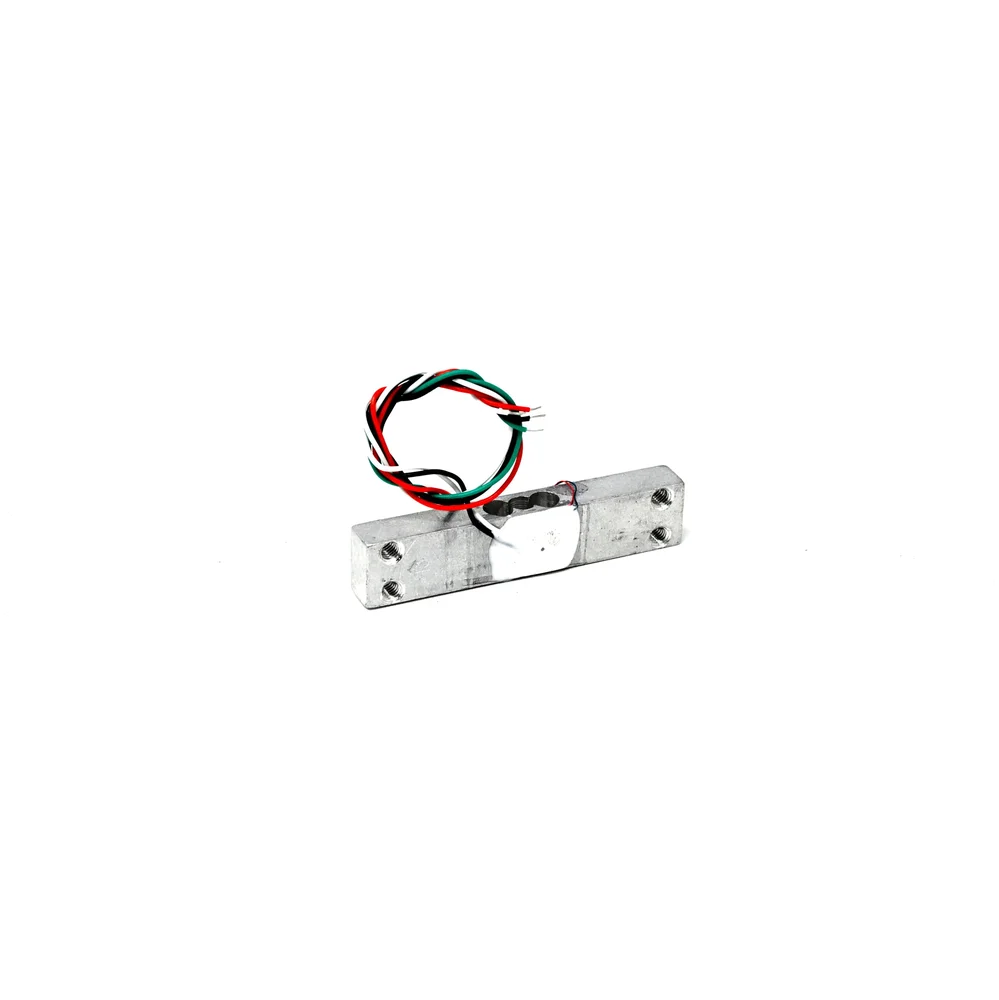

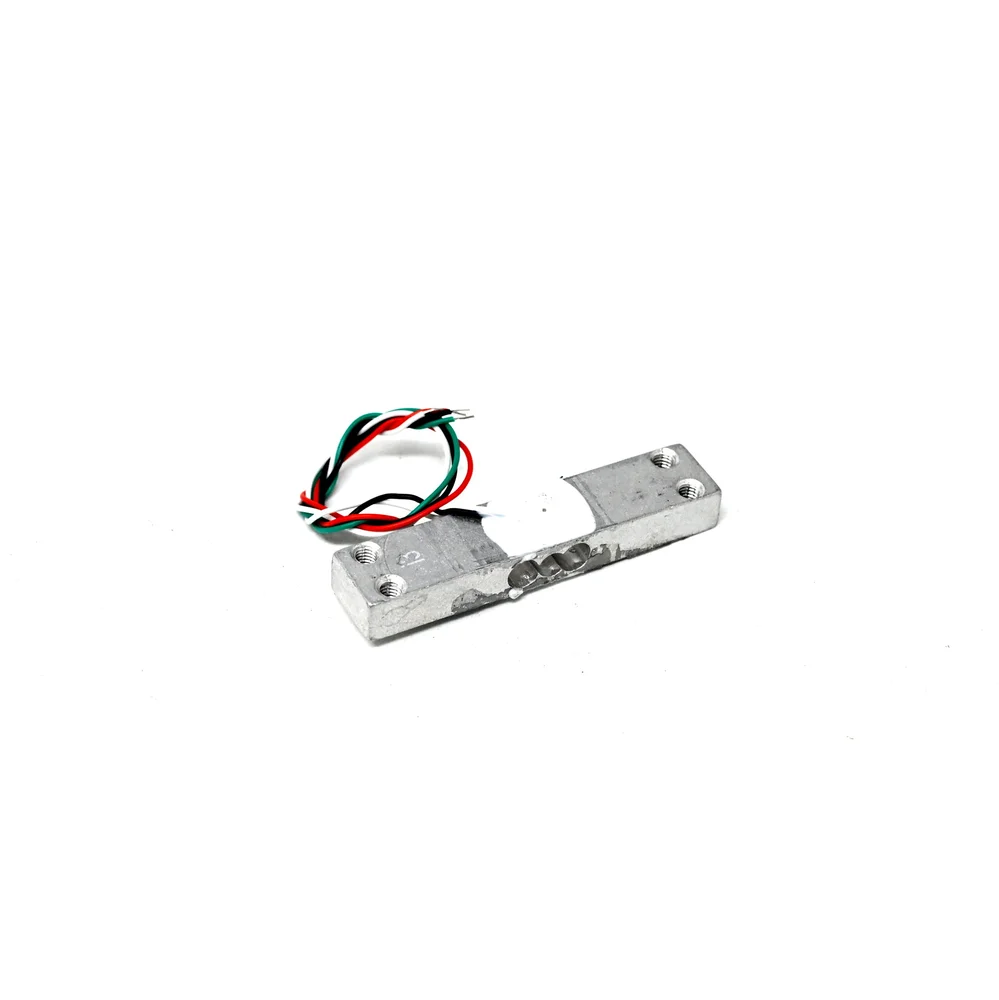

Phaeton CZL-i2000 1-2KG Weighing Load Cell - Screw-Fastened
The Phaeton CZL-i2000 is a screw-fastened load cell sensor designed for precise weight measurement in the 1-2 kg range, featuring a 1.0±0.2 mV/V output sensitivity for integration into industrial scales, process control systems, and automated packaging equipment.
Features
- Precision 1-2 kg weighing range for accurate force measurement.
- High output sensitivity of 1.0±0.2 mV/V ensures reliable signal strength.
- Screw-fastened design provides robust mechanical stability and easy installation.
- Compact form factor enables integration into space-constrained equipment.
- Standard 4-wire configuration (Red, Green, Black, White) for straightforward connection to instrumentation amplifiers.
Out of stock
The CZL-i2000 load cell operates on the strain gauge principle, where applied force causes a measurable change in electrical resistance. This change is converted into a low-level millivolt-per-volt (mV/V) output signal proportional to the load, providing high accuracy and repeatability for precision weighing applications.
Constructed for industrial durability, its screw-fastened mounting ensures secure attachment and minimizes mechanical drift. The sensor is designed for stable performance across its operational range, making it suitable for integration into process control loops, bench scales, and force monitoring systems requiring reliable 1-2 kg measurement.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 9 × 7 × 3 cm |
