Pro-Range GPB160 10N 3-Axis Multi-Direction Load Cell Sensor, ±0.1mV/V, ±0.2%F.S, 10VDC, IP65

The GPB160 operates with a recommended excitation voltage of 5 to 10 VDC, with an absolute maximum of 18 VDC. Applying voltage within the 5-10VDC range ensures optimal sensor performance and rated output accuracy.

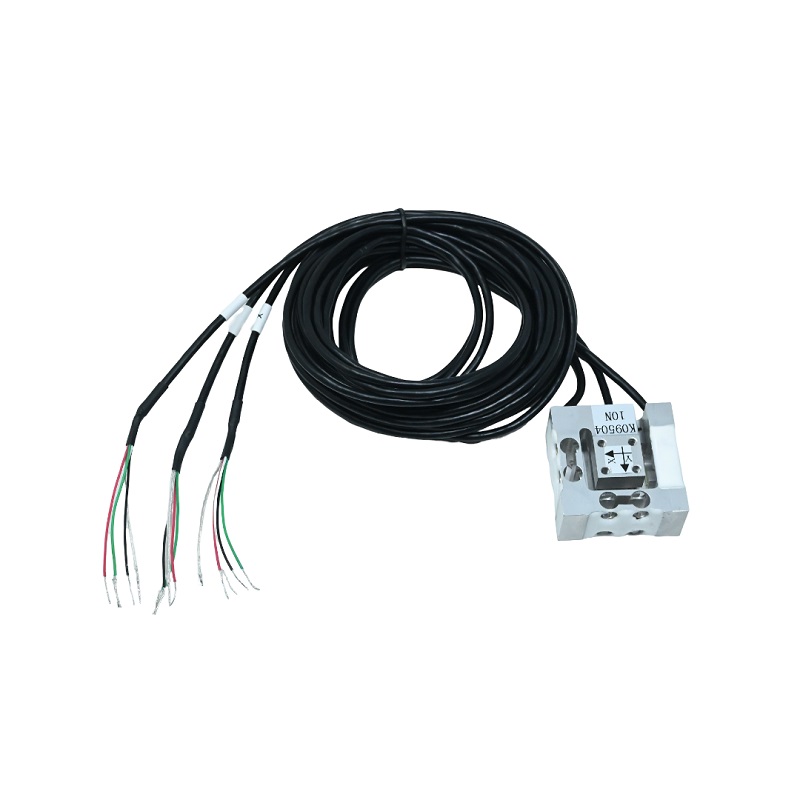

The shielded cable typically includes wires for excitation voltage (Ex+, Ex-), signal output (Sig+, Sig-), and a shield for grounding. Connect the red and black wires to your power supply's positive and negative terminals for excitation. The green and white wires provide the differential millivolt output signal to your amplifier or DAQ system. The shield should be connected to ground at the instrumentation end to minimize noise.

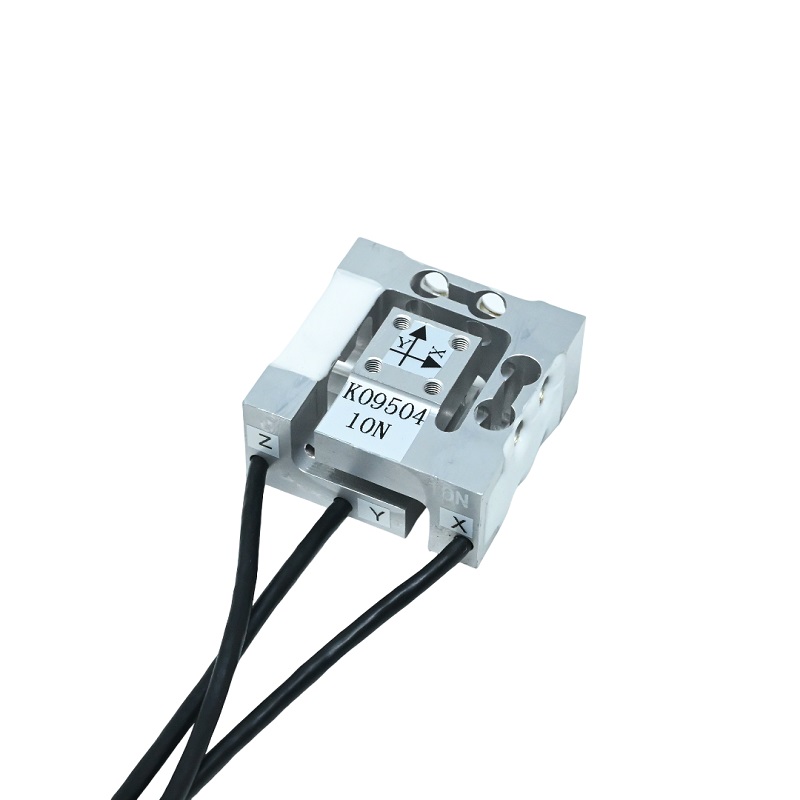

Yes, the GPB160 is a true 3-axis load cell. It contains internal strain gauge bridges configured to provide independent electrical outputs corresponding to the force components applied along the X, Y, and Z axes. This allows for full Vector Technics analysis of an applied load.

This specification indicates the sensor's comprehensive error, which includes combined effects of non-linearity, hysteresis, and repeatability, is within ±0.2% of its Full Scale (F.S.) value. For a 10N sensor, this means the maximum error across its operating range is ±0.02N, ensuring high measurement precision.

With its IP65 rating, the sensor is protected against dust ingress and low-pressure water jets from any direction. It is suitable for use in damp industrial environments or outdoors where it is sheltered from direct, high-pressure water exposure or prolonged immersion.
