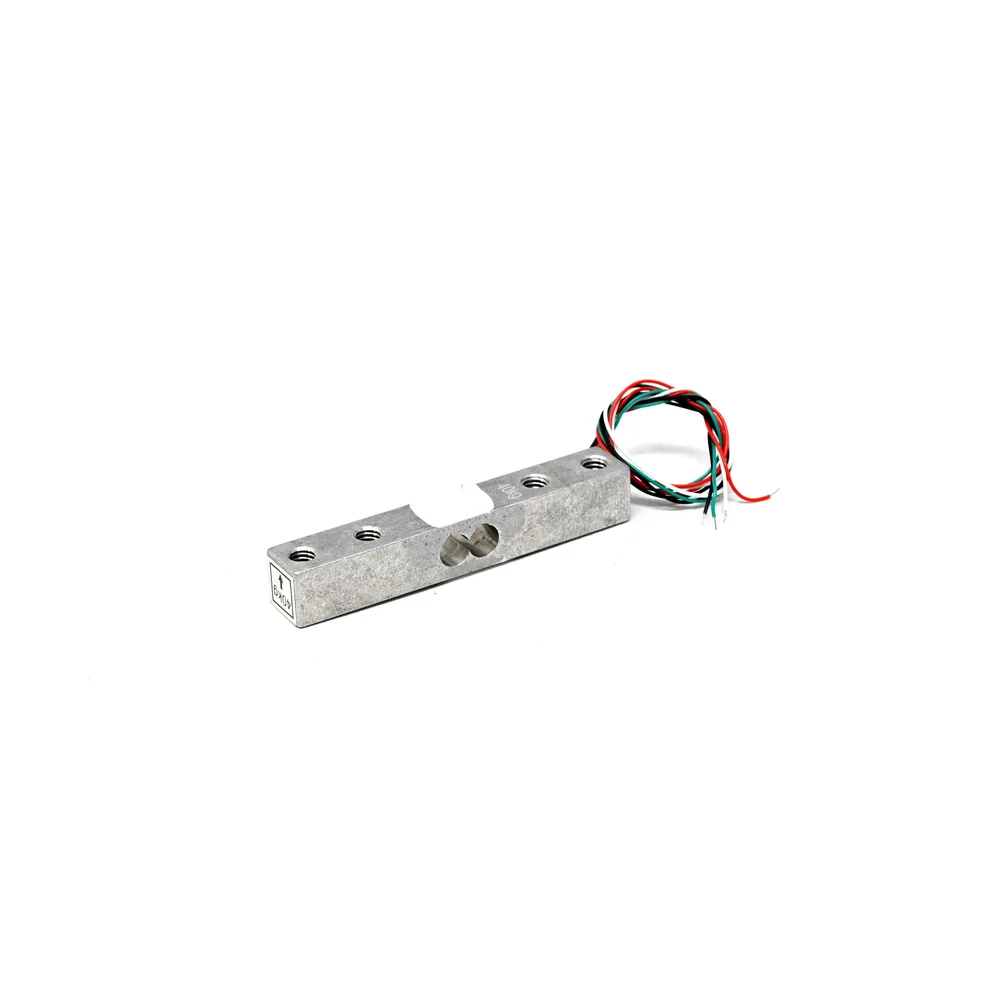

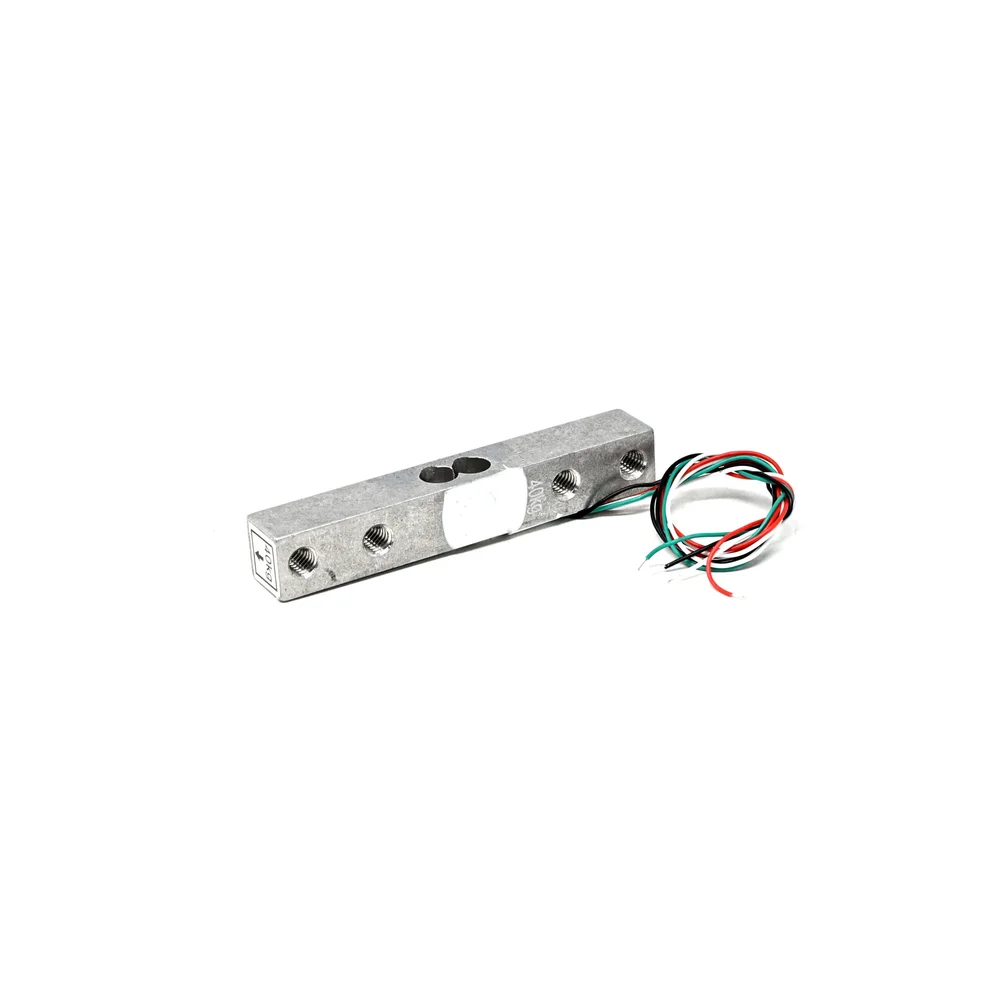

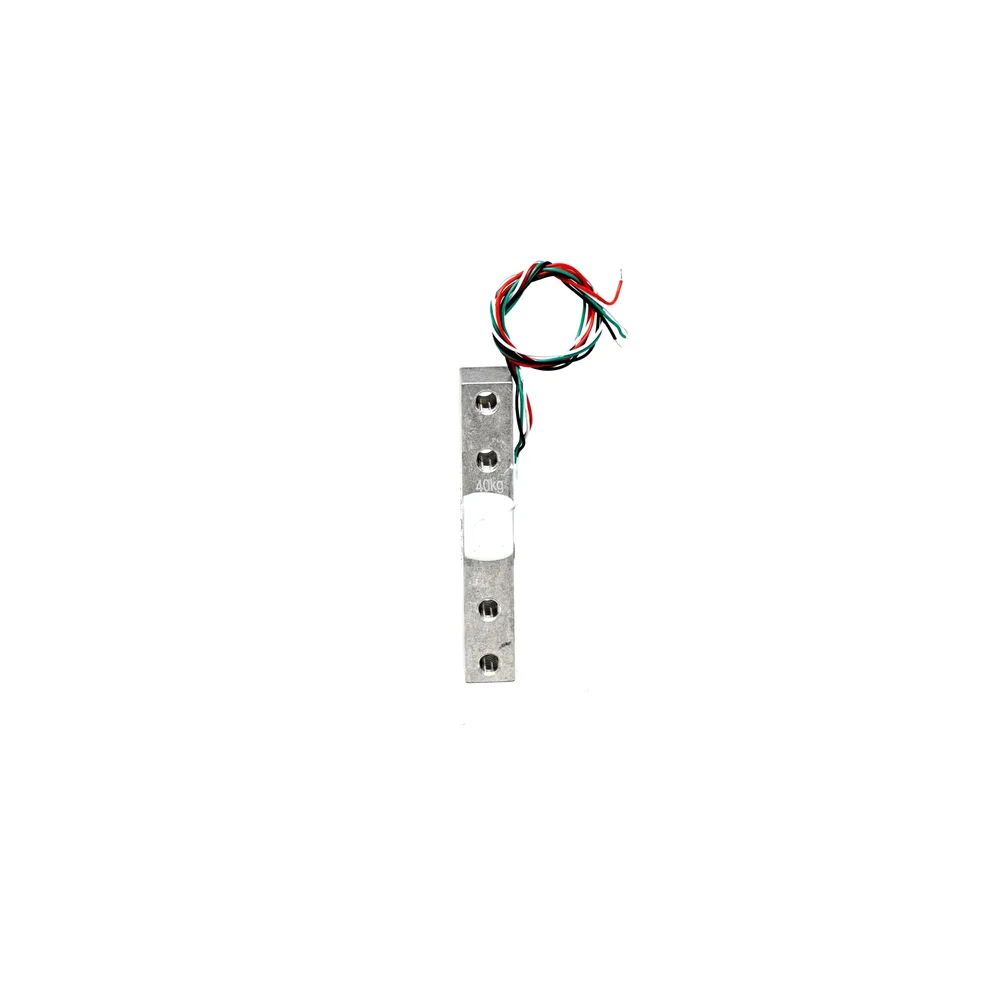

Phaeton 613 N Load Cell Sensor 40KG - Screw-Fastened Strain Gauge
The Phaeton 613 N is a 40 kg capacity, screw-fastened load cell sensor with a 1.5±0.2mV/V output sensitivity, designed for precise weight measurement in industrial scales, process control, and force monitoring systems.
Features
- 40 kg (approx. 392 N) compressive/tensile force measurement range.
- High output sensitivity of 1.5±0.2mV/V for accurate signal generation.
- Screw-fastened mounting design for robust and stable mechanical installation.
- Low output impedance of 1000±10 ohms for compatibility with standard instrumentation amplifiers.
- Compact form factor (approx. 11 cm length) for integration into space-constrained equipment.
Out of stock
The Phaeton 613 N is a resistive strain gauge load cell engineered for precise force and weight measurement up to 40 kg. Its robust, screw-fastened construction provides a stable mechanical interface, ensuring reliable performance in industrial weighing platforms, process batching systems, and test stands.
The sensor operates on the Wheatstone bridge principle, delivering a millivolt-level output signal proportional to the applied load. With a specified sensitivity of 1.5±0.2mV/V and low impedance, it is designed for direct interfacing with common signal conditioners and industrial PLC analog input modules, providing consistent, drift-resistant readings.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 11 × 3 × 3 cm |
