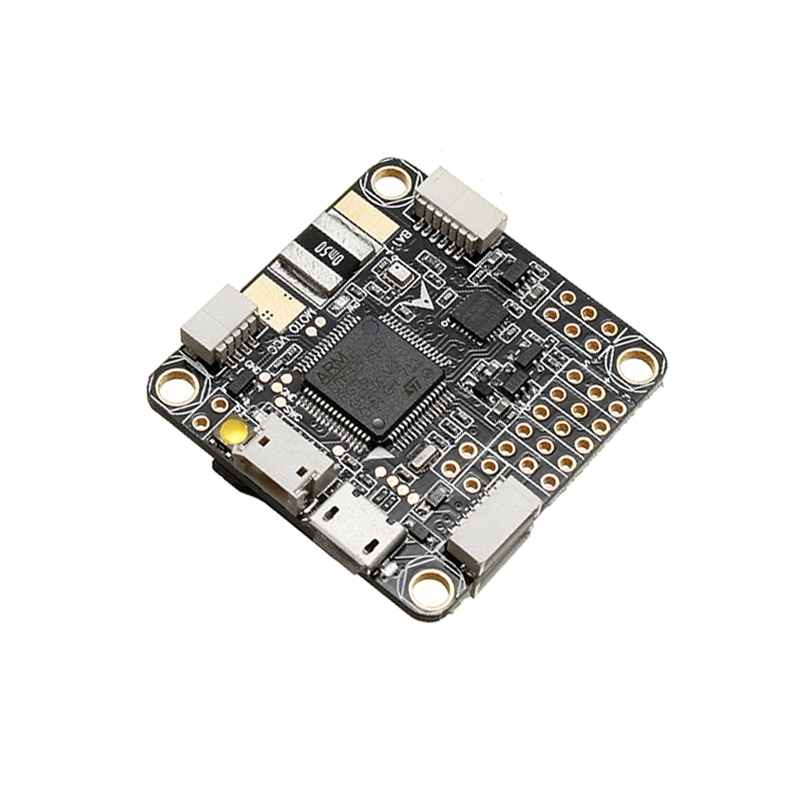

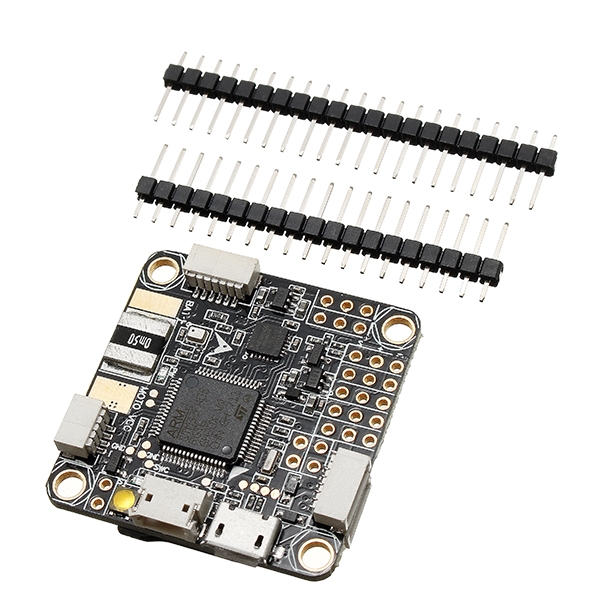

OMNIBUS F4 Pro V3 Flight Controller
The OMNIBUS F4 Pro V3 is a feature-rich STM32 F403-based flight controller designed for high-integration FPV drone builds, offering Betaflight compatibility, a built-in current/voltage sensor, and an integrated SD card slot for Blackbox logging.
Features
- STM32 F403 MCU with MPU6000 SPI gyro/accelerometer for precise flight control.
- Integrated current and voltage sensor with dedicated pins for RSSI and buzzer.
- Onboard Micro SD card slot for high-speed Blackbox data logging.
- SmartAudio V2 support for VTX control and D-Shot ESC protocol compatibility.
- 35x35mm footprint with 30.5mm mounting holes and 5V/3A BEC with LC filter.
Out of stock

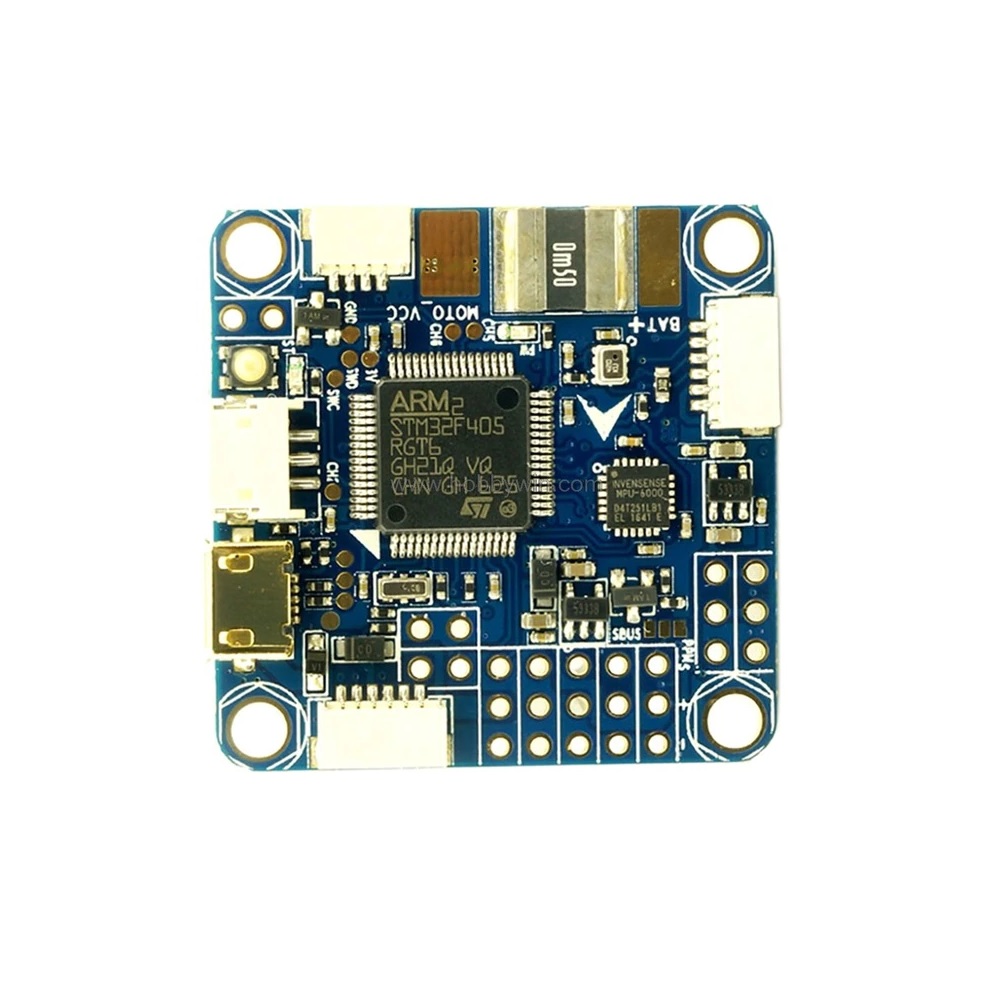

The OMNIBUS F4 Pro V3 Flight Controller is a community-driven evolution of the popular OMNIBUS F4 platform, engineered for clean, high-performance FPV quadcopter builds. Its core is the robust STM32 F403 microcontroller paired with an MPU6000 inertial measurement unit via SPI bus, ensuring low-latency, accurate flight data processing for acrobatic and racing applications.

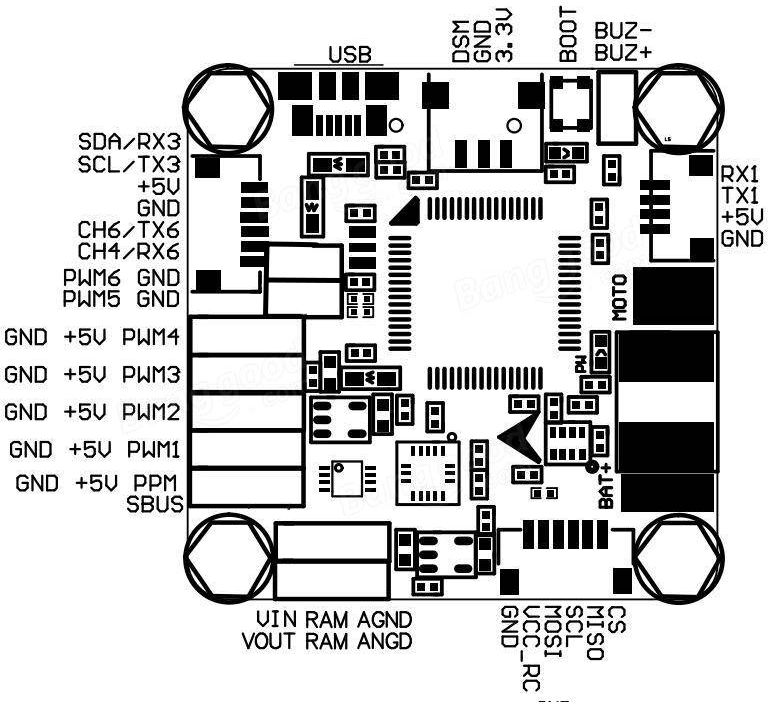

Designed for direct battery power input, the board simplifies wiring with dedicated pin holes for all critical connections, including ESC signals, SmartAudio, and telemetry. The integrated 5V/3A BEC with LC filtering provides stable, clean power to peripherals like FPV cameras and video transmitters, reducing electrical noise in the video feed.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 3.6 × 3.6 × 0.7 cm |
