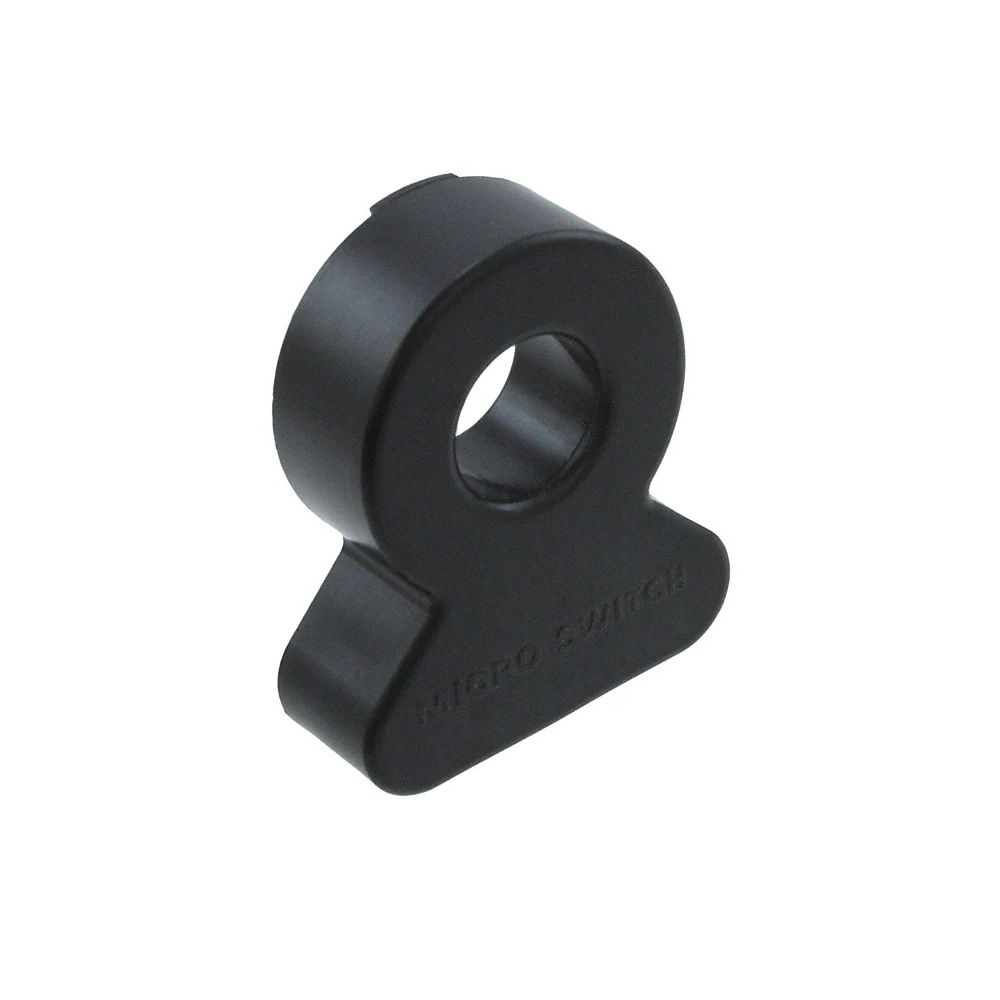

Honeywell CS Series -100A to 100A Hall Effect Current Sensor Module
The Honeywell CS Series Hall Effect Current Sensor Module provides isolated, ratiometric voltage output for precise DC and AC current measurement from -125A to +125A. Designed for PCB mounting, it is compatible with motor drives, power management systems, and industrial instrumentation requiring fast 3µs response.
Features
- Open-loop Hall effect transducer for measuring AC/DC currents from -125A to +125A.
- Ratiometric voltage output with 29.7 mV/A sensitivity for direct ADC interfacing.
- Fast 3µs response time suitable for dynamic load monitoring and protection circuits.
- Wide 6-12V DC supply range with output voltage isolation from the primary conductor.
- PET polyester housing rated for operation from -25°C to 85°C.
Out of stock
The Honeywell CS Series sensor utilizes a linear output Hall effect transducer (LOHETâ„¢) assembled within a compact, PCB-mountable housing. The through-hole design allows the primary conductor to pass through the sensor aperture, creating a magnetic field proportional to the current, which is then converted into an isolated, linear voltage signal. This non-contact method ensures minimal energy dissipation and is not limited by conductor size.
Engineered with built-in temperature compensation, the module delivers reliable and accurate performance across its full operating temperature range. Its ratiometric output simplifies integration with microcontrollers and data acquisition systems, providing a cost-effective solution for precise current sensing in demanding electrical environments.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 6 × 8 × 3 cm |
