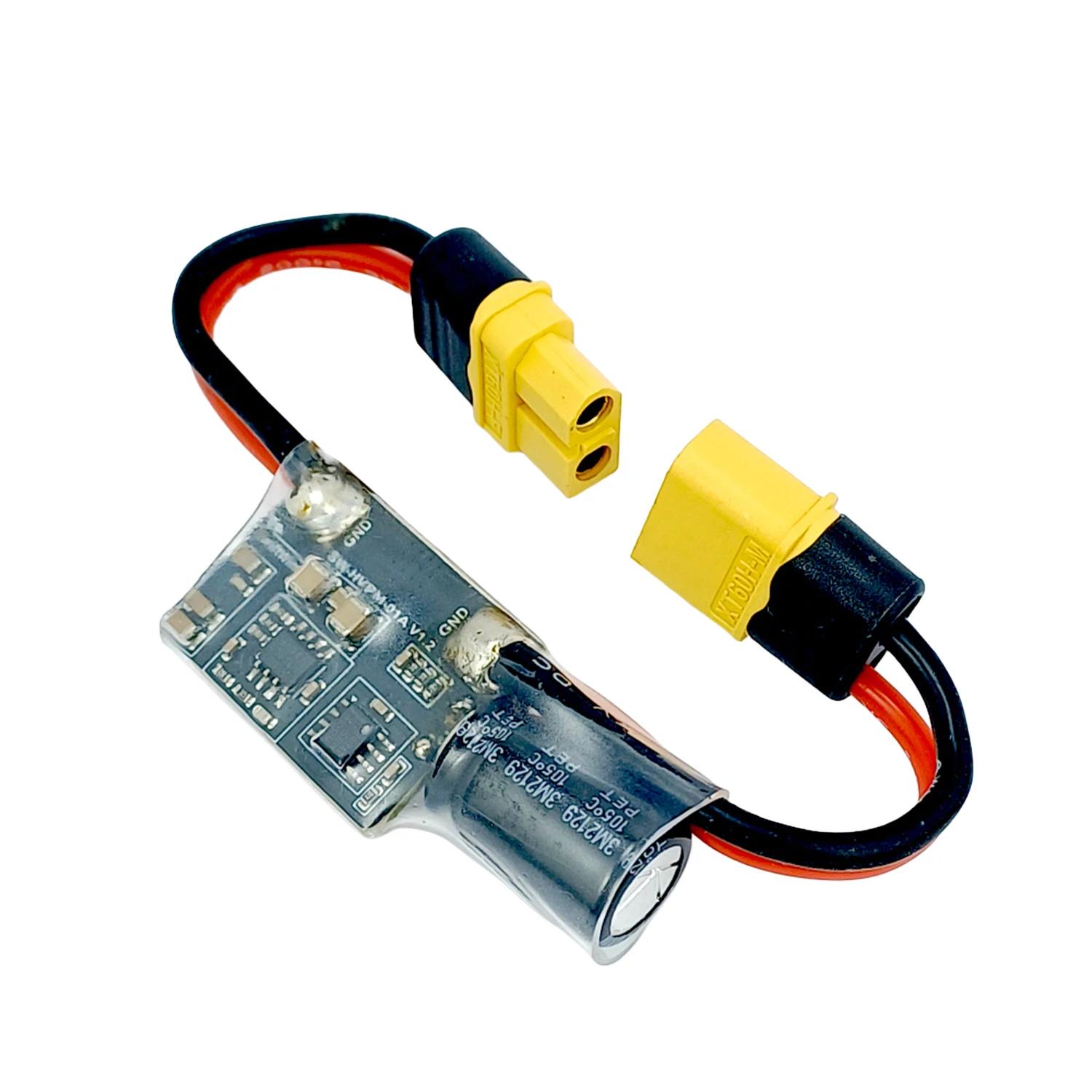

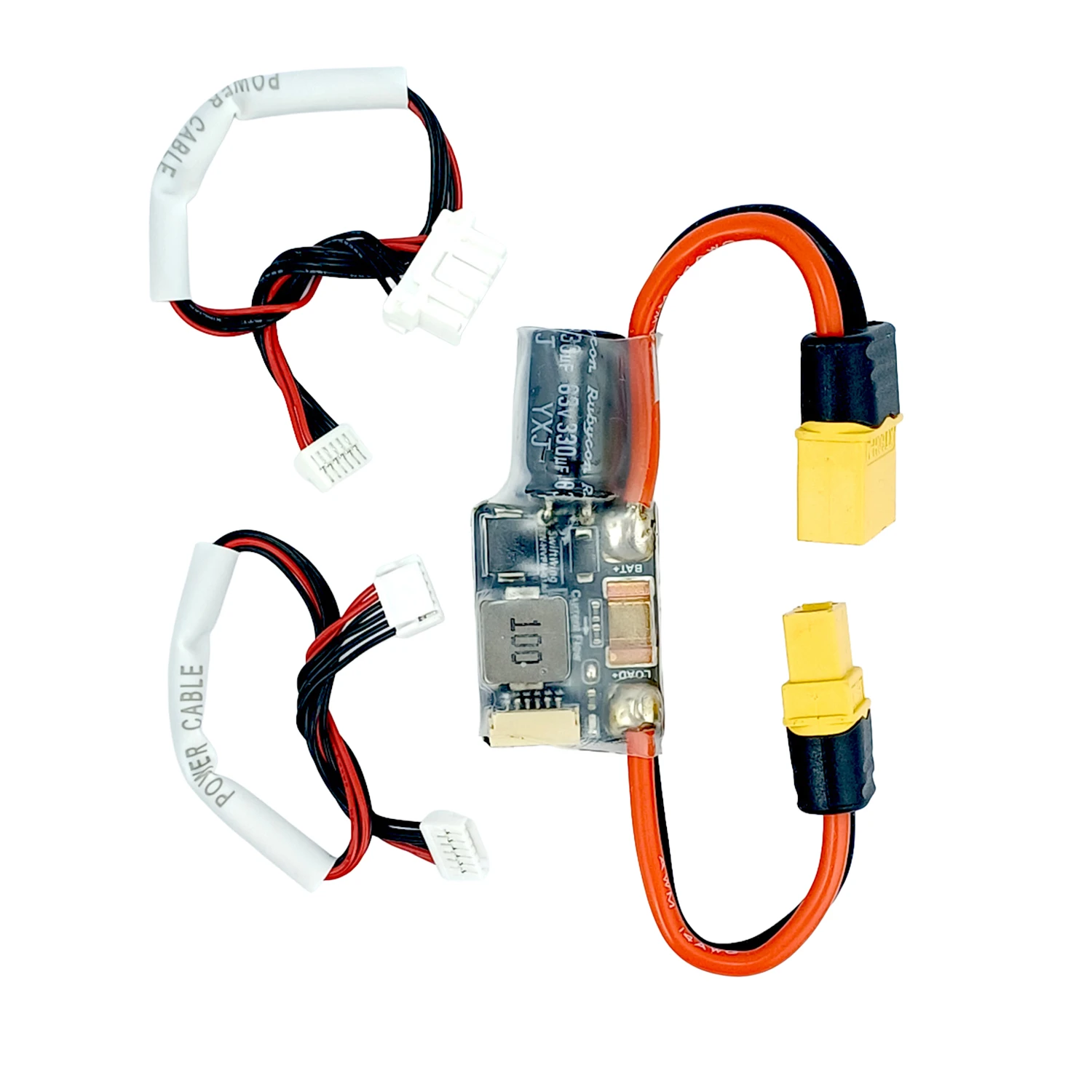

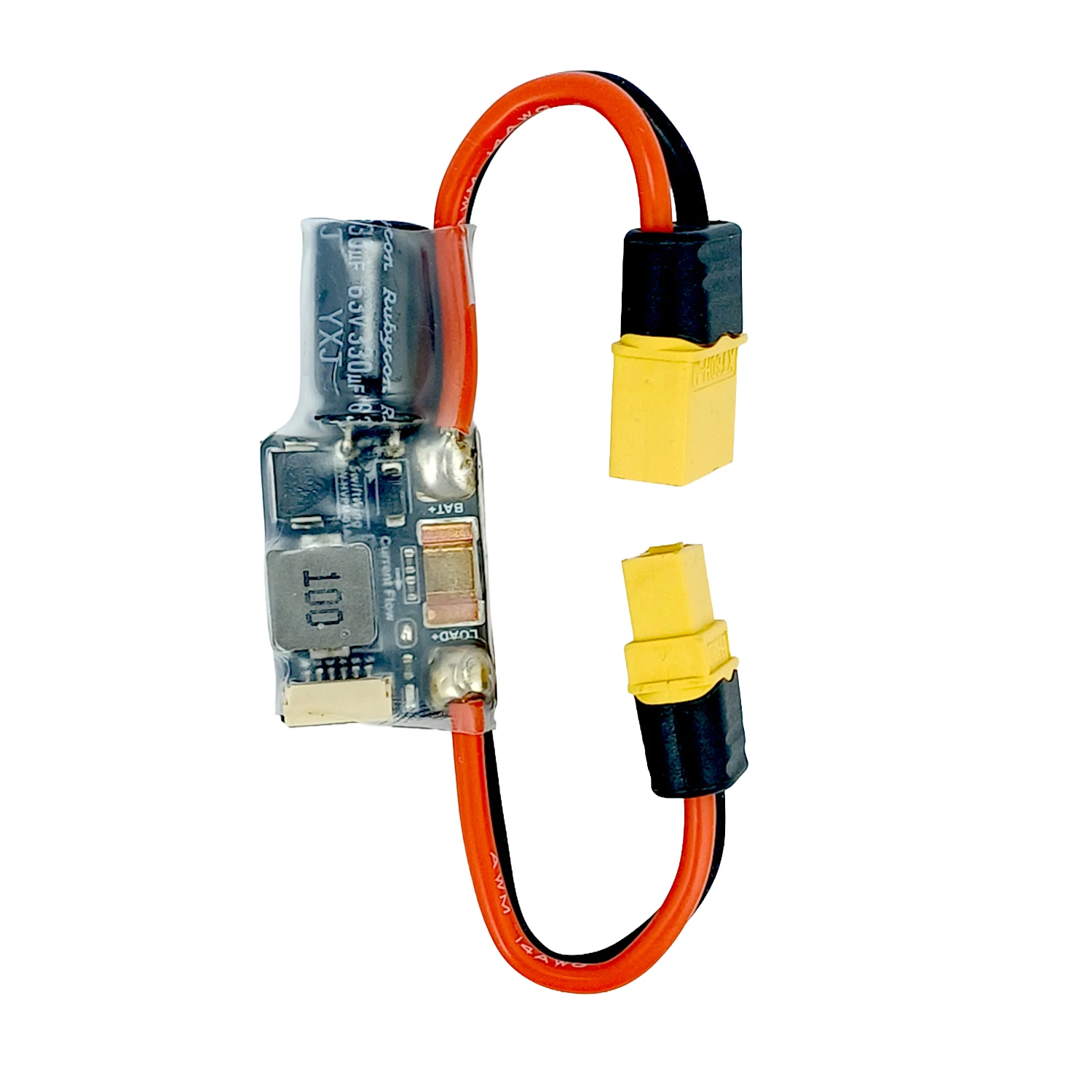

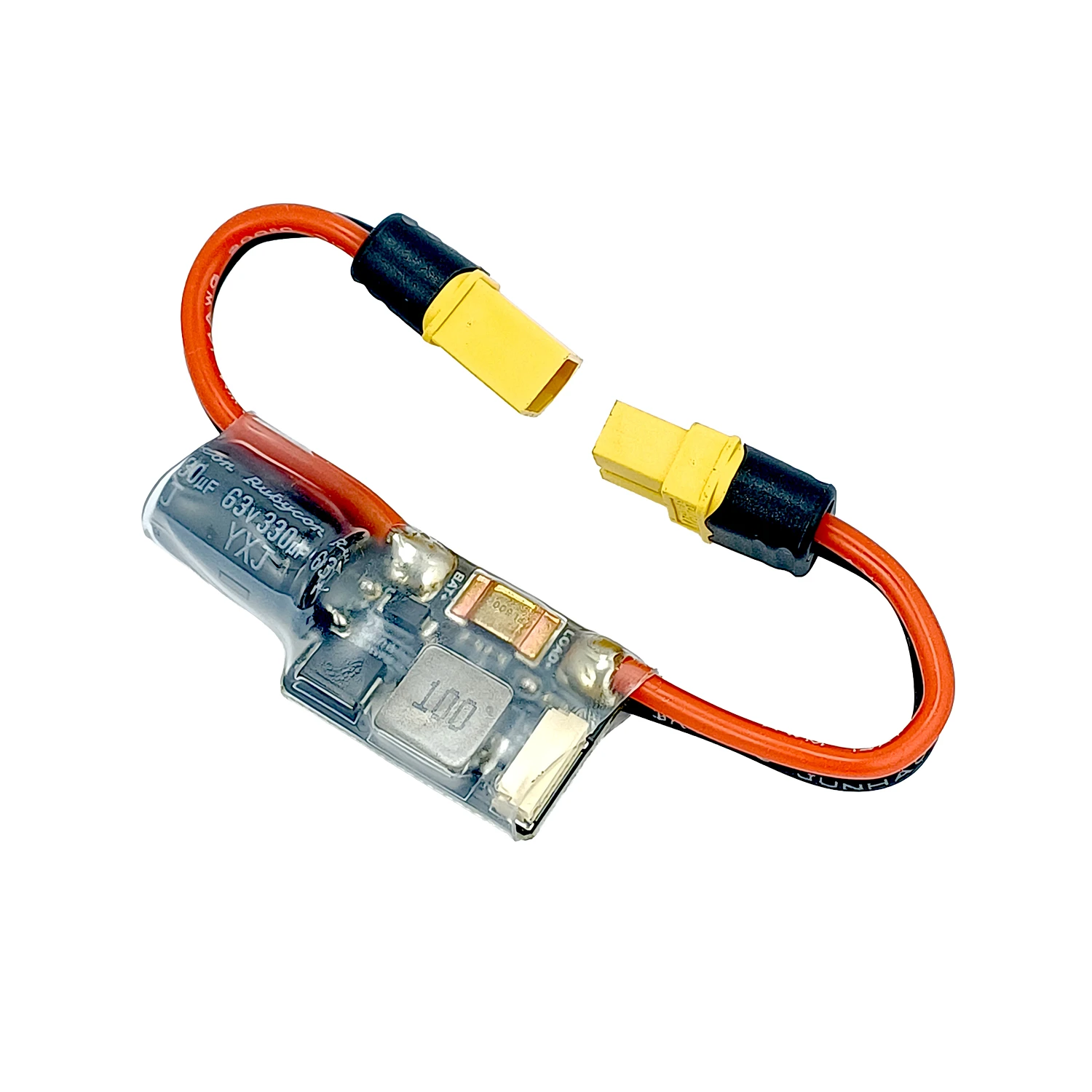

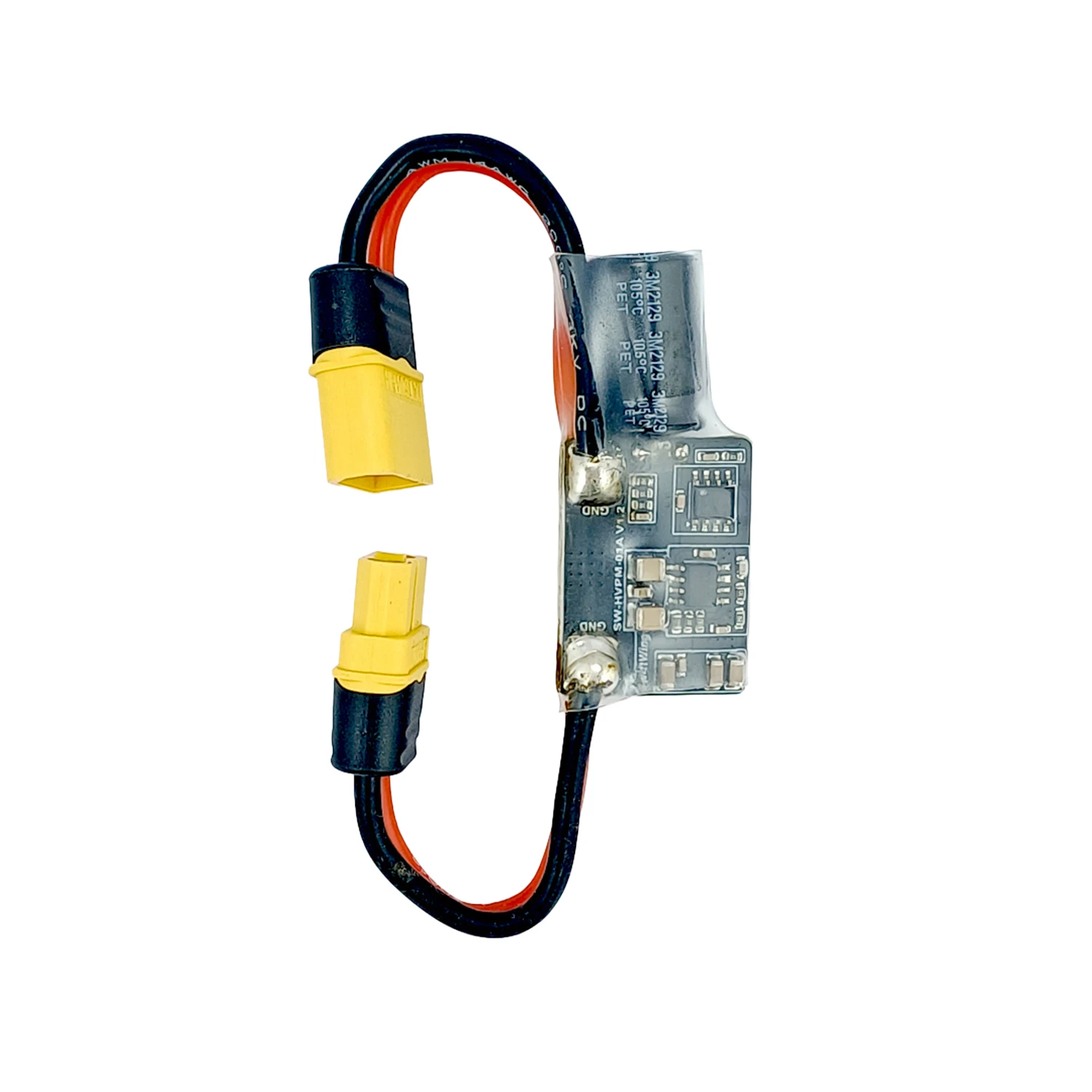

SwiftWing HVPM-01A High Voltage Analog Power Module (2S–14S, 60V) for ArduPilot & PX4
The SwiftWing HVPM-01A is a high-voltage analog power module designed for ArduPilot and PX4 flight control systems, supporting 2S to 14S LiPo batteries (9–60V) and providing a stable 5.3V BEC output for onboard electronics.
Features
- High-voltage input range supports 2S to 14S LiPo batteries (9V–60V DC).
- Integrated precision shunt sensor for accurate voltage and current monitoring (±2% accuracy).
- Stable 5.3V BEC output rated for 3A continuous and 5A peak current.
- Robust construction with Rubycon low-ESR capacitor and TVS protection for voltage spikes.
- Compact inline XT60 form factor for easy integration into multirotor, VTOL, and fixed-wing UAVs.
Out of stock
The SwiftWing HVPM-01A is engineered for demanding UAV applications requiring reliable high-voltage power monitoring and regulation. Its core function is to provide a clean, stable 5.3V supply to flight controllers and peripherals while delivering precise, real-time telemetry data on battery voltage and system current draw back to the ArduPilot or PX4 stack. This enables critical in-flight power management and battery health monitoring.
Built around a high-precision shunt resistor and a low-resistance current path, the module ensures minimal power loss and accurate measurement even under high dynamic loads. The inclusion of a high-quality Rubycon low-ESR capacitor and Transient Voltage Suppression (TVS) diode protects sensitive flight electronics from voltage spikes and ensures stable operation across the full -10°C to +60°C temperature range.
Additional Information
| Weight | 0.038 kg |
|---|---|
| Dimensions | 12 × 9 × 2 cm |
