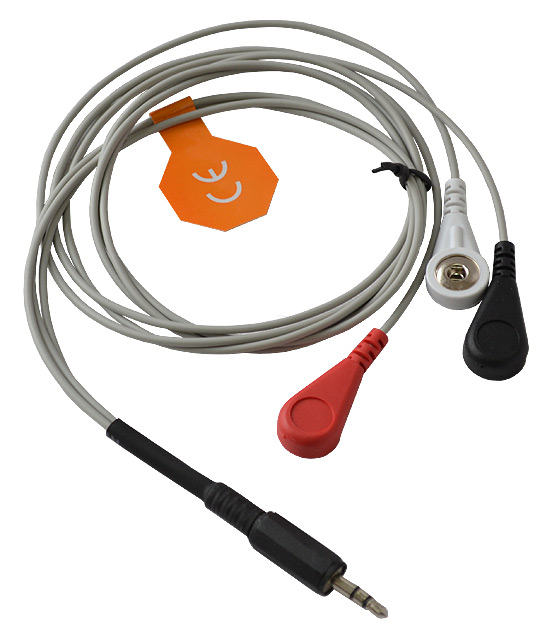

Olimex SHIELD-EKG-EMG-PRO ECG EMG Bio-Signal Shield - Electrode Cable
The Olimex SHIELD-EKG-EMG-PRO is a dedicated electrode cable assembly designed for use with the Olimex SHIELD-EKG-EMG bio-signal shield, providing a reliable interface for high-fidelity ECG and EMG signal acquisition with Arduino-compatible platforms and other microcontroller systems.
Features
- Custom-molded, labeled cable for secure connection to gel ECG electrodes.
- Approximately 80 cm length for flexible patient positioning and setup.
- Direct compatibility with the Olimex SHIELD-EKG-EMG bio-signal shield.
- Enables professional-grade biopotential measurements (ECG/EMG).
- Optimized for low-noise signal transmission to the shield’s instrumentation amplifier.
Out of stock
The SHIELD-EKG-EMG-PRO is an accessory cable that completes the signal chain for the Olimex bio-signal shield. It terminates in standard snap connectors for disposable gel electrodes, ensuring a stable, low-impedance connection critical for capturing microvolt-level biopotential signals from the human body. The pre-labeled and molded design simplifies correct electrode placement according to standard lead configurations.
This cable is engineered to maintain signal integrity over its length, minimizing interference pickup. When used with the dedicated Olimex shield, which features high-input-impedance instrumentation amplifiers and filtering, it forms a complete system suitable for prototyping medical-grade heart rate monitors, muscle activity (EMG) analyzers, and other biomedical sensing applications requiring precise analog front-end conditioning.
Additional Information
| Weight | 0.115 kg |
|---|---|
| Dimensions | 7 × 7 × 3 cm |
