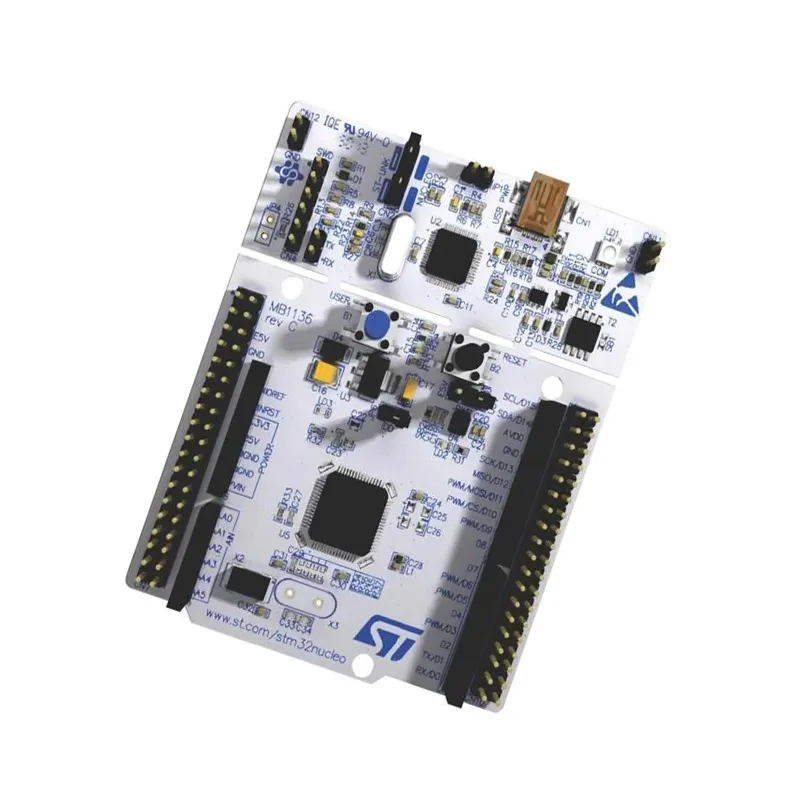

STMicroelectronics NUCLEO-F446RE Development Board

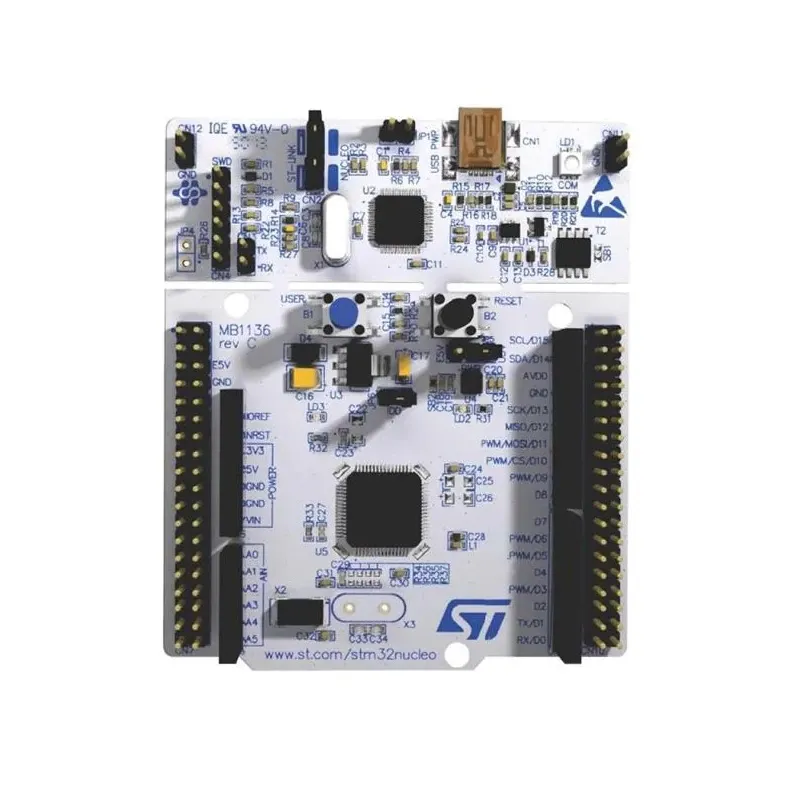

STMicroelectronics NUCLEO-F446RE Development Board - Image 2
SKU: SBCD-0429
📋 GST Invoice Available

STMicroelectronics NUCLEO-F446RE Development Board

₹2,419.00 (Inclusive of all taxes)
Out of Stock

The STMicroelectronics NUCLEO-F446RE is a versatile development board featuring the STM32F446RET6 microcontroller, designed to accelerate prototyping with its rich set of peripherals and integrated ST-LINK/V2-1 debugger/programmer. It offers Arduino Uno V3 and ST morpho connectivity for extensive expansion capabilities.

Features

  • Integrates STM32F446RET6 microcontroller with ARM Cortex-M4 core.
  • Features an on-board ST-LINK/V2-1 debugger/programmer for streamlined development.
  • Provides Arduino Uno V3 and ST morpho headers for broad expansion shield compatibility.
  • Offers flexible power supply options via ST-LINK USB VBUS or external sources.
  • Supported by the comprehensive STM32Cube MCU Package for extensive software libraries.

Out of stock

Description

The STM32 Nucleo-64 board, specifically the NUCLEO-F446RE, provides a robust and cost-effective platform for developing embedded applications based on the STM32F446RET6 microcontroller. This board empowers users to explore a wide array of performance and power consumption profiles inherent to the STM32 ecosystem, facilitating rapid concept validation and prototyping.

Designed for expandability, the NUCLEO-F446RE features both Arduino Uno V3 compatible connectors and ST morpho headers, enabling seamless integration with a broad selection of specialized shields and add-on modules. Its integrated ST-LINK/V2-1 debugger/programmer simplifies the development workflow, removing the necessity for separate debugging hardware. Furthermore, the board is fully supported by the comprehensive STM32Cube MCU Package, offering extensive free software libraries and example code to streamline project development.

Key Features

  • Integrates an STM32F446RET6 microcontroller (ARM Cortex-M4, 180 MHz, 512KB Flash, 128KB SRAM).
  • On-board ST-LINK/V2-1 debugger/programmer supports virtual COM port, mass storage, and debug port.
  • Features Arduino Uno V3 connectivity and ST morpho extension headers for modular expansion.
  • Multiple power supply options: USB VBUS, external power, or ST-LINK VBUS.
  • Equipped with three user LEDs, one user button, and one reset push-button.
  • Comprehensive free software libraries and examples available with STM32Cube.
  • External SMPS support for reduced power consumption in Run mode.

Applications

  • Rapid prototyping and proof-of-concept development.
  • Embedded control systems and industrial automation.
  • IoT edge devices and sensor data acquisition.
  • Motor control and power management.
  • Educational projects and learning STM32 microcontrollers.

Technical Specifications

MicrocontrollerSTM32F446RET6 (ARM Cortex-M4)
Core SpeedUp to 180 MHz
Flash Memory512 KB
SRAM128 KB
Integrated Debugger/ProgrammerST-LINK/V2-1
Expansion InterfacesArduino Uno V3, ST morpho headers
Operating Supply Voltage3.3 V, 5 V (USB), 7 V to 12 V (External)

Frequently Asked Questions

What microcontroller is on the NUCLEO-F446RE board?

The NUCLEO-F446RE board features the STM32F446RET6 microcontroller, which is based on the ARM Cortex-M4 core running at up to 180 MHz. It includes 512 KB of Flash memory and 128 KB of SRAM for versatile application development.

Does the NUCLEO-F446RE require a separate debugger?

No, the NUCLEO-F446RE board integrates an ST-LINK/V2-1 debugger/programmer. This eliminates the need for an external debugging probe, simplifying the development setup and enabling immediate out-of-the-box programming and debugging.

Is the NUCLEO-F446RE compatible with Arduino shields?

Yes, the NUCLEO-F446RE board includes Arduino Uno V3 compatible connectivity. This allows developers to easily expand the board's functionality using a wide range of existing Arduino shields, increasing prototyping speed and flexibility.

What development environment is recommended for the NUCLEO-F446RE?

STMicroelectronics recommends using the STM32CubeIDE, a free all-in-one development tool for STM32 microcontrollers. It supports flashing, debugging, and provides access to the comprehensive STM32Cube MCU Package libraries, streamlining the entire development process.

Package Includes

  • 1 x STMicroelectronics NUCLEO-F446RE Development Board

Additional Information

Weight 0.07 kg
Dimensions 12 × 10 × 4 cm
