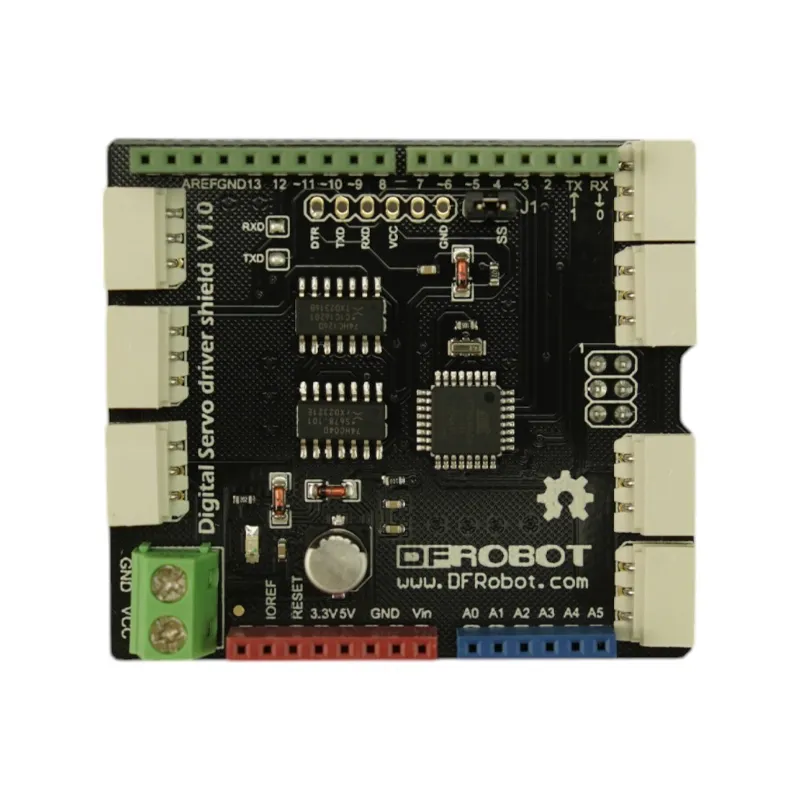

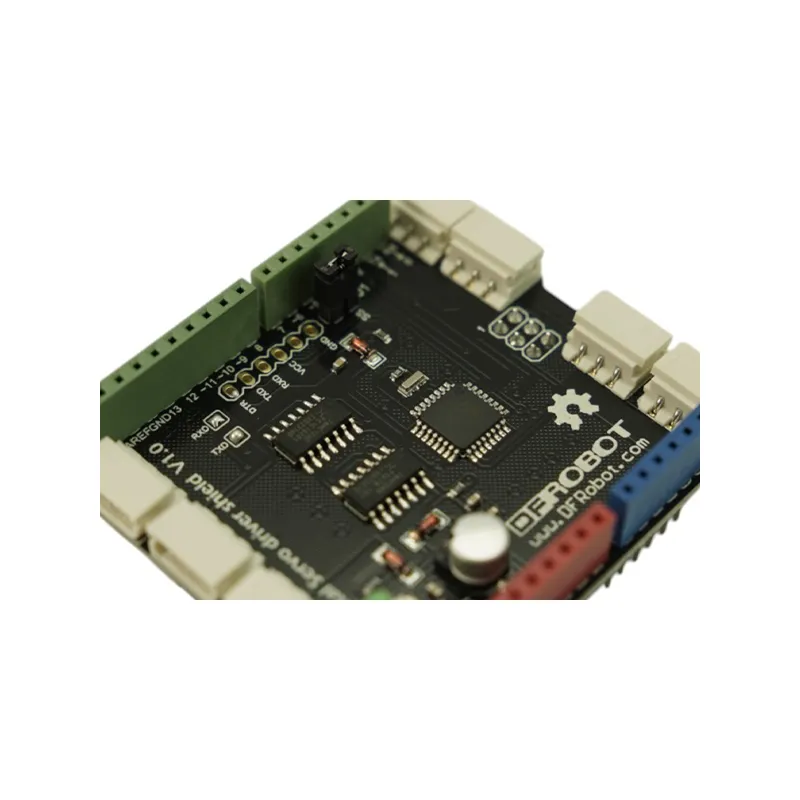

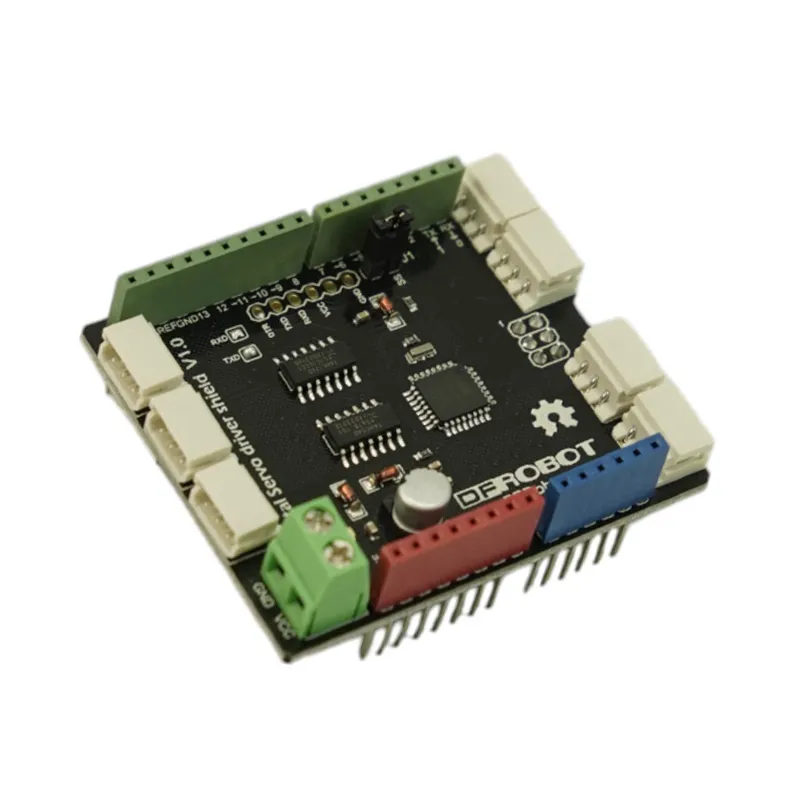

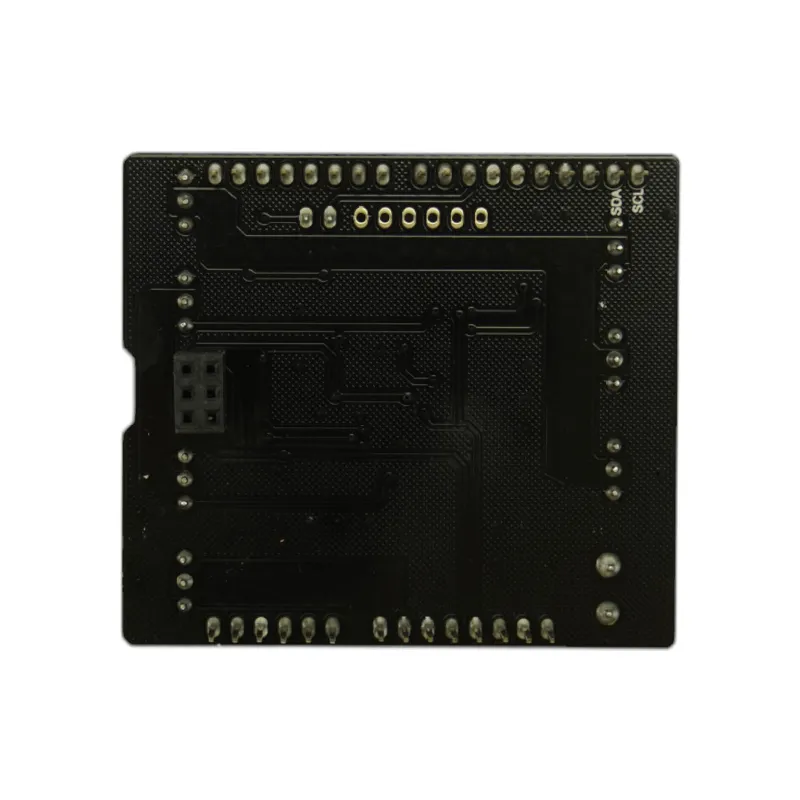

DFRobot Smart Arduino Digital Servo Shield for Dynamixel AX

This DFRobot shield is fully compatible with the Dynamixel AX-12 and other servos within the Dynamixel AX series. It provides robust control and feedback capabilities for these specific intelligent servos, enabling precise motion control in robotic applications. Ensure your servos belong to the AX family for optimal performance and integration.

The DFRobot Smart Arduino Digital Servo Shield supports daisy-chaining over 200 Dynamixel AX series servos through its half-duplex UART communication. This high capacity makes it suitable for complex multi-joint robotic projects, allowing extensive control from a single Arduino board with efficient serial data management.

Each Dynamixel AX servo connected to the shield can provide comprehensive feedback. This includes its current position, rotational speed, applied torque, and internal temperature. This real-time data is crucial for implementing advanced control algorithms, monitoring servo health, and enhancing the precision of robotic movements.

The DFRobot Smart Arduino Digital Servo Shield is designed with the standard Arduino Uno R3 layout. This ensures plug-and-play compatibility with the Arduino Uno, as well as many other Arduino-compatible boards that adhere to the R3 pinout. This standardization simplifies integration into existing Arduino-based projects.
