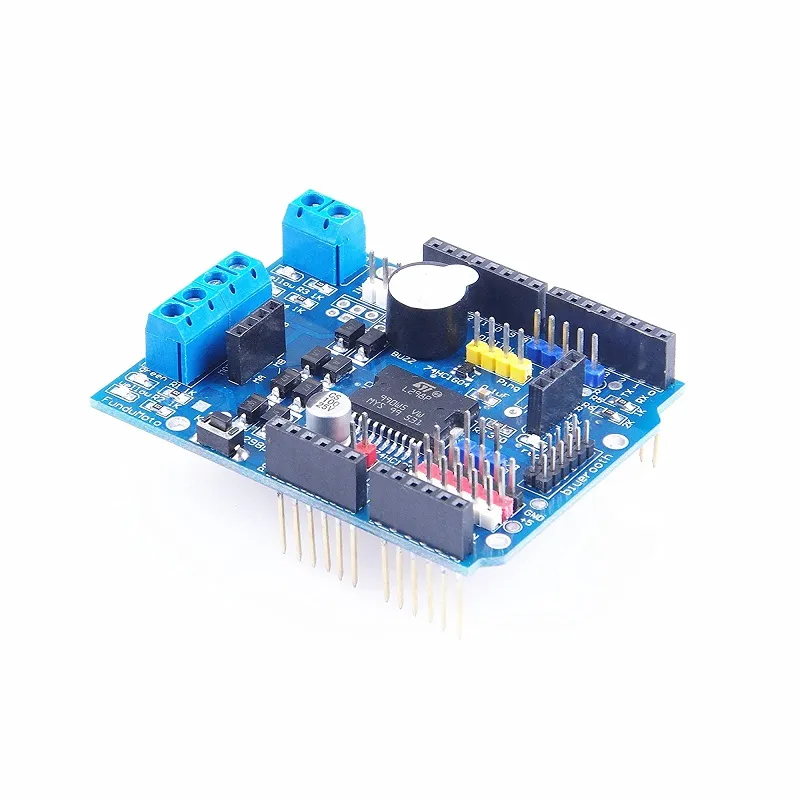

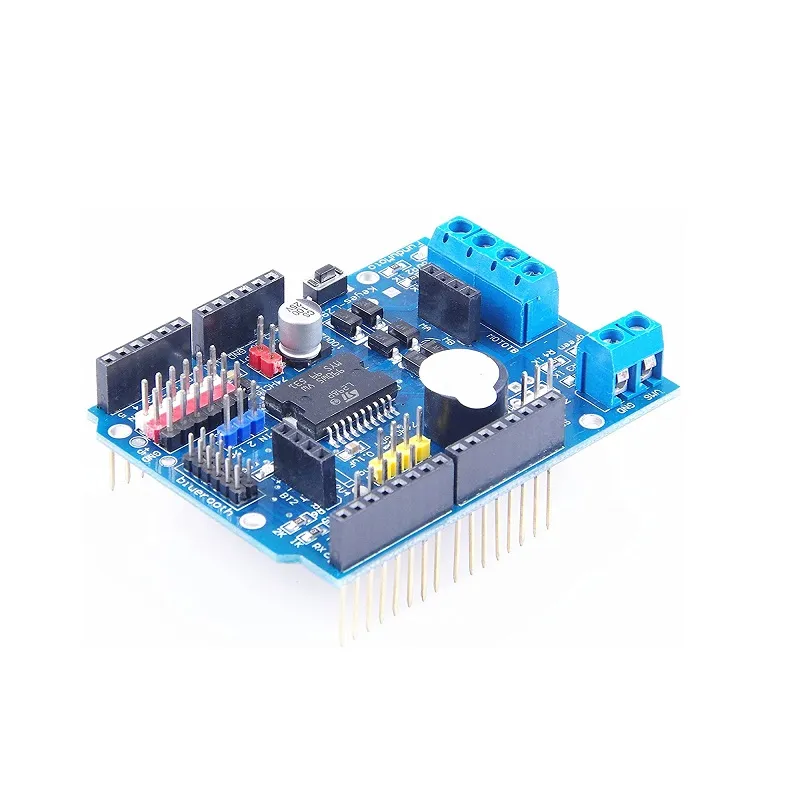

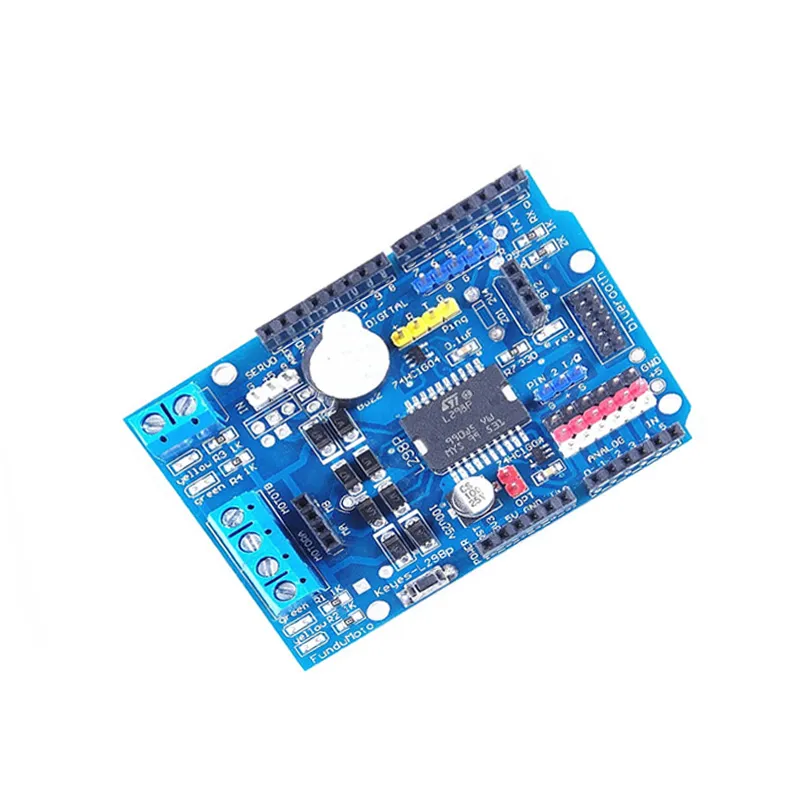

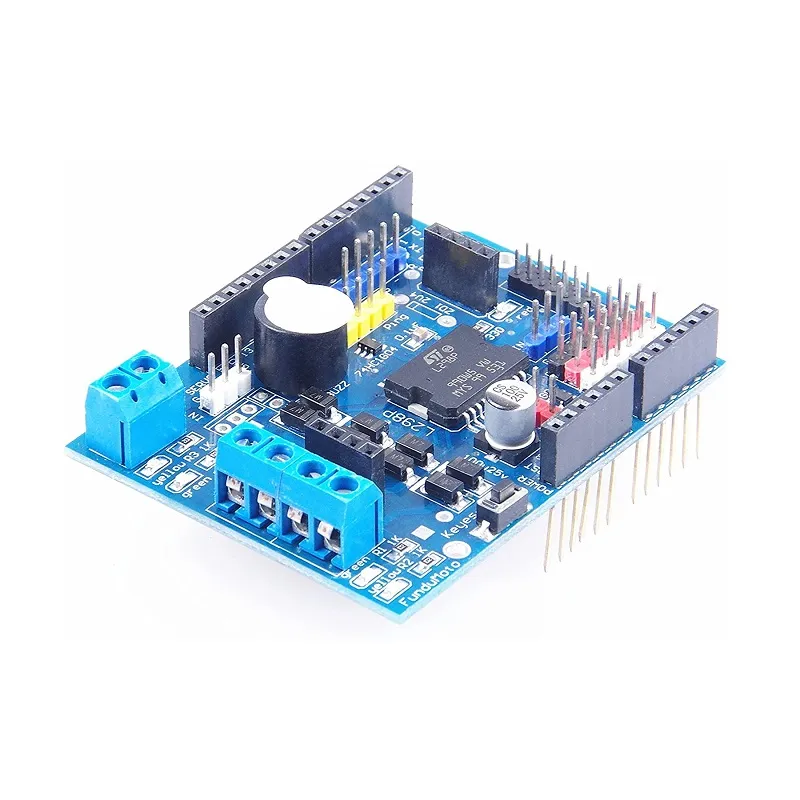

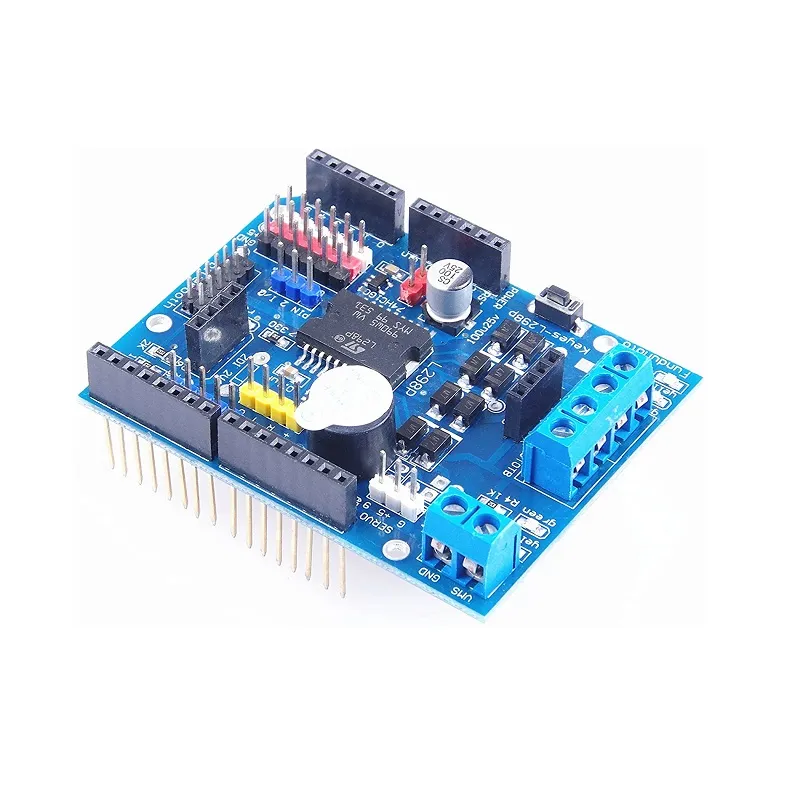

L298P Motor Driver Shield for Arduino - Dual H-Bridge
The L298P Motor Driver Shield provides robust control for DC motors and stepper motors on Arduino platforms, leveraging the powerful L298P IC. It features an onboard buzzer, dedicated Bluetooth interface, and multiple analog and digital I/O for versatile robotics and automation projects.
Features
- L298P dual H-bridge for precise control of two DC motors or one stepper motor.
- Seamlessly integrates with Arduino boards as a direct-plug shield, simplifying wiring.
- Includes an onboard Bluetooth interface, buzzer (D4), and six analog input interfaces.
- Provides dedicated headers for ultrasonic sensors and servos, ideal for robotics.
- Supports motor driving via digital pins D10-D13 and servo control on D9.
Out of stock
The L298P Motor Driver Shield for Arduino offers robust motor control capabilities in a convenient shield form factor, making it an excellent choice for a wide array of robotic and automation projects. Designed around the L298P dual H-bridge driver, this shield can efficiently drive two DC motors or one stepper motor, drawing power from a versatile 6.5V to 12VDC input. Its direct-plug design eliminates complex wiring, seamlessly integrating with Arduino’s digital I/O pins D10, D11, D12, and D13 for motor control, and D9 for servo operations.
Beyond its core motor driving functions, the shield enhances project versatility with several integrated features. It includes an onboard buzzer connected to D4 for audible alerts, a dedicated female header for easy Bluetooth module integration without additional wiring, and male headers for an ultrasonic sensor (D7, D8). Further expansion is supported with a servo header on D9 and access to PWM pins D3, D5, and D6. With six analog interfaces (A0-A5) remaining available and forward/backward steering indicators, this shield provides a comprehensive solution for interactive and motion-controlled applications.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 7 × 5.4 cm |
