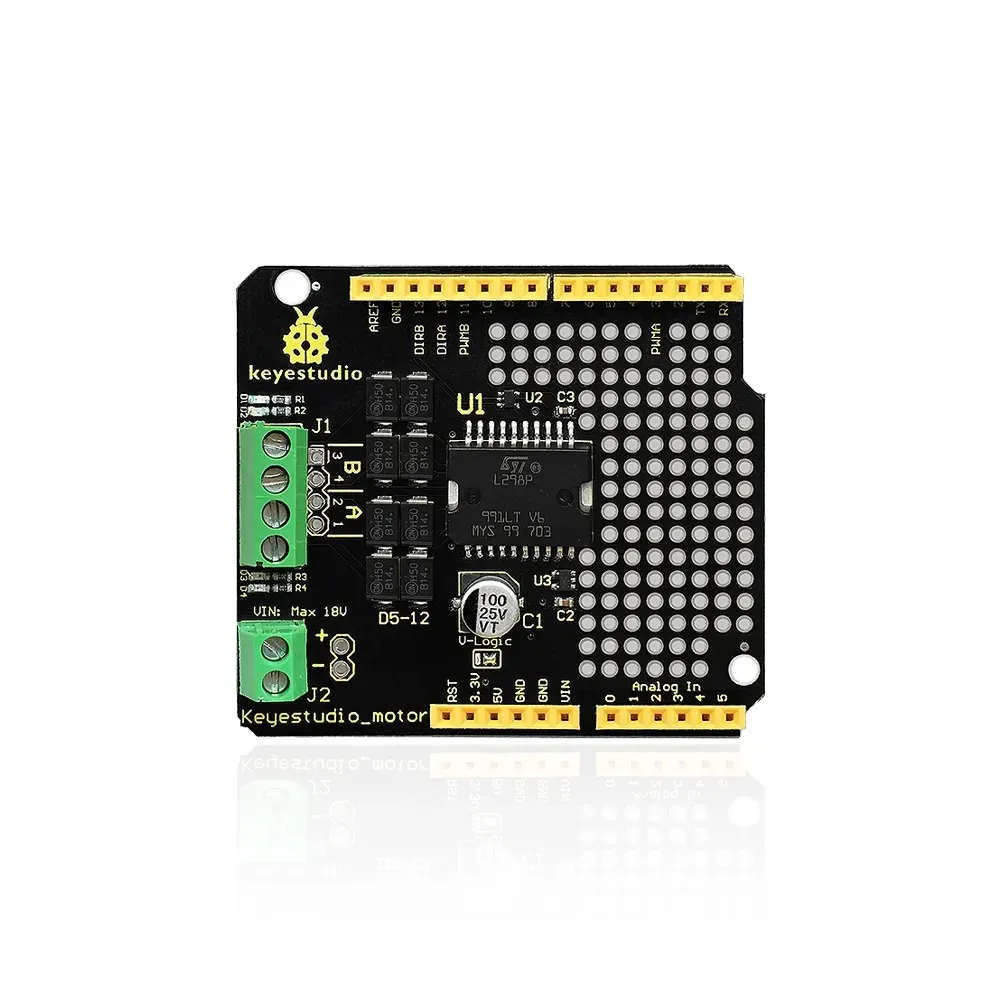

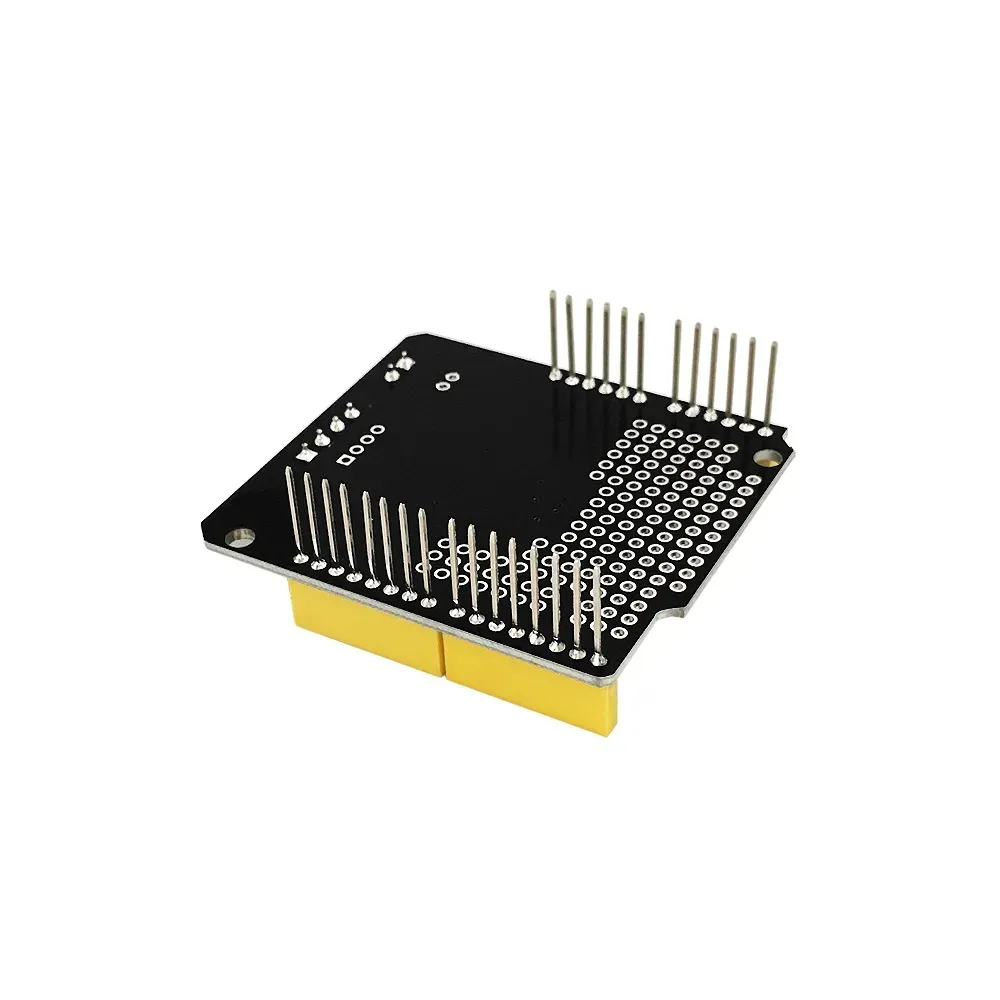

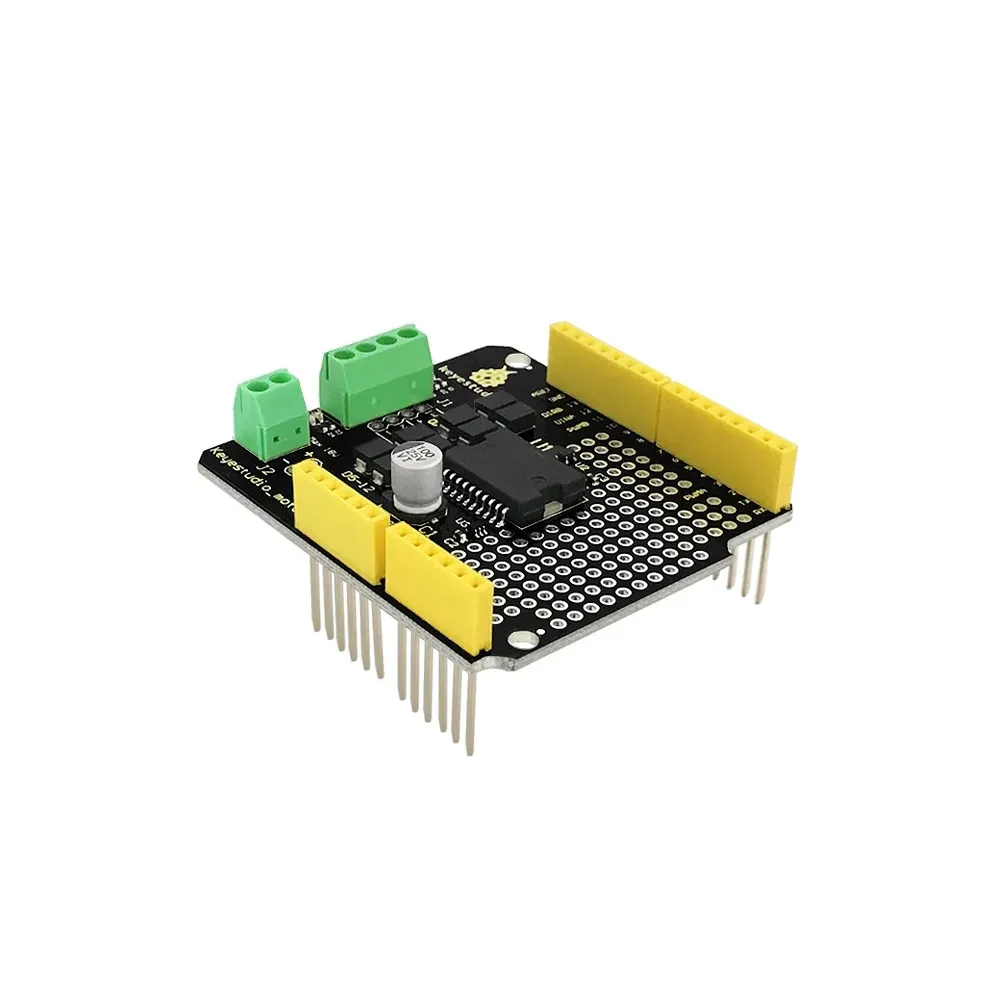

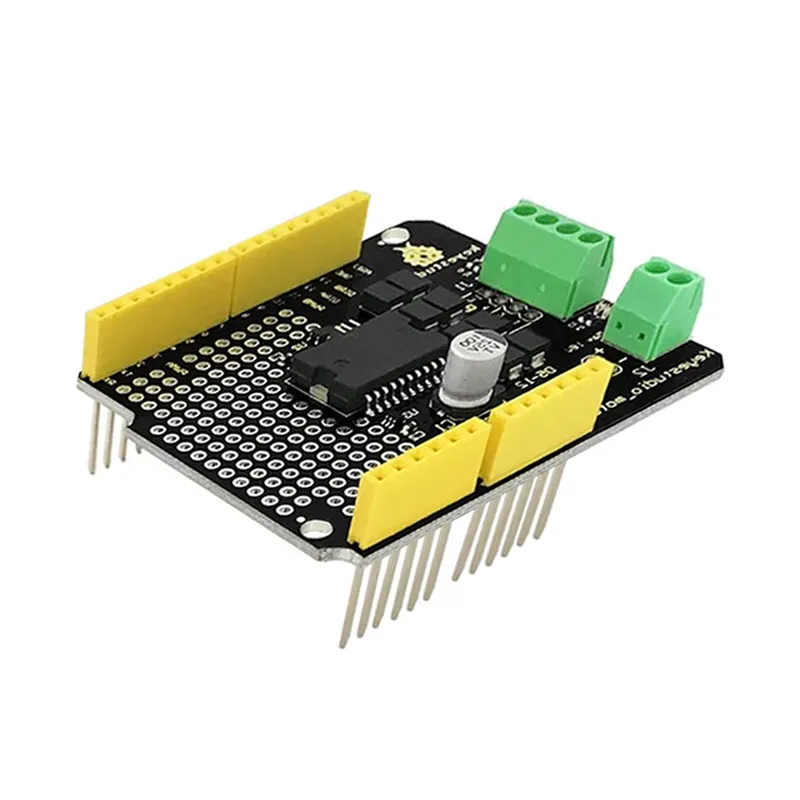

Keyestudio L298P Dual Motor Driver Shield for Arduino
The Keyestudio L298P Shield is a high-current dual motor driver designed to seamlessly integrate with Arduino UNO R3 boards. Leveraging the L298P dual H-bridge IC, it provides robust control for two DC motors with up to 2A per channel, operating on a wide voltage range from 6.5V to 24V for versatile robotics and automation applications.
Features
- Dual L298P H-bridge driver supports two DC motors up to 2A each.
- Directly stackable onto Arduino UNO R3 for simplified wiring.
- Wide 6.5V to 24V input voltage range for motor power.
- Dedicated pins for PWM speed and direction control.
- Integrated terminal blocks and through-hole pads for flexible power and prototyping.
Out of stock
The Keyestudio L298P Shield serves as a powerful and convenient solution for driving DC motors with Arduino platforms, specifically engineered for the Arduino UNO R3. Its core, the L298P dual H-bridge driver, allows it to control two independent DC motors or one stepper motor, delivering up to 2A continuously per channel. This capability is crucial for projects requiring significant motor power, such as mobile robots, automated systems, or custom mechatronics.
Designed for ease of use, the shield features a stackable form factor, eliminating complex wiring by directly plugging into the Arduino UNO. It offers a broad input voltage range from 6.5V to 24V for the motor power supply, accommodating various battery configurations. Control is intuitive, with dedicated pins for Pulse Width Modulation (PWM) for speed regulation and digital pins for direction control. Further enhancing its utility, the board includes onboard terminal blocks for secure power and motor connections, alongside through-hole pads that enable additional prototyping and circuit expansion within a compact footprint. It maintains reliable operation across a wide industrial temperature range of -25°C to +130°C.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 6.3 cm |
