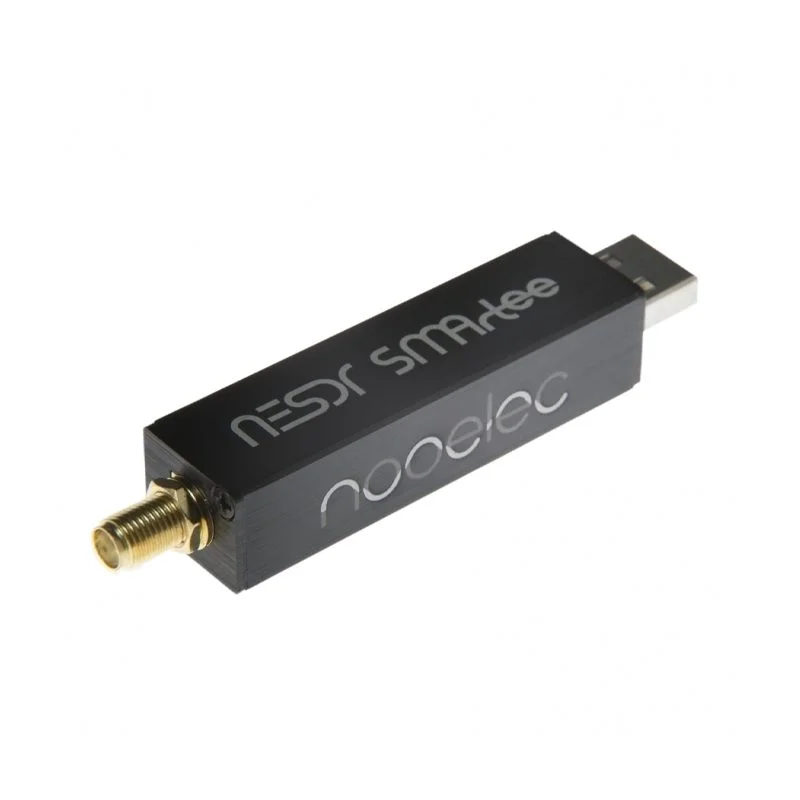

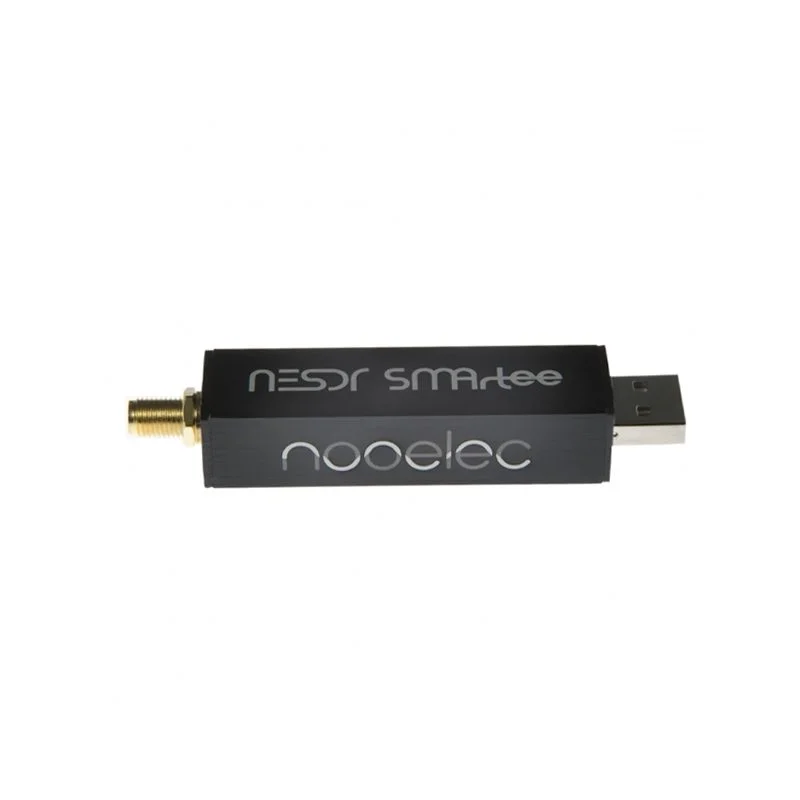

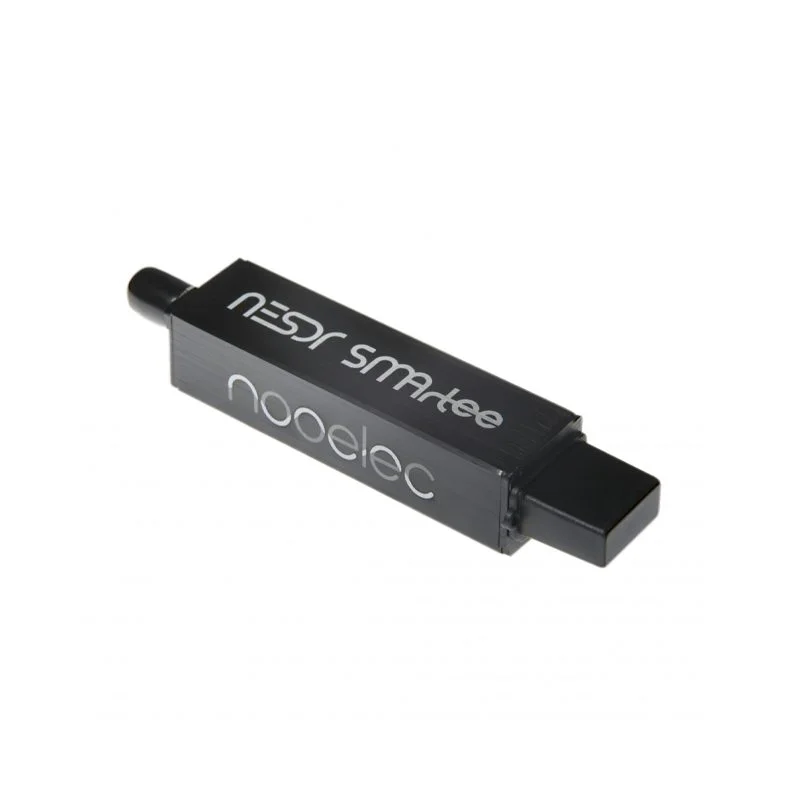

Nooelec NESDR SMArTee v2 SDR w/ Aluminum Enclosure, Bias Tee, 0.5PPM TCXO

Description

The Nooelec NESDR SMArTee v2 SDR is engineered for developers and RF enthusiasts requiring high-performance, low-noise spectrum monitoring. Its core architecture leverages the proven RTL2832U ADC and R820T2 tuner, now paired with a precision 0.5PPM temperature-compensated crystal oscillator (TCXO) for unwavering frequency accuracy across its 25 MHz to 1.75 GHz operational range. The integrated, always-on bias tee simplifies system integration by delivering clean 4.5V power to external active components like LNAs, eliminating the need for separate power supplies.

Thermal management and signal integrity are paramount in this design. The machined aluminum enclosure acts as both an RF shield and a heatsink, reducing internal board temperature by approximately 10°C and minimizing external EMI contamination. This is complemented by an ultra-low-noise voltage regulator (<10 µVRMS) that powers the onboard circuitry, contributing to the measured ~3dB improvement in system noise floor over earlier models. The result is a robust, studio-grade SDR suitable for demanding applications like ADS-B aircraft tracking, weather satellite reception, and wideband spectral analysis.
