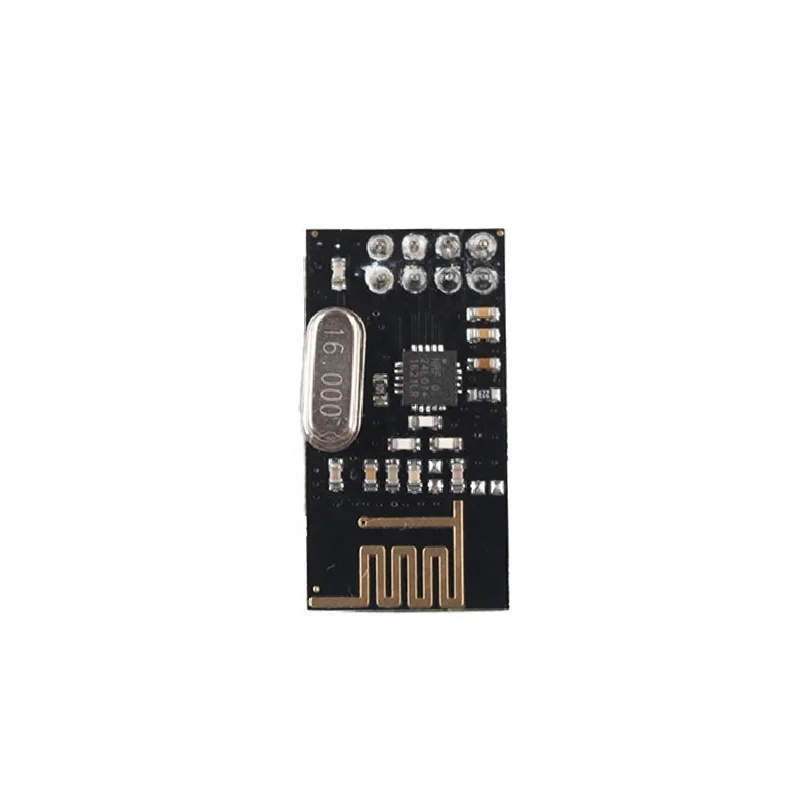

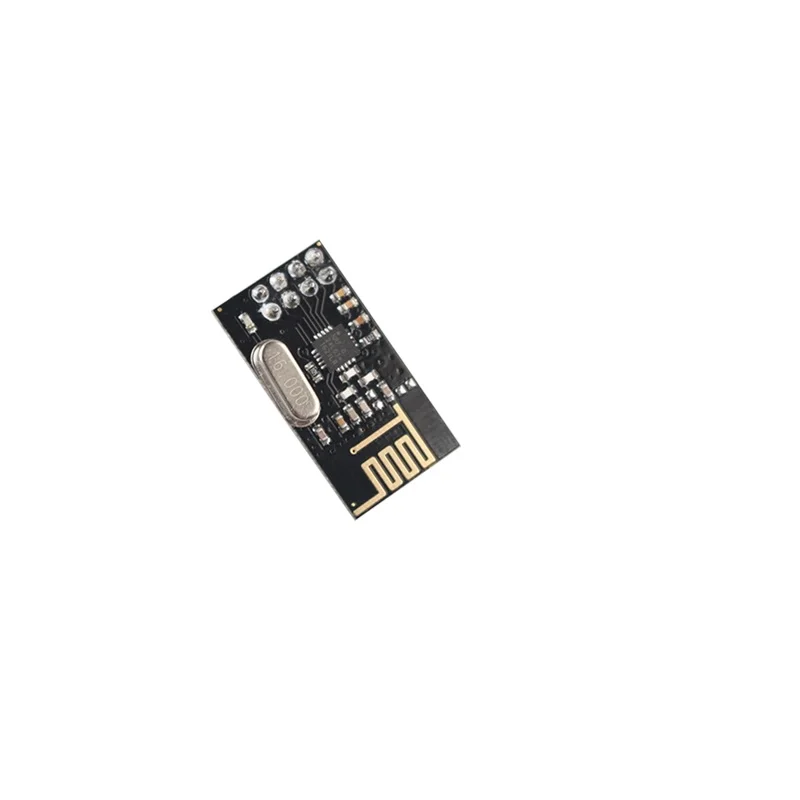

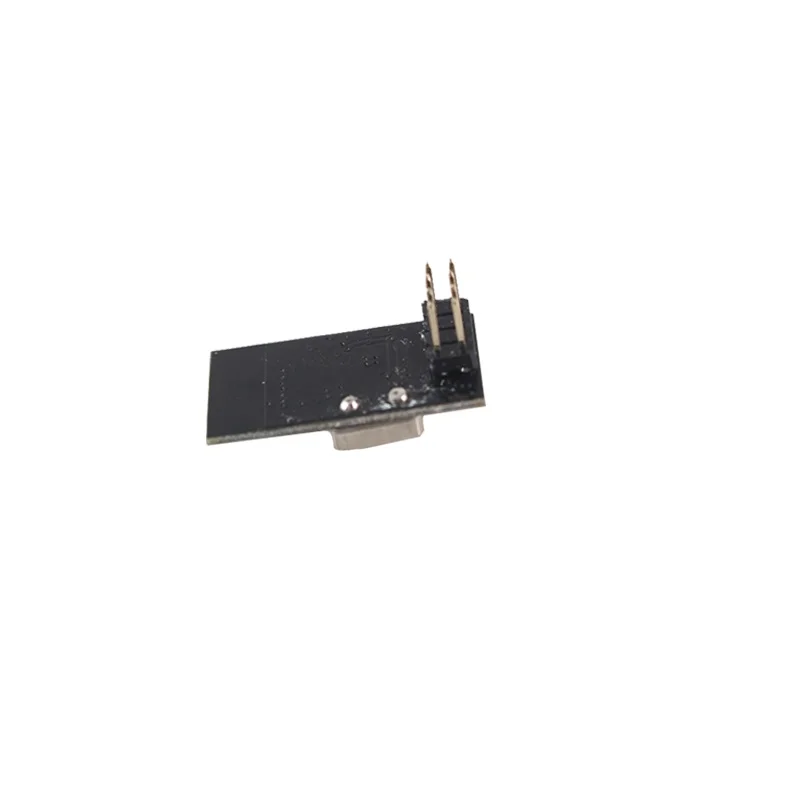

AI-Thinker NF-01-N 2.4GHz Wireless Transceiver Module
The AI-Thinker NF-01-N is a 2.4GHz wireless transceiver module in a DIP-8 package, featuring an SPI interface, up to 2Mbps data rate, and a built-in antenna for easy integration into IoT sensor nodes and remote control applications.
Features
- Ultra-compact DIP-8 package for plug-and-play integration without soldering.
- High-speed 2.4GHz transceiver supporting data rates up to 2Mbps (GFSK/FSK).
- Integrated 2.4GHz antenna and high-PSRR LDO for stable 1.9-3.6V operation.
- Low receive sensitivity of -96dBm @250kbps and configurable 7dBm max transmit power.
- 4-wire SPI interface with hardware interrupt output and integrated ARQ protocol engine.
Out of stock
The AI-Thinker NF-01-N is a fully integrated 2.4GHz ISM band wireless transceiver module designed for low-power, high-reliability IoT data links. Its pure hardware RF core and intelligent ARQ baseband protocol engine handle packet acknowledgment and retransmission autonomously, reducing firmware complexity. The module operates across 126 frequency channels from 2400MHz to 2525MHz, supporting frequency-hopping spread spectrum (FHSS) for robust multi-point and mesh network communications.
Engineered for industrial-grade stability, the NF-01-N incorporates a high PSRR LDO regulator, allowing direct power from a single-cell LiPo or 3.3V rail with wide input tolerance from 1.9V to 3.6V. Its SPI interface operates at up to 10MHz, enabling rapid configuration and data exchange with host microcontrollers like ESP32, STM32, or Arduino platforms. The compact DIP-8 footprint and built-in antenna eliminate external RF matching, simplifying PCB layout and accelerating product development cycles.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 2.9 × 1.1 × 1.1 cm |
