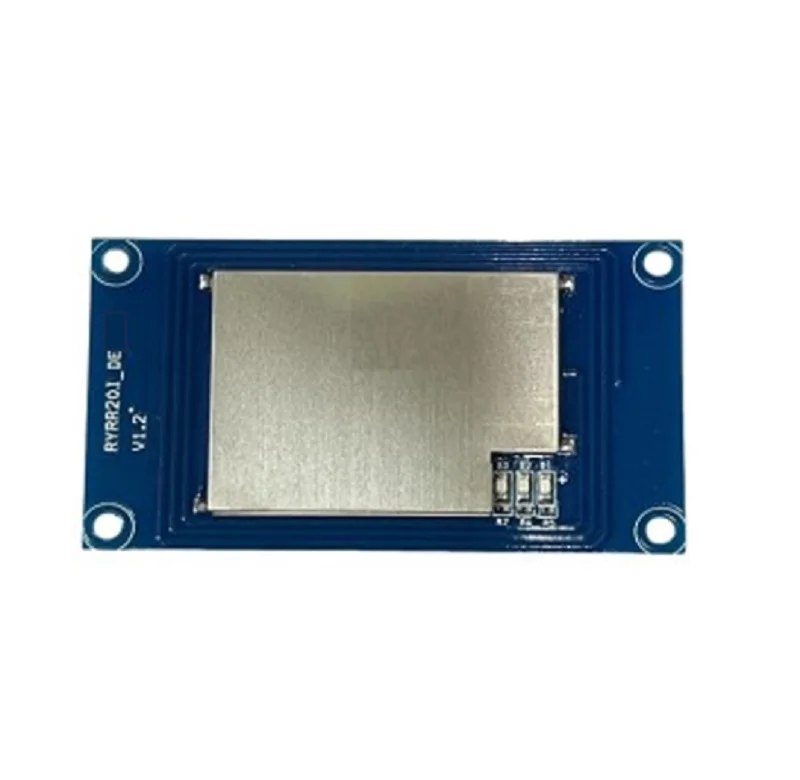

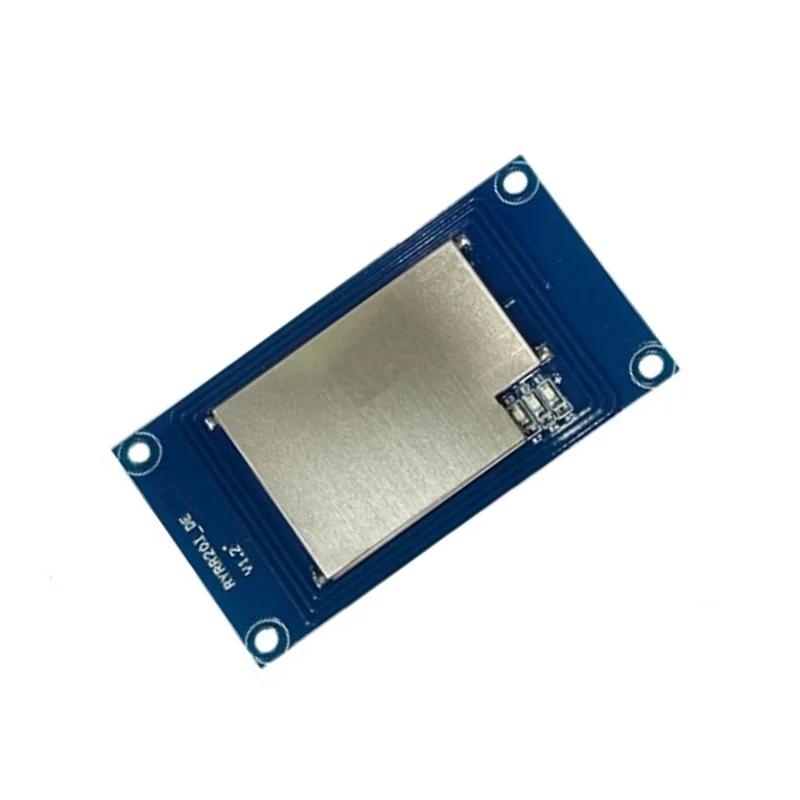

Reyax RYRR20I_DE 13.56MHz UART RFID Antenna Module
The Reyax RYRR20I_DE is a fully integrated 13.56MHz RFID antenna module with a UART interface, supporting ISO14443A/B, ISO15693, FeliCa, and ISO18092 protocols for automated card reading in standalone or host-controlled modes.
Features
- Fully integrated 13.56MHz RFID antenna module with built-in protocol handling for ISO14443A/B, ISO15693, FeliCa, and ISO18092.
- Simple UART interface (115200 baud) for easy integration with microcontrollers like Arduino, ESP32, or Raspberry Pi.
- Operates in standalone mode for automatic card reading upon power-up, requiring no host configuration.
- Wide operating voltage range of 4.7V to 6V and robust temperature tolerance from -40°C to +85°C.
- Compact form factor with integrated antenna, ideal for embedded proximity identification and access control systems.
Out of stock
The Reyax RYRR20I_DE is a multiprotocol RFID transceiver module designed for 13.56MHz HF band operation. It integrates the antenna, RF front-end, and protocol stack into a single compact unit, simplifying integration for proximity and vicinity identification systems. The module communicates via a straightforward UART serial interface at 115200 baud, making it compatible with a wide range of host microcontrollers and single-board computers.
Its firmware supports a comprehensive command set for reading and writing operations across multiple standards, including ISO14443A/B, ISO15693, FeliCa, and ISO18092 (NFC). With an operational range of approximately 4cm and an RF output power of 20dBm, it is suited for secure, short-range data exchange. The module’s wide temperature range and low-power design enable reliable performance in industrial, commercial, and embedded IoT applications.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 10 × 6 × 2 cm |
