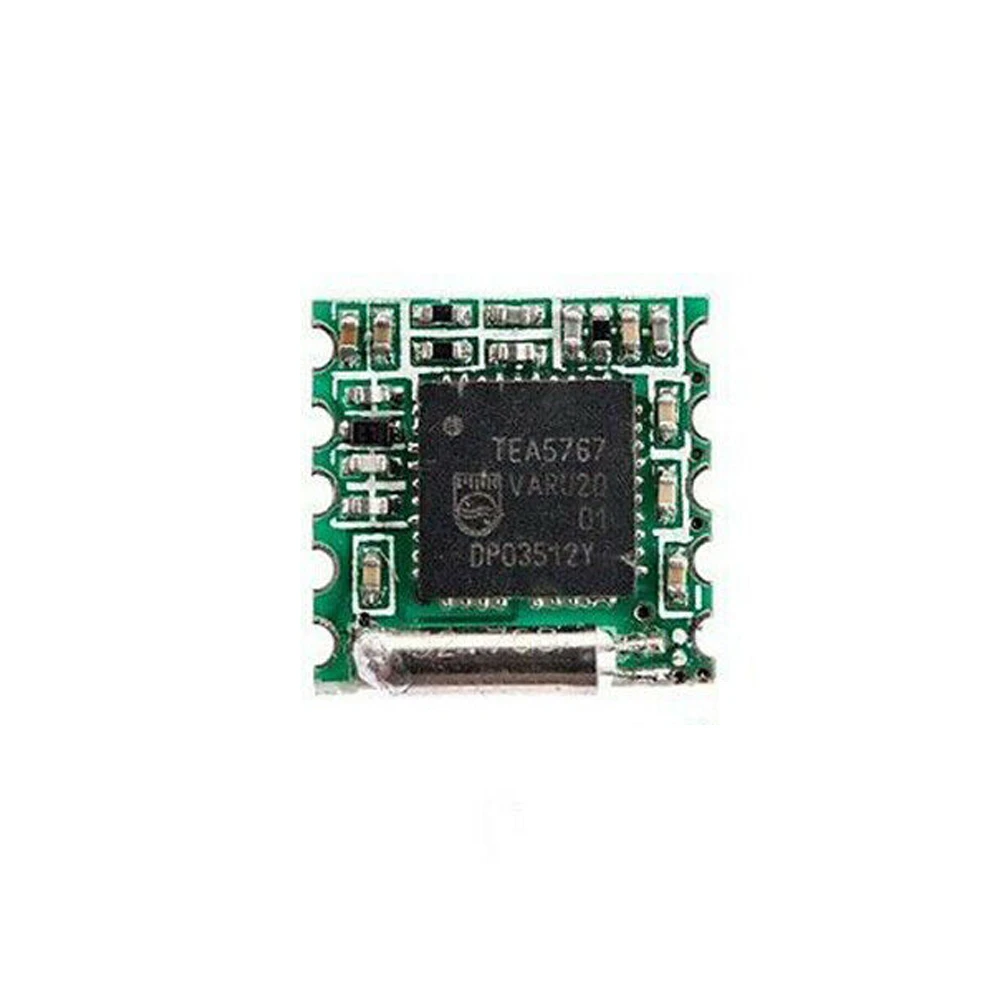

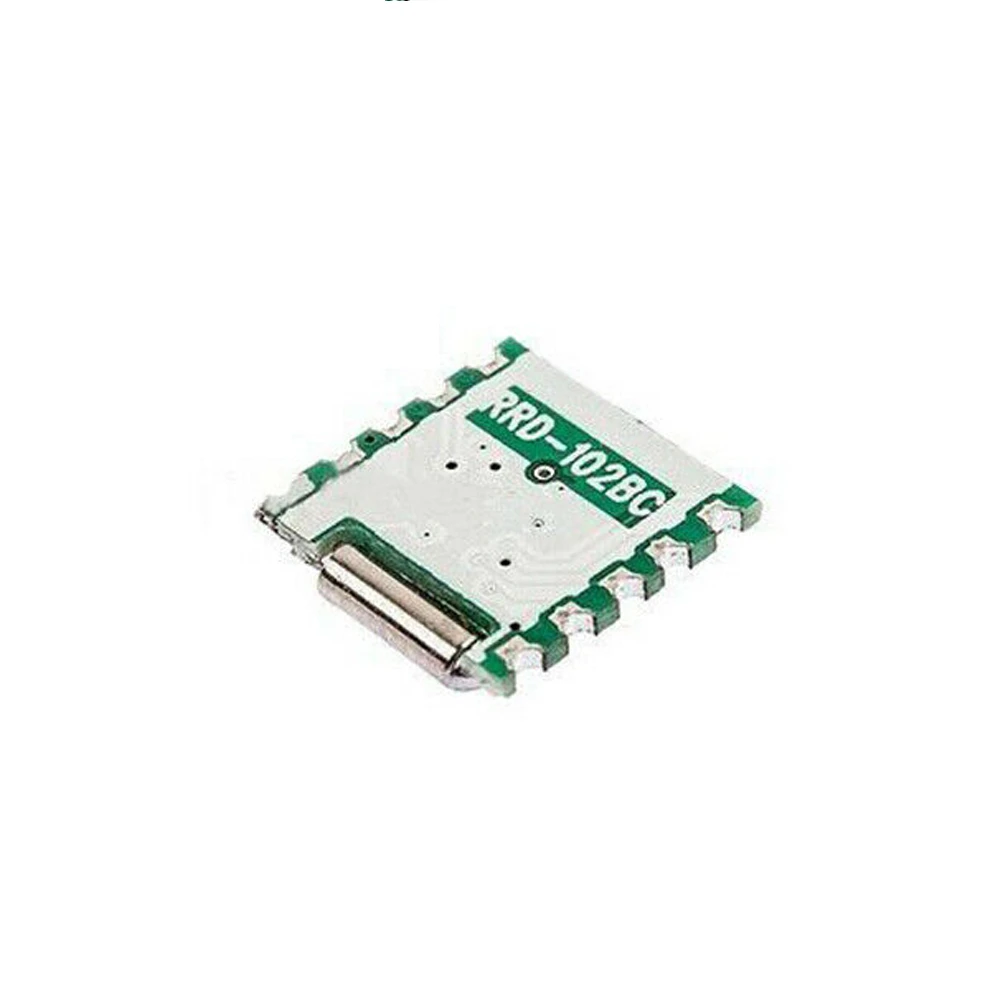

TEA5767 FM Radio Receiver Module w/ I2C Interface
The TEA5767 FM Radio Module is a compact FM receiver for embedded projects, integrating the TEA5767 IC for stereo FM reception via I2C communication with Arduino, ESP32, and Raspberry Pi.
Features
- Single-chip TEA5767 FM receiver IC for reliable 76–108MHz stereo reception.
- I2C communication interface for straightforward integration with microcontrollers like Arduino and ESP32.
- High receiver sensitivity with integrated low-noise amplifier and automatic gain control (AGC).
- Low-power 3V DC operation suitable for portable, battery-powered radio applications.
- Compact 10x10mm module footprint for space-constrained DIY and embedded electronics projects.
Out of stock
The TEA5767 FM Radio Module provides a complete, low-power FM receiver solution for custom wireless audio applications. Built around the dedicated TEA5767 integrated circuit, it handles the entire FM signal chain from RF input to stereo audio output, requiring minimal external components. The module’s I2C digital interface allows for precise frequency tuning, mute control, and signal status reading, simplifying firmware development on popular platforms.
Its architecture includes an integrated low-noise amplifier, FM demodulator, and stereo decoder, delivering clear audio with automatic gain control to maintain consistent output levels. The compact form factor and 3V supply make it ideal for integration into portable devices, educational kits, automotive add-ons, or any project requiring reliable FM radio functionality without complex RF design.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 4 × 2.5 × 1.5 cm |
