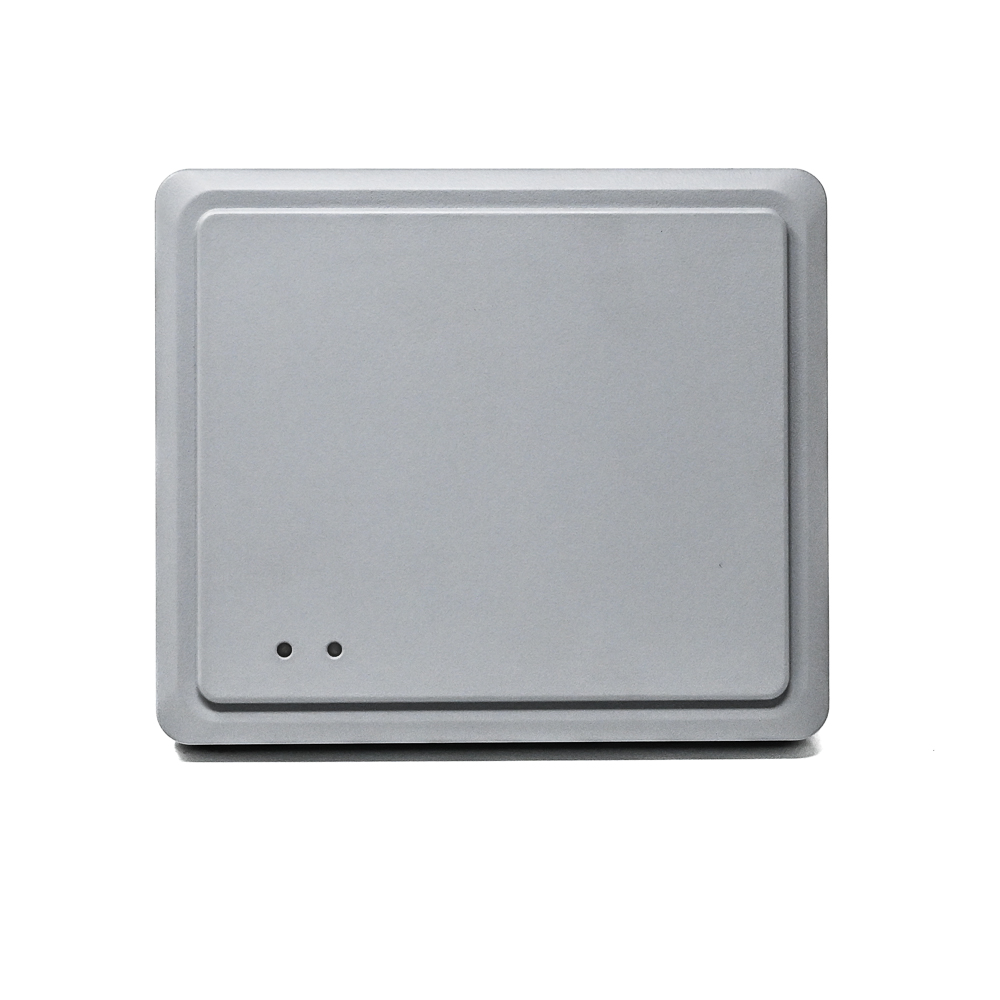

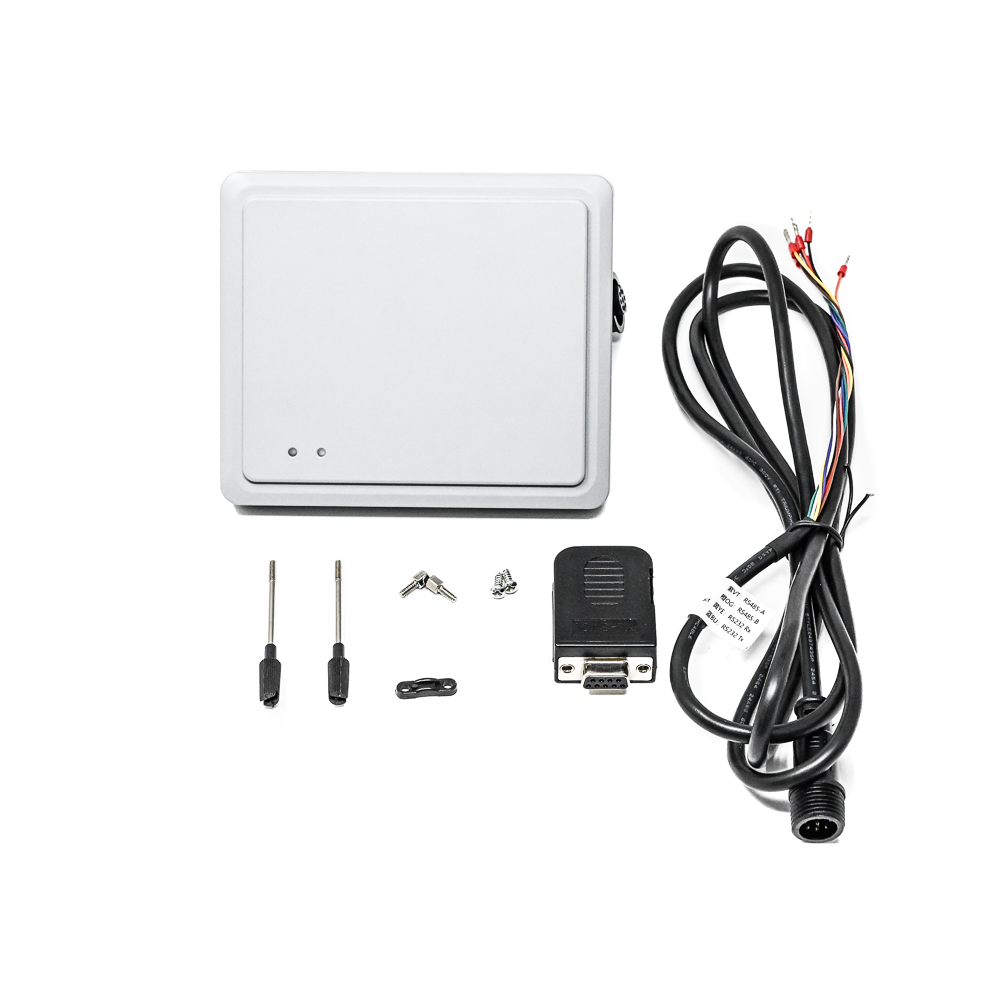

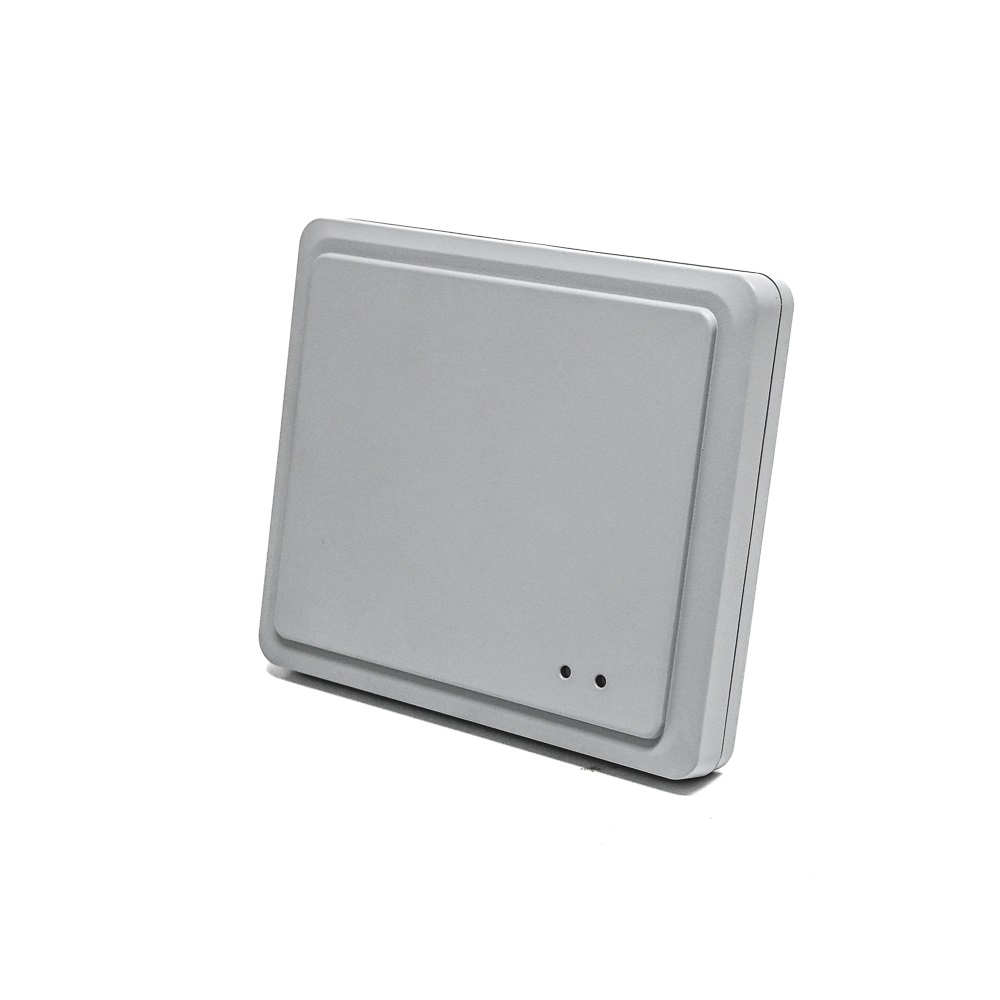

NanoRadar TSR18 Multi Lanes Speed Radar - 24GHz FMCW, 180m Range
The NanoRadar TSR18 is a 24GHz FMCW traffic speed radar module designed for precise multi-lane vehicle speed and direction detection up to 180 meters, compatible with traffic monitoring systems and roadside data acquisition units.
Features
- 24GHz K-band FMCW millimeter-wave radar for high-accuracy speed measurement.
- Extended detection range up to 180 meters with a 15-40m optimal capture zone.
- Multi-lane operation capable of monitoring 1 to 4 traffic lanes simultaneously.
- Microstrip array antenna design enables precise direction discrimination (approaching vs. departing).
- Ruggedized for continuous outdoor operation in temperatures from -40°C to +85°C.
Out of stock
The NanoRadar TSR18 operates on the Frequency Modulated Continuous Wave (FMCW) principle at 24.25 GHz, analyzing the Doppler shift and phase difference between transmitted and reflected signals to calculate target speed and direction with high precision. Its advanced microstrip antenna array provides focused beam control for reliable lane discrimination and minimizes interference from adjacent traffic.
Engineered for permanent roadside installation, the module features a low 1W power consumption and robust housing capable of withstanding harsh environmental conditions. It outputs processed speed data suitable for integration into traffic management systems, variable message signs, and automated enforcement platforms.
Additional Information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 13.7 × 11.7 cm |
