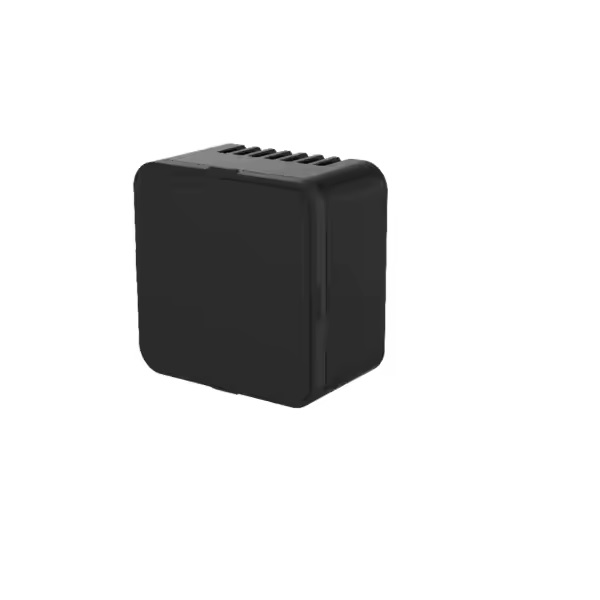

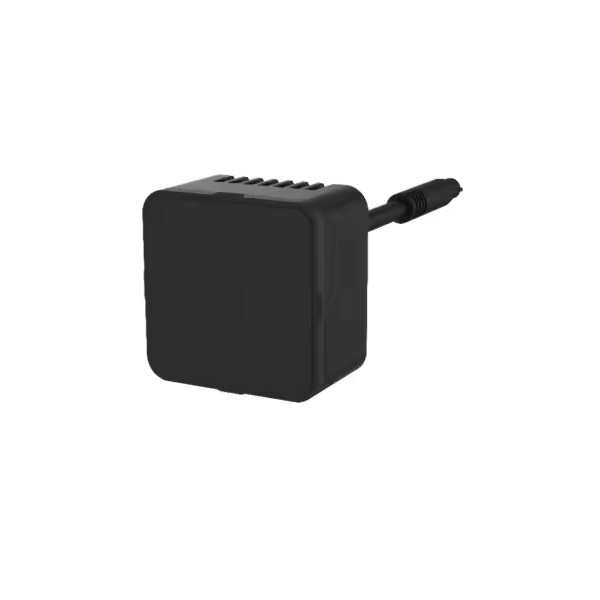

NanoRadar AFM711 Stereo Dual Wide-Angle Radar Module - 77GHz FMCW, 20m Range, IP67
The NanoRadar AFM711 is a compact 77 GHz FMCW radar module designed for low-speed obstacle avoidance, providing 4D sensing (distance, speed, angle, height) with a 120° dual wide-angle field of view and a 20-meter detection range. It operates on a 9-24V DC supply and is engineered for easy integration into autonomous vehicles and industrial mobile robots.
Features
- 77 GHz FMCW radar with 0.1–20 m detection range and 120° horizontal + pitch wide-angle coverage.
- Tracks up to 64 targets per frame, outputting precise distance, speed, angle, and height data.
- Robust IP67-rated housing ensures reliable all-weather, all-day operation in harsh environments.
- Low power consumption (2.5W) and compact 38 x 38 mm footprint for easy system integration.
- Supports multiple mounting brackets and interfaces for seamless installation on low-speed autonomous platforms.
Out of stock
The AFM711 is a sophisticated short-range radar sensor utilizing Frequency Modulated Continuous Wave (FMCW) technology at 77 GHz. Its multi-transmit, multi-receive antenna array enables high-sensitivity detection and stable performance, accurately resolving the position and velocity of multiple obstacles simultaneously. The module’s compact design and low weight facilitate straightforward integration into space-constrained mobile applications.
Engineered for durability, the sensor features an IP67 protection rating, making it resistant to dust and water ingress for reliable operation in outdoor and industrial settings. Its 9-24V DC wide input voltage range ensures compatibility with common vehicle and robotic power systems, while the detailed 4D data output provides critical environmental awareness for autonomous navigation and collision avoidance algorithms.
Additional Information
| Weight | 0.06 kg |
|---|---|
| Dimensions | 3.8 × 3.8 cm |
