FirstRate FSTRD-905 Radar Tank Level Sensor, Range: 0.1m-65m, RS485 Output, 10m Cable

Name: FirstRate FSTRD-905 Radar Tank Level Sensor, Range: 0.1m-65m, RS485 Output, 10m Cable
Brand: FirstRate
SKU: SENS-1371
Price: 32989.00 INR
Availability: OutOfStock

₹32,989.00 (Inclusive of all taxes)

Out of Stock

The FirstRate FSTRD-905A is a high-precision FMCW radar level sensor operating at 76-81 GHz, designed for industrial tank level measurement. It features RS485 Modbus output, a wide 9-30V DC supply range, and a 10-meter cable for flexible installation in corrosive and dusty environments.

Features

High-Frequency FMCW Radar: Operates at 76-81 GHz for superior accuracy (±2mm) and a minimal 10cm blind zone.
Wide Measurement Range: Precisely measures levels from 0.1 meters up to a maximum of 65 meters.
Robust Industrial Interface: Provides RS485 Modbus communication for reliable integration with PLCs and SCADA systems.
Durable & Corrosion-Resistant: Constructed with stainless steel and a PTFE-sealed antenna for harsh chemical environments.
Broad Operating Temperature: Functions reliably from -30°C to +75°C, suitable for outdoor and industrial applications.

Out of stock

Get Notified When Available

Description

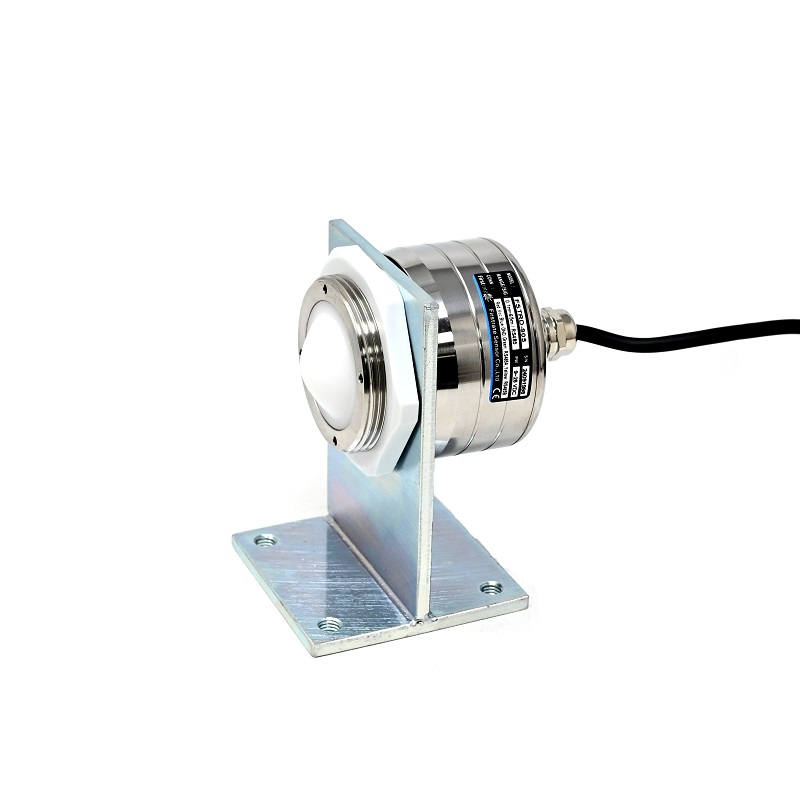

The FirstRate FSTRD-905A utilizes Frequency Modulated Continuous Wave (FMCW) radar technology at 76-81 GHz. This high-frequency operation results in a narrow beam angle, concentrated energy, and excellent signal-to-noise ratio, enabling precise level measurement even in the presence of surface turbulence, foam, vapor, or heavy dust. Its small antenna size and integrated mounting bracket facilitate quick, non-contact installation without the need for custom fabrication.

Designed for harsh industrial settings, the sensor features a stainless steel housing and a PTFE (Teflon)-encapsulated radar antenna, providing exceptional resistance to strong acids, alkalis, and other corrosive liquids. The integrated 10-meter cable and wide 9-30V DC input voltage range offer installation flexibility and compatibility with standard industrial power supplies.

Key Features

76-81 GHz FMCW Radar Technology for millimeter-level accuracy (±2mm) and a minimal 10cm blind zone.
Stainless Steel Housing & PTFE Antenna Seal ensures long-term durability in highly corrosive liquid applications.
RS485 Modbus Output enables stable, long-distance communication with industrial control and data acquisition systems.
Wide 9-30V DC Operating Voltage allows for direct connection to standard 12V or 24V industrial power rails.

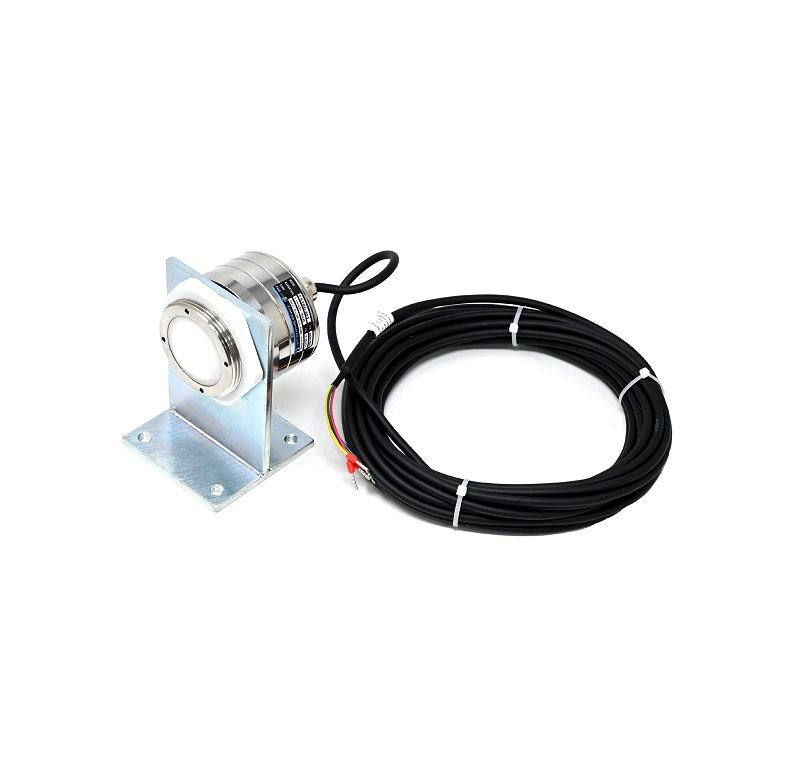

Integrated 10-meter Pre-wired Cable simplifies installation and provides immediate connectivity.
Broad -30°C to +75°C Operating Temperature Range guarantees performance in extreme environmental conditions.
Narrow Beam Angle minimizes interference from tank walls, agitators, or internal structures.
High Immunity to environmental factors like dust, steam, pressure changes, and surface foam.

Applications

Continuous level monitoring in chemical storage tanks containing acids, alkalis, and other corrosive liquids.
Inventory management and overfill prevention in fuel, water, and process liquid tanks.
Level control in industrial water/wastewater treatment basins and settling ponds.
Bulk solid and liquid level measurement in food & beverage, pharmaceutical, and power generation facilities.
Interface level detection between immiscible liquids in separators and storage vessels.

Technical Specifications

Model	FSTRD-905A
Measurement Principle	FMCW Radar (76-81 GHz)
Measuring Range	0.1 m to 65 m
Accuracy	±2 mm
Blind Zone	0.1 m (10 cm)
Output Signal	RS485 (Modbus)
Power Supply	9 - 30 V DC
Cable Length	10 m
Operating Temperature	-30°C to +75°C
Housing Material	Stainless Steel
Antenna Protection	PTFE (Teflon) Seal
Beam Angle	Narrow (Specific value N/A)

Frequently Asked Questions

What is the communication protocol for the FSTRD-905A sensor?

The sensor communicates via a standard RS485 interface using the Modbus protocol. This allows for easy integration with Programmable Logic Controllers (PLCs), SCADA systems, and industrial data acquisition units over long distances with high noise immunity.

What power supply does this radar level sensor require?

The sensor operates on a wide-range DC power supply of 9 to 30 volts. This makes it compatible with common industrial 12V and 24V DC power systems without requiring an additional voltage regulator, simplifying the installation process.

Is this sensor suitable for measuring corrosive liquids like acids?

Yes, the FSTRD-905A is specifically designed for harsh environments. Its housing is made of stainless steel, and the critical radar antenna is sealed with PTFE (Teflon), providing excellent resistance to strong acids, alkalis, and other highly corrosive chemicals.

What is the minimum distance (blind zone) from the sensor where it cannot measure?

The sensor has a very short blind zone of only 10 centimeters (0.1 meters) from the antenna face. This allows for accurate measurement in small tanks or applications where the liquid level can come very close to the sensor mounting point.

How is the sensor installed on a tank?

The sensor includes an integrated mounting bracket, eliminating the need for on-site fabrication. It is designed for non-contact installation, typically mounted on a tank's top nozzle or flange. The pre-attached 10-meter cable provides direct connection to your control system.
