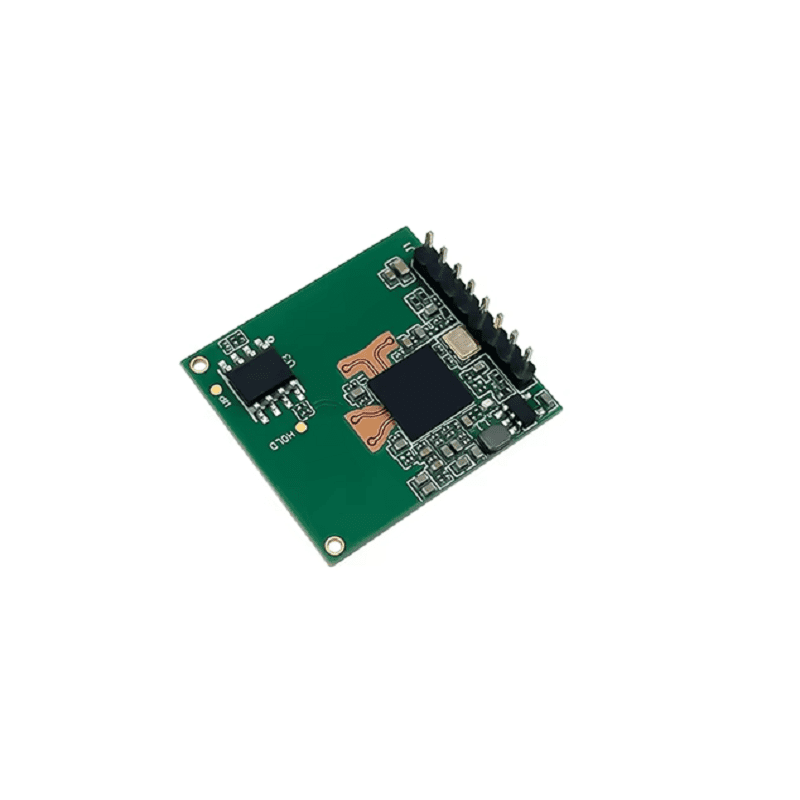

Hi-Link HLK-LD6002 60GHz FMCW Radar Heart Rate & Breathing Sensor Module
The Hi-Link HLK-LD6002 is a 60GHz FMCW radar sensor module designed for non-contact detection of human breathing and heart rate up to 1.5 meters. It integrates an ARM Cortex-M3 core and provides a UART interface for easy integration into health monitoring systems, smart home devices, and IoT applications.
Features
- 60GHz FMCW radar technology for precise non-contact vital sign detection.
- Measures both breathing rate and heart rate simultaneously at distances up to 1.5 meters.
- Integrated ARM Cortex-M3 processor with on-board signal processing algorithms.
- Universal UART communication interface with provided protocol for easy system integration.
- Compact module with 2T2R PCB microstrip antenna and 1MB flash memory for firmware.
Out of stock
The HLK-LD6002 module is built around the ADT6101P chip, which incorporates a complete 57–64GHz RF transceiver system. It utilizes Frequency-Modulated Continuous Wave (FMCW) radar principles to detect minute movements caused by chest displacement from breathing and heartbeats. The module processes the reflected radar echo with embedded algorithms to extract real-time respiratory and heart rate frequencies.
Designed for robustness, the module operates effectively in various environmental conditions. Its compact form factor and secondary development support via reserved I/O ports and communication interfaces make it suitable for integration into a wide range of embedded systems and final products requiring discreet, non-invasive vital sign monitoring.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 7 × 2 cm |
