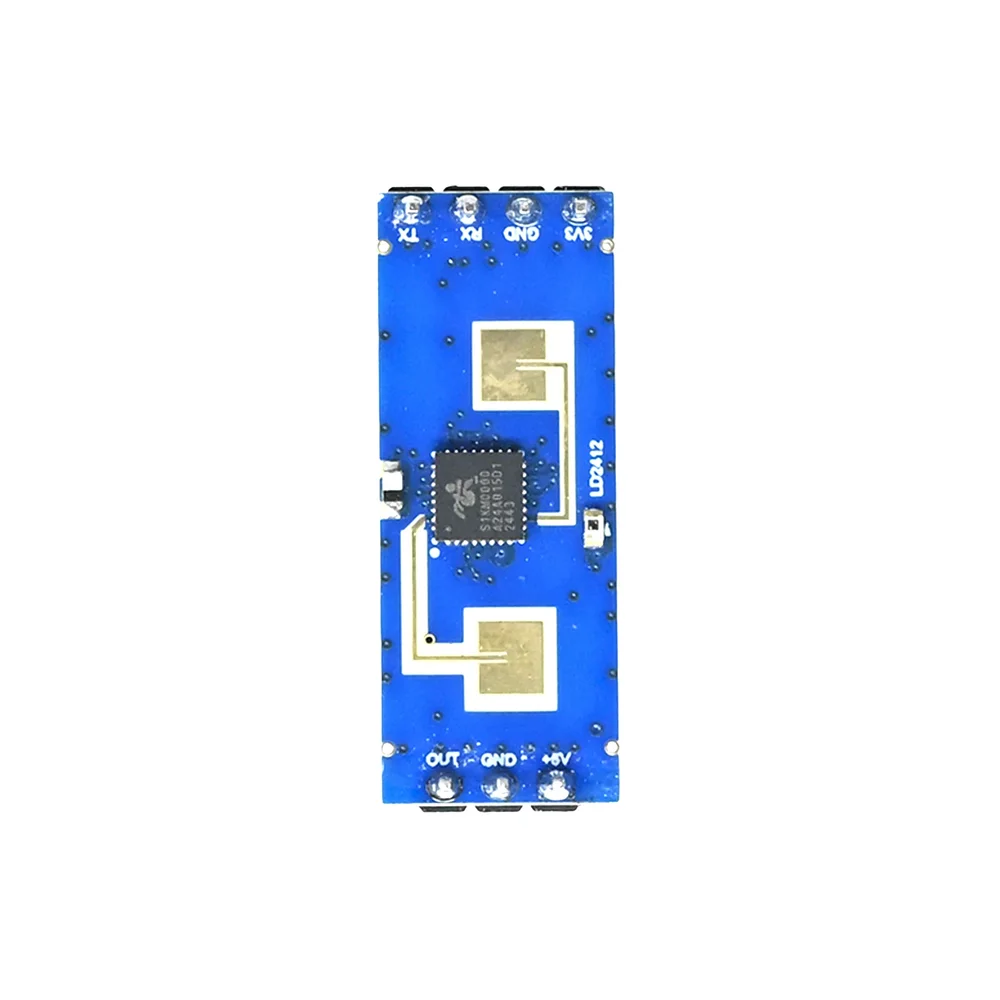

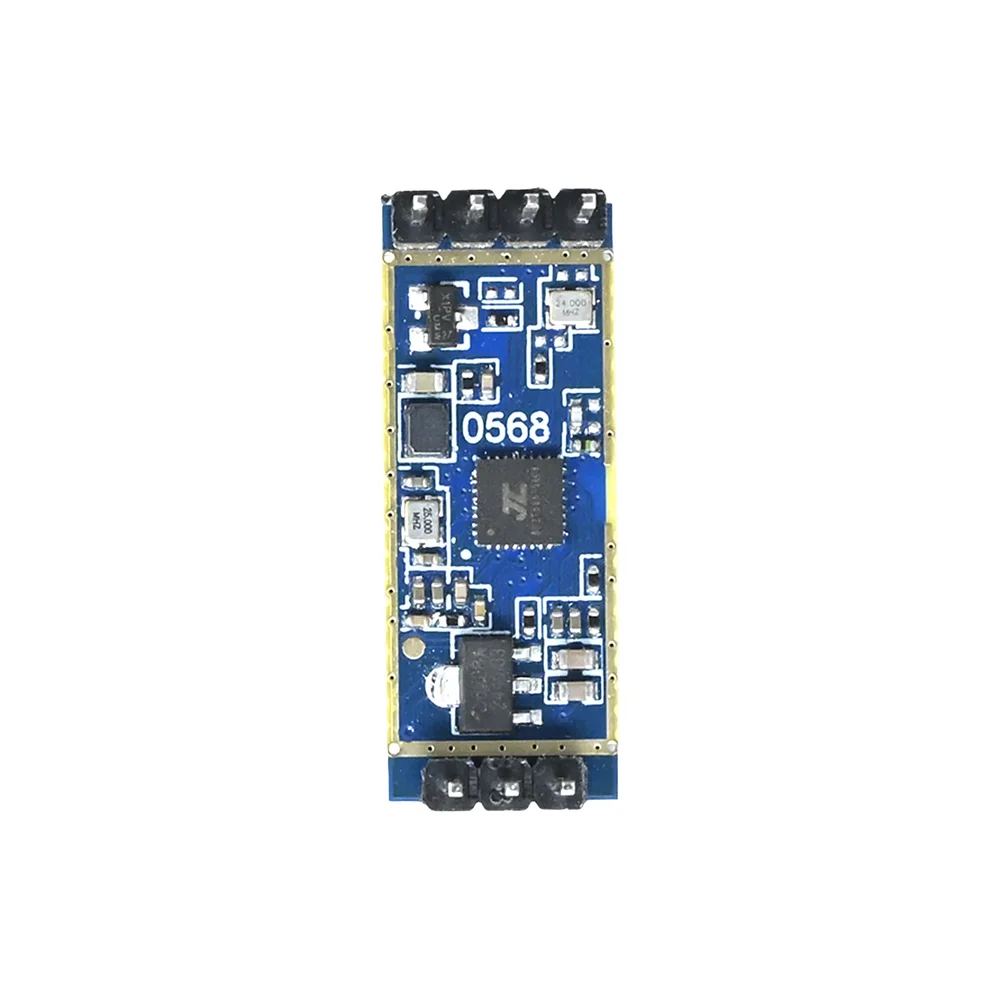

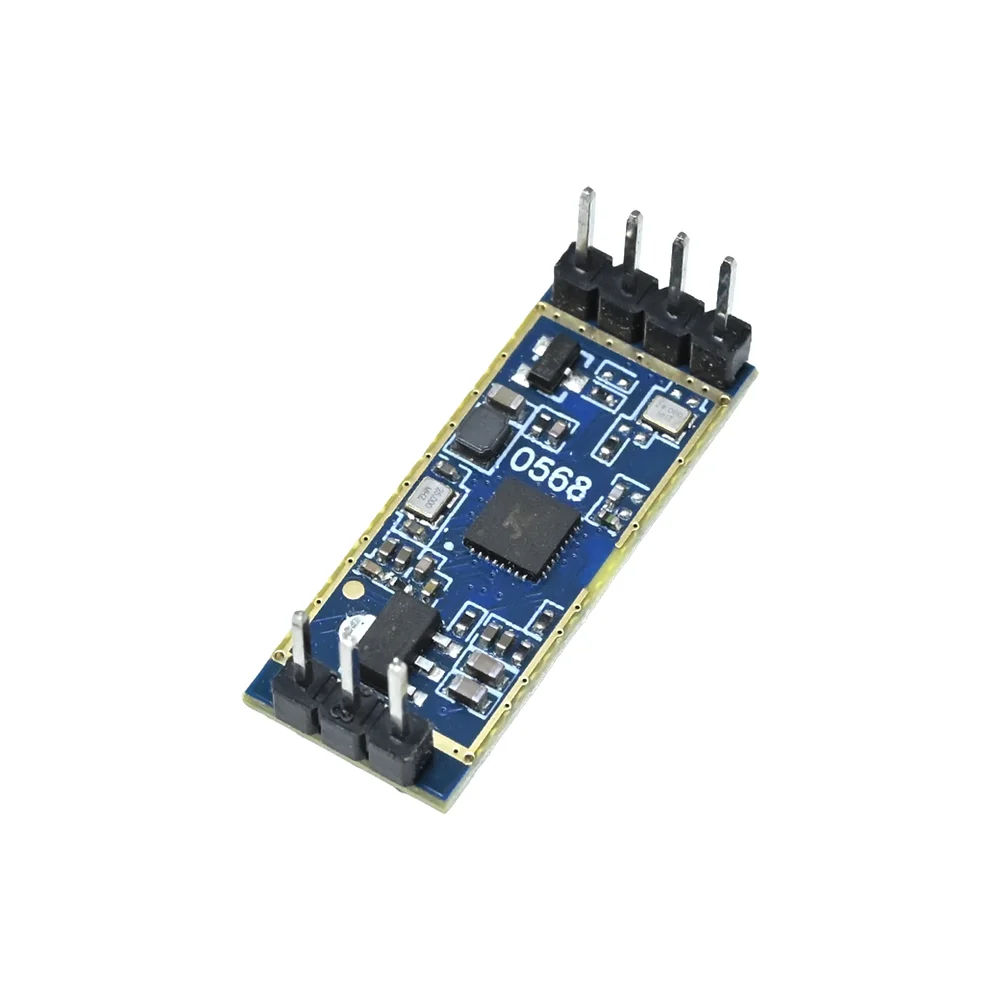

Hi-Link HLK-LD2412 24GHz Human Presence Radar Sensor - UART/GPIO Output
The Hi-Link HLK-LD2412 is a 24GHz FMCW radar module for high-sensitivity human presence detection, supporting both motion and static sensing up to 9 meters. It features UART and GPIO outputs for easy integration with microcontrollers like Arduino, ESP32, and Raspberry Pi for smart automation and security applications.
Features
- 24GHz FMCW radar technology for detecting both moving and stationary human presence.
- Maximum sensing range of 9 meters with a wide ±75° detection angle.
- Configurable via visual PC tool for distance zones, sensitivity, and delay settings.
- Dual output interfaces: UART for data and GPIO for trigger/alarm signals.
- Compact, ready-to-use module for plug-and-play integration into smart devices.
Out of stock
The HLK-LD2412 module utilizes Frequency Modulated Continuous Wave (FMCW) radar at 24GHz to penetrate common materials and detect subtle human movements and even stationary presence through micro-motions like breathing. Its advanced signal processing algorithms filter out environmental noise, providing reliable occupancy data for energy management and security systems.
Designed for indoor applications, the module outputs real-time target distance and motion state information. Its configurable parameters, including per-zone sensitivity and unmanned delay, allow for precise adaptation to specific room layouts and usage patterns, minimizing false triggers.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 7 × 10 × 2 cm |
