Hi-Link HLK-LD7901B Liquid Level Detection Radar Sensor (79GHz ~ 81GHz)
The Hi-Link HLK-LD7901B is a 79GHz millimeter-wave radar sensor designed for precise liquid level detection, offering millimeter-level accuracy over a range of 0.15m to 15m. It integrates a digital signal processor and controller, providing a configurable output suitable for integration with industrial PLCs, SCADA systems, and data loggers via its serial interface.
Features
- 79GHz to 81GHz millimeter-wave radar technology for high-precision, non-contact liquid level measurement.
- Millimeter-level ranging accuracy with a configurable update rate up to 10Hz for dynamic monitoring.
- Integrated digital signal processor (DSP) and controller onboard for advanced radar signal processing.
- Narrow beam design enhances anti-interference capability and extends reliable detection distance.
- Compact, integrated module suitable for industrial tank monitoring, wastewater management, and hydrological applications.
Out of stock
The HLK-LD7901B operates on the Frequency Modulated Continuous Wave (FMCW) principle within the 79-81GHz band, enabling it to achieve millimeter-level accuracy even in challenging environmental conditions. Its high-frequency, narrow-beam design minimizes interference from tank walls, foam, or surface turbulence, ensuring stable and reliable readings.

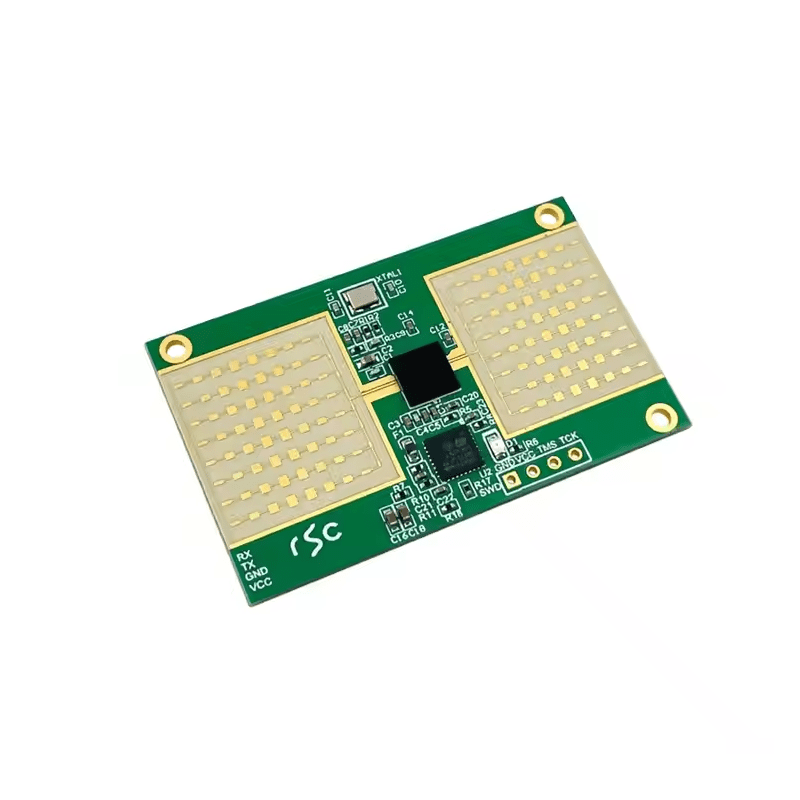

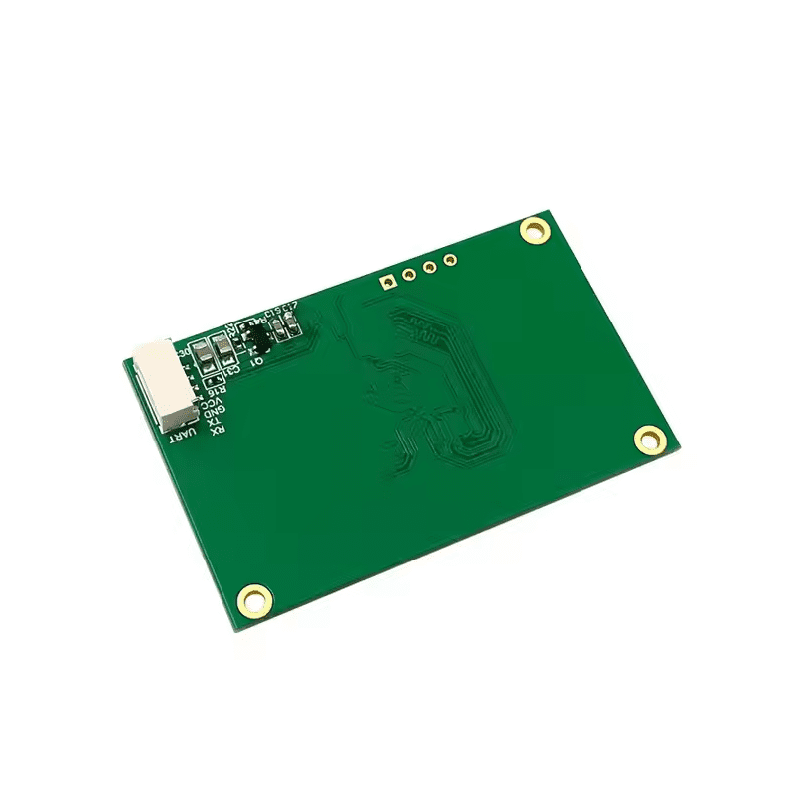

This sensor module is fully integrated, housing the RF front-end, signal processor, and control logic on a single board. It outputs processed distance data via a serial communication interface (typically UART), making it directly compatible with most industrial control systems and microcontrollers without requiring complex external signal conditioning.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 7 × 2 cm |
