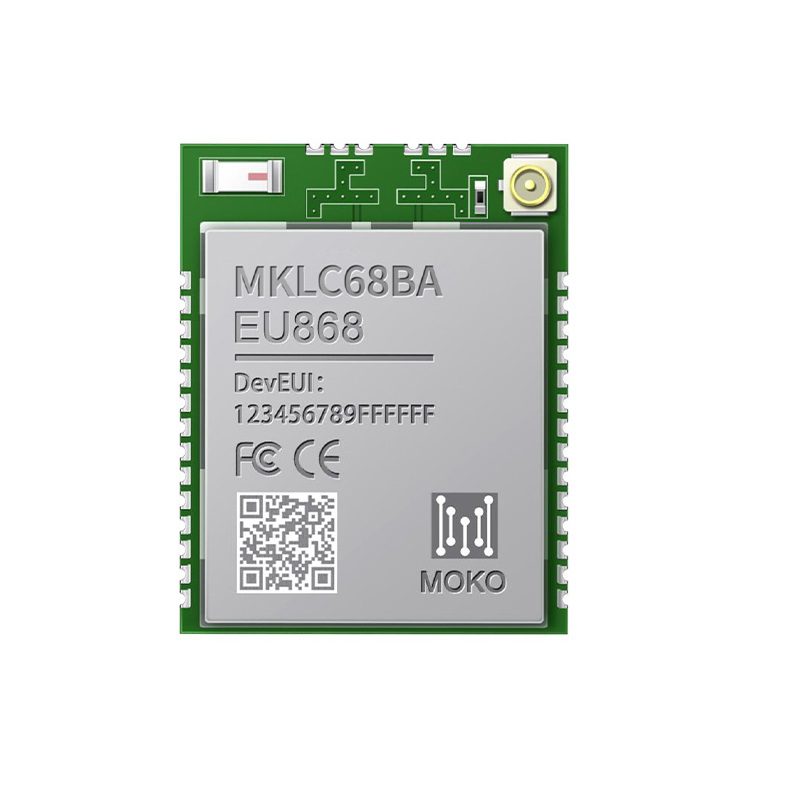

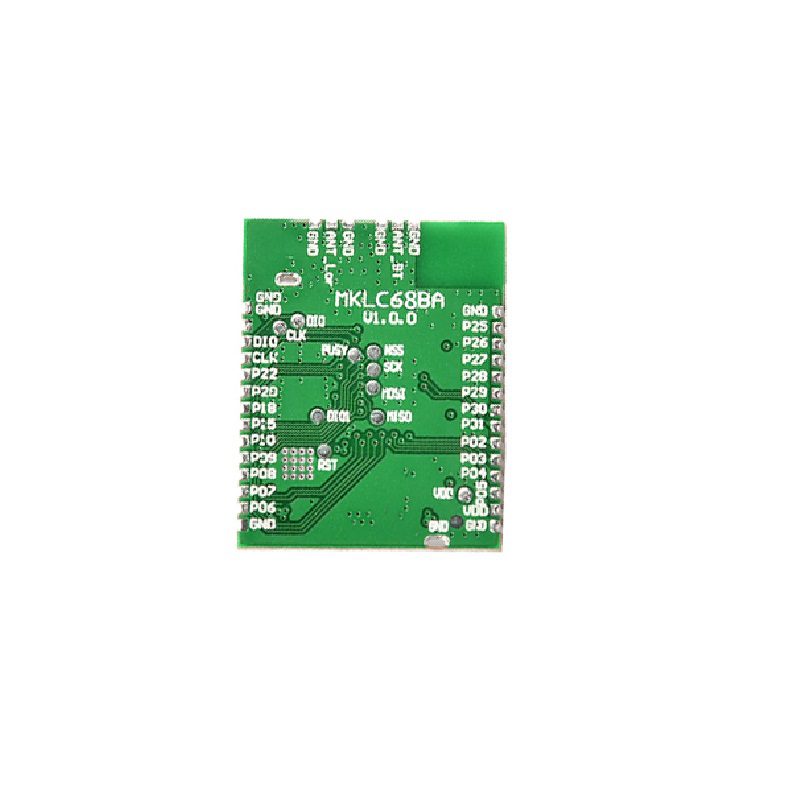

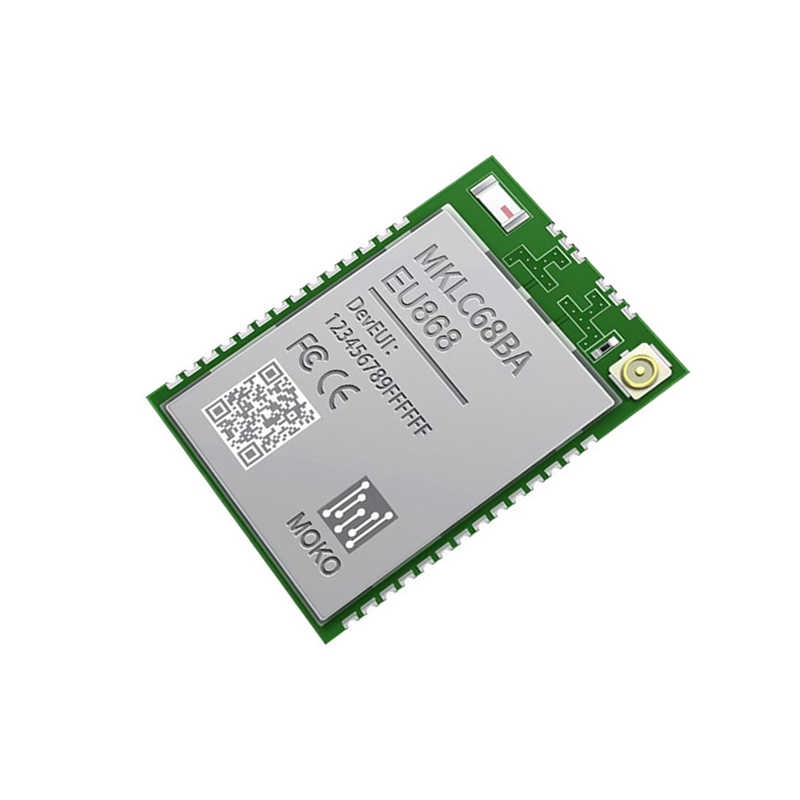

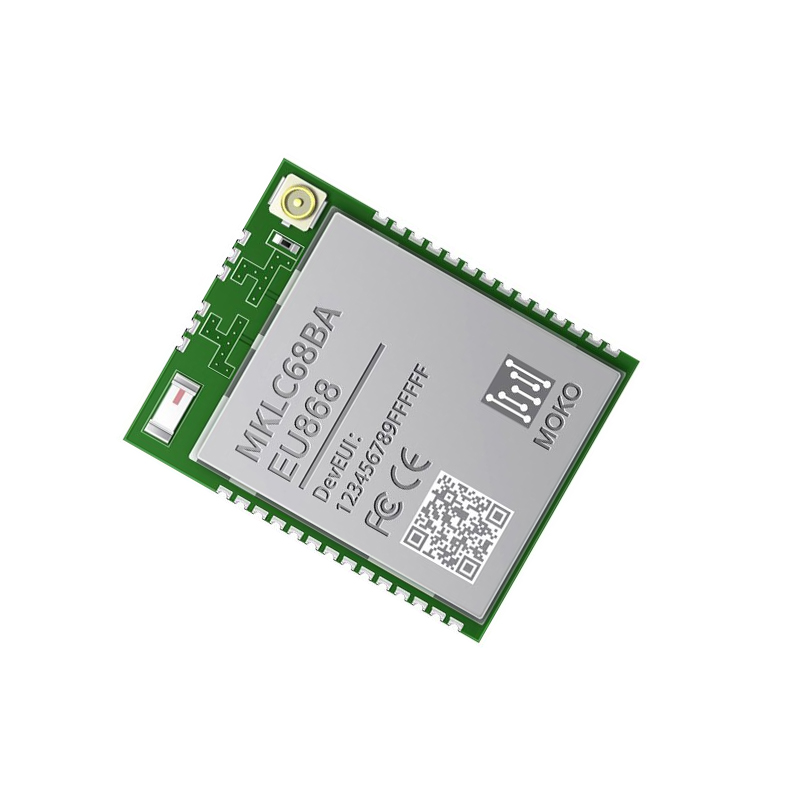

MOKO Smart Smart MKL68BA-EU868 LoRaWAN Node Module with BLE 4.0 - EU868/IN865 Frequency, U.FL Antenna
The MOKO Smart Smart MKL68BA-EU868 is a compact, low-power LoRaWAN node module integrating Semtech’s LLCC68 for long-range LoRa communication and Nordic Semiconductor’s nRF52832 for Bluetooth 4.0 (BLE). It supports the EU868/IN865 frequency bands and is designed for IoT applications requiring extended range and ultra-low power consumption.
Features
- Integrates Semtech LLCC68 LoRa transceiver and Nordic Semiconductor nRF52832 BLE SoC for dual-mode communication.
- Supports LoRaWAN v1.0.3 protocol with a maximum range of up to 7 km in open space.
- Features ultra-low power consumption with a sleep current of just 7 µA.
- Operates on the EU868/IN865 frequency bands with a maximum TX power of 21 dBm.
- Compact 24mm x 19mm footprint with a U.FL connector for an external LoRa antenna.
Out of stock
The MKL68BA-EU868 module is engineered for robust, long-range IoT connectivity. It combines the Semtech LLCC68 LoRa transceiver, which provides spread-spectrum modulation for excellent interference immunity and link budget, with the Nordic Semiconductor nRF52832 system-on-chip for Bluetooth Low Energy (BLE) 4.0 connectivity. This dual-radio architecture allows for flexible network topologies, where BLE can be used for local configuration and LoRaWAN for wide-area data backhaul.
Operating from a 1.75V to 3.6V DC supply, the module is optimized for battery-powered applications. Its industrial-grade operating temperature range of -40°C to +85°C ensures reliable performance in harsh environmental conditions. The inclusion of a U.FL connector allows for the attachment of an external, high-gain antenna to maximize the LoRa communication range.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 2.4 × 1.9 × 0.28 cm |
