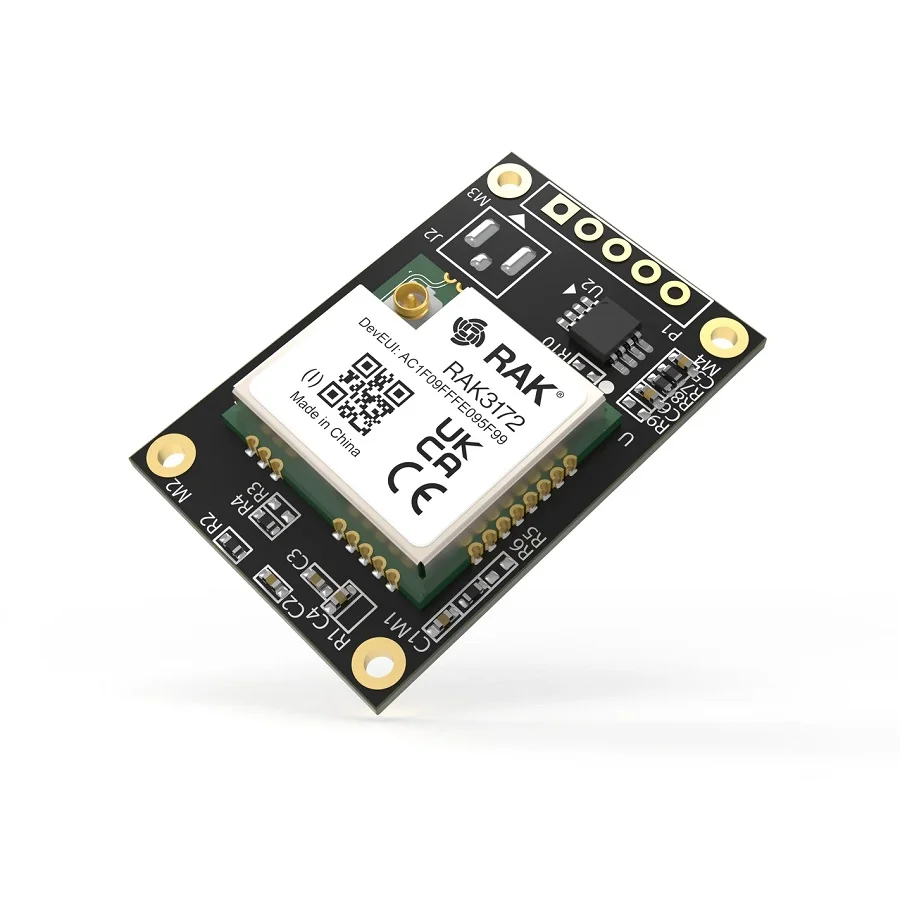

RAKwireless WisBlock LPWAN Module RAK3172 / RUI3 / IN865
RAKwireless WisBlock LPWAN Module RAK3172 / RUI3 / IN865 - Image 2
SKU: IOWC-1202
📋 GST Invoice Available

RAKwireless WisBlock LPWAN Module RAK3172 / RUI3 / IN865

₹1,799.00 (Inclusive of all taxes)
Out of Stock

The RAKwireless WisBlock LPWAN Module RAK3172 is an STM32WLE5CC-based LoRaWAN node operating on the IN865 frequency band, pre-flashed with the RUI3 firmware for simplified development of Class A, B, and C IoT applications requiring long-range, low-power connectivity.

Features

  • STM32WLE5CC LoRa Transceiver: Integrates a powerful Arm Cortex-M4 core with a Semtech LoRa modem for efficient wireless processing and communication.
  • RAK Unified Interface V3 (RUI3): Streamlines firmware development with a simplified API, supporting over-the-air updates and easy integration with sensors.
  • IN865 Regional Frequency Band: Optimized for LoRaWAN operation in India and compatible regions, ensuring regulatory compliance.
  • WisBlock Modular Design: Enables rapid prototyping and deployment by snapping onto a wide range of WisBlock baseboards and sensor modules.
  • Ultra-Low Power Operation: Engineered for battery-powered IoT deployments in smart agriculture, environmental monitoring, and asset tracking.

Out of stock

Description

The RAK3172 WisBlock LPWAN Module is a core wireless node built around the STM32WLE5CC system-on-chip, which combines an Arm Cortex-M4 microcontroller with a Semtech LoRa transceiver. This integration allows developers to execute application logic and manage long-range, sub-GHz LoRaWAN communication from a single, power-efficient chip. The module is pre-configured for the IN865 frequency plan, making it a ready solution for deployments in India and other regions using this band.

Out of the box, the module runs RAKwireless’s RUI3 firmware, an abstraction layer that simplifies coding by providing a unified set of AT commands and C++ APIs for handling LoRaWAN joins, data transmission, and power management. This significantly reduces development time compared to working directly with the LoRaMAC stack. The WisBlock form factor ensures easy integration; the module plugs directly into compatible WisBlock baseboards, providing immediate access to I2C, SPI, UART, ADC, and GPIO interfaces for connecting sensors and peripherals without complex soldering.

Key Features

  • Integrated MCU & LoRa Modem: The STM32WLE5CC SoC provides a 48MHz Cortex-M4 core and a Semtech SX126x-compatible LoRa transceiver in one package, reducing board complexity.
  • RUI3 Development Framework: Accelerate project timelines with a high-level API for network operations, sleep management, and peripheral control, compatible with the Arduino IDE.
  • Full LoRaWAN Protocol Support: Certified for LoRaWAN 1.0.3 specification, supporting Class A (mandatory), Class B (beacon-enabled), and Class C (continuously listening) device operation.
  • Optimized for IN865 Spectrum: Hardware is tuned for the 865-867 MHz band, adhering to regional duty cycle and transmission power regulations.
  • Modular & Expandable WisBlock Ecosystem: Snap this core module onto any WisBlock Base board to instantly create a complete sensor node or actuator controller.
  • Industrial-Grade Reliability: Designed for stable operation in extended temperature ranges, suitable for outdoor and harsh environment deployments.

Applications

  • Smart Agriculture: Soil moisture, temperature, and humidity monitoring across large farms with gateway connectivity.
  • Environmental Sensing: Deploying remote air quality, water level, or weather stations in areas without cellular coverage.
  • Asset & Logistics Tracking: Monitoring the location and condition of pallets, containers, or vehicles over wide geographical areas.
  • Industrial IoT (IIoT) Telemetry: Wireless collection of data from meters, pumps, or storage tanks in industrial facilities.
  • Smart City Infrastructure: Enabling connected waste management, smart parking, or streetlight monitoring systems.

Technical Specifications

Microcontroller / SoCSTM32WLE5CC (Arm Cortex-M4 @ 48MHz)
Wireless ProtocolLoRa, LoRaWAN 1.0.3 (Class A, B, C)
Frequency RangeIN865 (865-867 MHz)
RF Transmit PowerUp to +22 dBm (typical)
Supply Voltage2.0 V - 3.6 V
InterfacesI2C, SPI, UART, GPIO, ADC (via WisBlock connector)
Antenna ConnectorIntegrated PCB antenna or U.FL connector (region dependent)
Operating Temperature-40°C to +85°C
DimensionsApprox. 30 x 35 mm (WisBlock standard)

Frequently Asked Questions

How do I start programming the RAK3172 module with the RUI3 framework?

Install the RAKwireless Arduino core via the Boards Manager in the Arduino IDE. Select 'RAK3172 (WisBlock)' as your board. Use the provided RUI3 APIs like `api.system` and `api.lorawan` in your sketch to manage sleep modes, read sensors, and send LoRaWAN packets without directly handling complex LoRaMAC stack functions. This abstraction significantly speeds up development.

What is the power consumption profile of the RAK3172 in deep sleep mode?

The RAK3172, leveraging the low-power modes of the STM32WLE5CC, can achieve deep sleep currents below 2 µA when peripherals are disabled. Actual consumption depends on your specific configuration, including retained GPIO states and the sleep duration set via the RUI3 `api.system.sleep()` function. For battery life calculations, measure current draw in your final application circuit.

Can I use this IN865 module with a LoRaWAN network server in another region?

No, the RAK3172 module variant specified is hardware-configured for the IN865 frequency band (865-867 MHz). It will not operate correctly on other regional bands like EU868, US915, or AS923. You must ensure your LoRaWAN gateway also supports the IN865 spectrum and that your network server (e.g., The Things Stack) is configured for the same region.

How do I connect external sensors to the RAK3172 WisBlock module?

You need a WisBlock Base board (e.g., RAK5005-O). Plug the RAK3172 into the module slot on the base. Sensors from the WisBlock ecosystem (e.g., RAK1901 temperature) connect via the dedicated sensor slots using the same plug-and-play connector. For custom sensors, use the pinout of the base board's IO slot, which breaks out I2C, SPI, UART, and analog pins.

Package Includes

  • 1 x RAKwireless WisBlock LPWAN Module RAK3172 (RAK3372)

Additional Information

Weight 0.003 kg
Dimensions 12 × 8 × 1 cm

Related Products

Out of Stock

Elecrow nRFLR1121 Wireless Transceiver Module w/ nRF52840 & SX1121

1,609.00
Learn More
Out of Stock

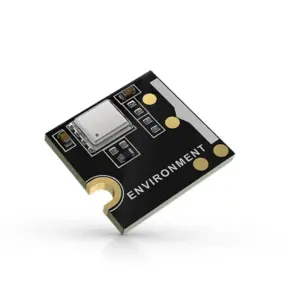

RAKwireless WisBlock Environmental Sensor RAK1906 w/ BME680

2,079.00
Learn More
Out of Stock

RAKwireless WisBlock Base Board 2nd Gen RAK19007

1,619.00
Learn More
Out of Stock

RAKwireless RAK3272S WisDuo Breakout Board /RUI3/ 8XX MHz EU868/RU864/IN865

2,429.00
Learn More
Out of Stock

Elecrow nRFLRCC68 Wireless Transceiver Module w/ nRF52840 & LLCC68

819.00
Learn More
Out of Stock

RAKwireless Link.ONE LoRaWAN Node 800MHz EU868/RU864/IN865 w/ nRF52840

6,229.00
Learn More
Out of Stock

Seeed Studio Studio WM1302 LoRaWAN Gateway Hat for Raspberry Pi

2,099.00
Learn More
Out of Stock

RAKwireless WisBlock LoRa Module RAK11300 800MHz EU868/RU864/IN865

1,159.00
Learn More
Out of Stock

RAKwireless WisDuo Breakout Board RAK11721 800MHz (EU868/RU864/IN865)

2,849.00
Learn More
Out of Stock

MacSync RS485 Analog to LoRaWAN Datalogger w/ Battery

8,213.00
Learn More
Out of Stock

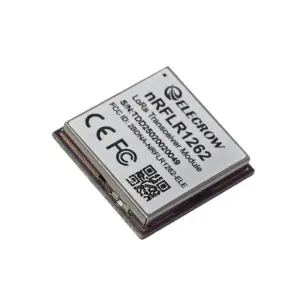

Elecrow nRFLR1262 Wireless Transceiver Module - nRF52840 & SX1262

1,349.00
Learn More
Out of Stock

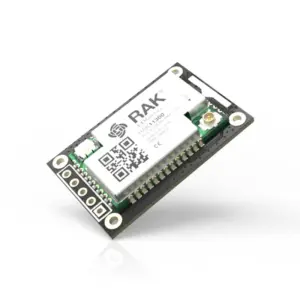

RAKwireless WisBlock LoRa Module RAK11310 /IN865
