RAKwireless RAK19009+RAK19012 WisBlock Base & USB LiPo Solar Power Slot Module
The RAK19009 WisBlock Base Board provides a compact, modular foundation for WisBlock systems, connecting a Core module, a Power module, and up to two I/O modules via high-speed board-to-board connectors. Paired with the RAK19012 USB LiPo Solar Power Slot Module, it offers flexible power management with USB-C programming, onboard battery charging, and solar input for low-power IoT deployments.
Features
- Modular IoT Foundation: RAK19009 base board hosts one WisBlock Core slot and two I/O module slots (C & D) for sensor and peripheral expansion.
- Integrated Power Management: RAK19012 module provides USB-C debugging, LiPo battery charging, and solar panel input for off-grid applications.
- Secure & Reliable Connections: High-speed board-to-board connectors and screw-fixed modules ensure stable operation in high-vibration industrial environments.
- Compact Form Factor: Combined dimensions of 31 x 38 mm make this kit ideal for space-constrained enclosures and portable sensor nodes.
- Flexible Power Options: Supports external Power Board linking, onboard battery management, and solar harvesting for energy-efficient, always-on sensing.
Out of stock

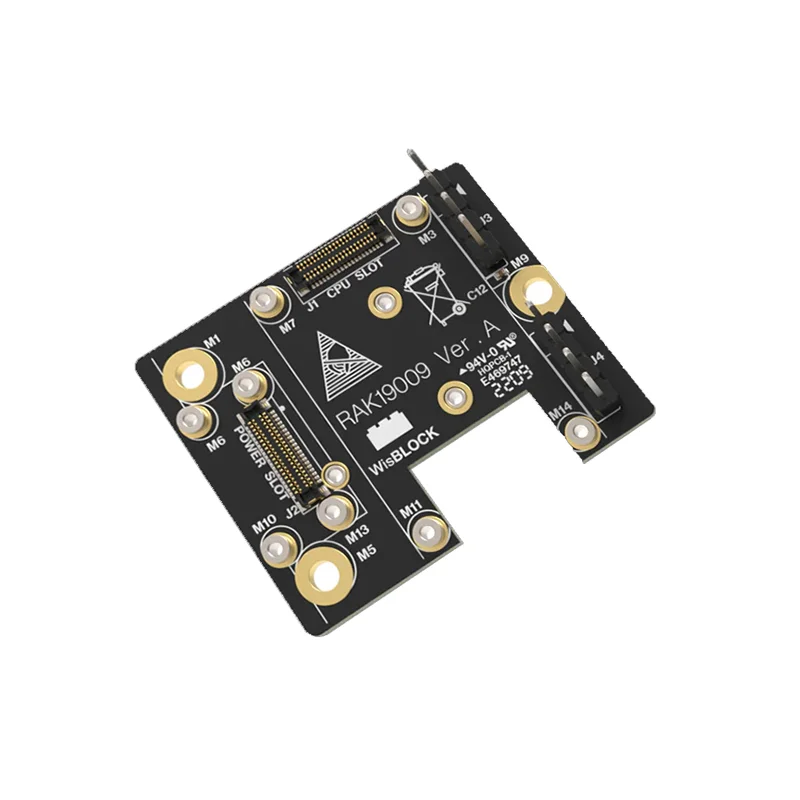

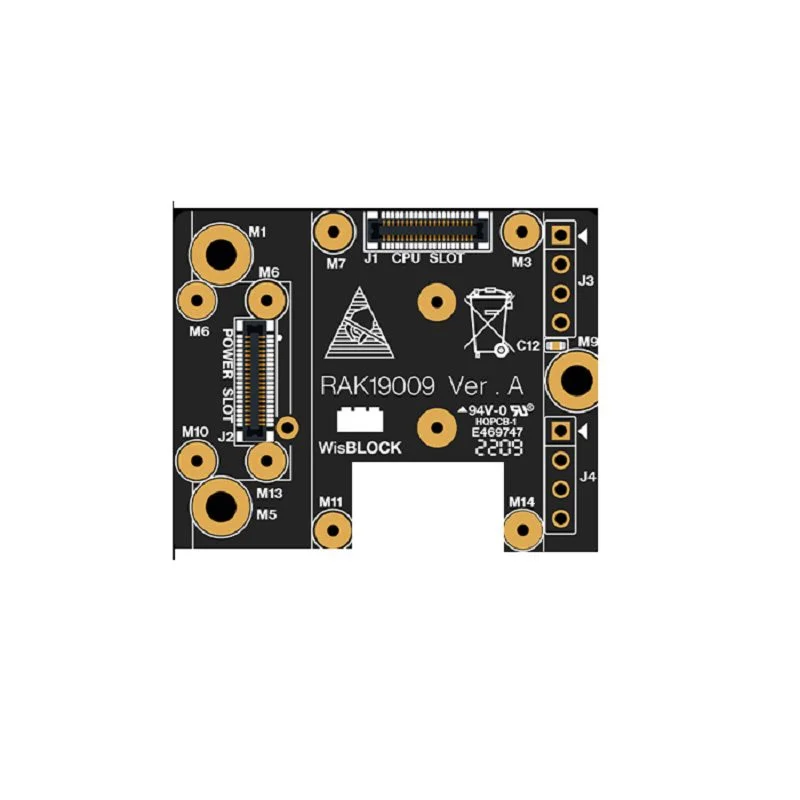

The RAK19009 WisBlock Base Board serves as the structural and electrical backbone for modular WisBlock IoT systems. It features dedicated mounting slots for a WisBlock Core module and a Power module on its top side, with two additional high-speed connectors (Slots C and D) on the bottom for I/O expansion. Slot C accommodates modules up to 23mm in height, while Slot D supports modules up to 10mm, enabling versatile sensor and communication stack-ups. The board utilizes robust board-to-board connectors and mechanical screw fixation to maintain signal integrity and module security, even in environments subject to shock and vibration.

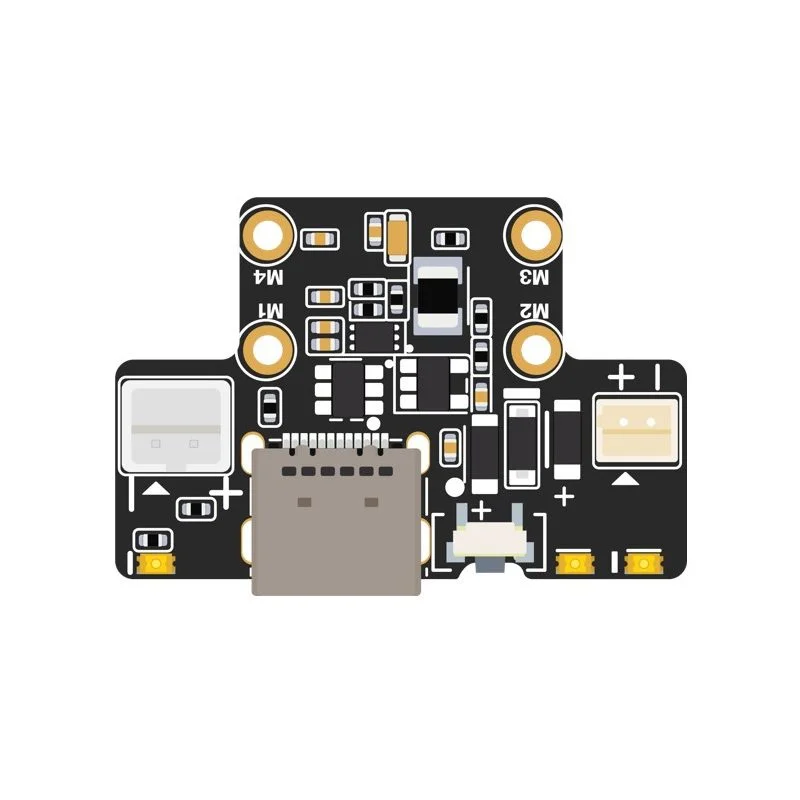

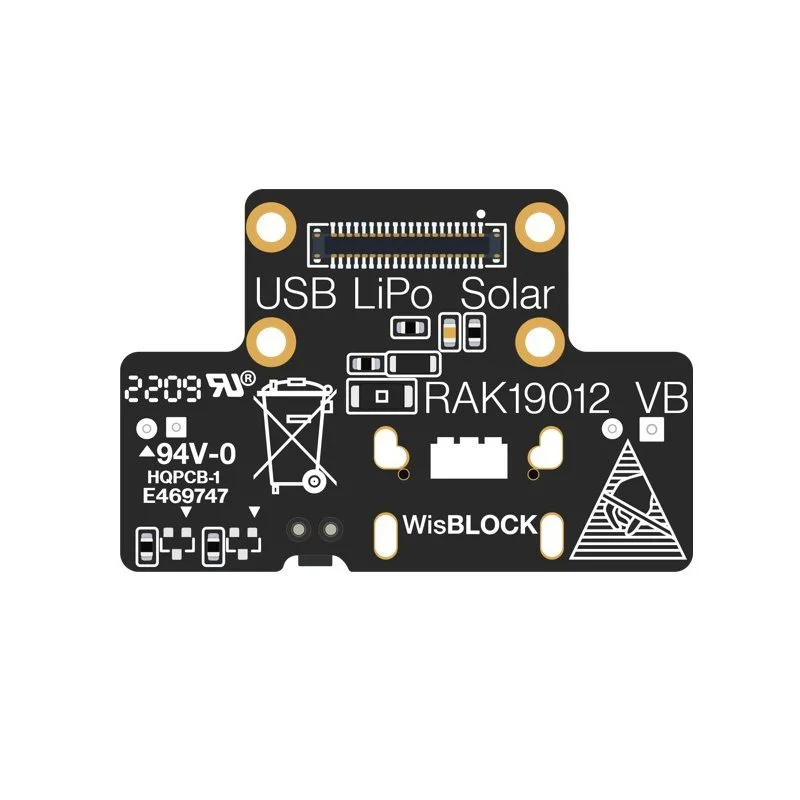

Complementing the base, the RAK19012 WisBlock USB LiPo Solar Power Slot Module delivers comprehensive power management and system control. It integrates a USB-C port for direct firmware uploads and serial debugging, an onboard battery charger chip for single-cell LiPo management (up to 4.2V charging voltage), and a dedicated input for solar panel energy harvesting. The module also provides user-configurable LEDs, a reset button, and a power connector to seamlessly link with the WisBlock Base, forming a complete, low-power development platform ready for field deployment.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 3.8 × 3.1 cm |
