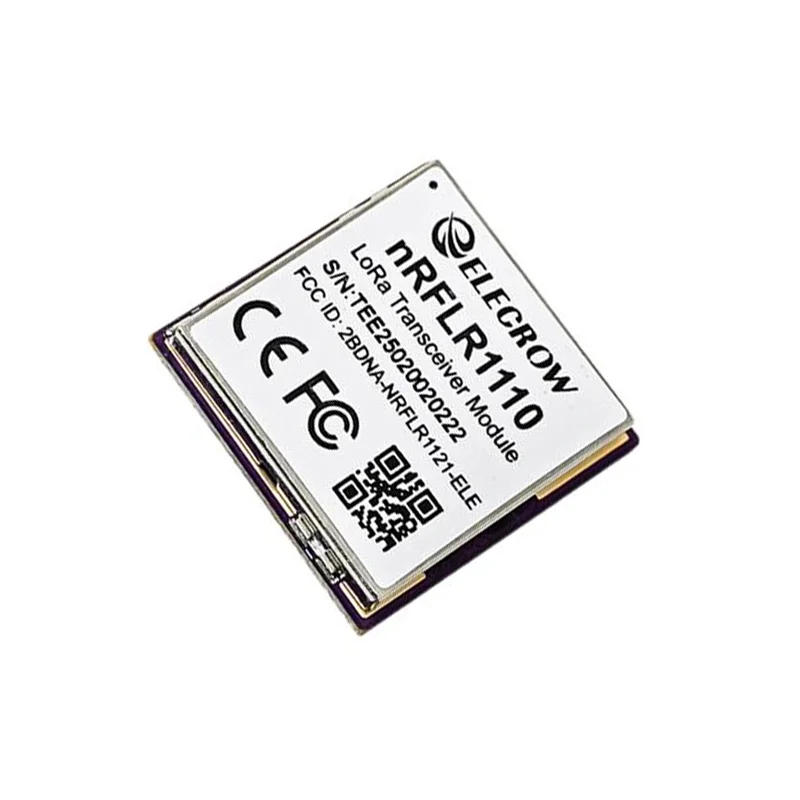

Elecrow nRFLR1110 Wireless Transceiver Module w/ nRF52840 & LR1110

Name: Elecrow nRFLR1110 Wireless Transceiver Module w/ nRF52840 &amp; LR1110
Brand: Elecrow
SKU: IOWC-0097
Price: 1379.00 INR
Availability: OutOfStock

₹1,379.00 (Inclusive of all taxes)

Out of Stock

The Elecrow nRFLR1110 is a compact wireless transceiver module integrating the Nordic Semiconductor nRF52840 SoC and Semtech LR1110 LoRa chip, designed for ultra-long-range, low-power IoT applications. It supports global LoRaWAN bands (850–930MHz), Bluetooth 5.3, GNSS, and Wi-Fi scanning for comprehensive connectivity and positioning.

Features

Integrated Nordic Semiconductor nRF52840 SoC & Semtech LR1110 LoRa chip for multi-protocol (LoRaWAN, BLE 5.3, Zigbee, Thread) operation.
Ultra-long-range communication up to 10km with +20dBm TX power and -141dBm sensitivity for robust outdoor links.
Advanced positioning suite with built-in GNSS (GPS/Beidou) and Wi-Fi/Bluetooth scanning for hybrid indoor/outdoor tracking.
Extremely low power consumption at 6µA in sleep mode, ideal for battery-powered remote sensors and trackers.
Developer-friendly with AT command firmware and rich GPIO interfaces (UART, I2C, ADC) for rapid prototyping and deployment.

Out of stock

Get Notified When Available

Description

The Elecrow nRFLR1110 Wireless Transceiver Module is a highly integrated solution combining the processing and short-range wireless capabilities of the Nordic Semiconductor nRF52840 with the sub-GHz long-range power of the Semtech LR1110. This architecture enables a single module to handle complex IoT tasks, from secure LoRaWAN Class A/B/C communication over distances up to 10km to local Bluetooth Mesh networking and precise geolocation.

Engineered for ultra-low-power operation, the module features a deep sleep current of just 6µA, making it a cornerstone for solar-powered or long-life battery deployments in smart agriculture, asset tracking, and environmental monitoring. Its support for global ISM bands from 850MHz to 930MHz ensures compliance and interoperability across different regional LoRaWAN networks.

The module’s compact 20x20mm footprint and comprehensive feature set, including NFC and Thread protocol support, provide system integrators and developers with a versatile foundation for building next-generation LPWAN and wireless mesh solutions without the complexity of managing multiple discrete RF components.

Key Features

Dual-chip architecture integrates Nordic Semiconductor nRF52840 (Cortex-M4, Bluetooth 5.3) and Semtech LR1110 (LoRa transceiver & GNSS).
Supports full LoRaWAN 1.0.4 protocol stack (Classes A, B, C) for flexible network communication modes.
Hybrid positioning system combines GNSS satellite fixes with Wi-Fi and Bluetooth signal scanning for accurate location data anywhere.
Multi-protocol radio supports concurrent or selectable operation across LoRa, Bluetooth Mesh, Zigbee, Thread, and NFC.
Ultra-low-power design with configurable sleep modes enables multi-year operation from a single battery cell.
Pre-loaded AT command firmware simplifies initial setup and integration, reducing development time for common tasks.
Rich set of hardware interfaces including UART, I2C, SPI, and ADC pins for connecting sensors, actuators, and peripherals.
Industrial-grade build quality with an extended operating temperature range and FCC/CE/RoHS certifications for global deployment.

Applications

Smart City Infrastructure: Remote meter reading, smart parking, waste management, and environmental sensor nodes.
Precision Agriculture: Soil moisture monitoring, livestock tracking, and automated irrigation control systems.
Logistics & Supply Chain: Real-time asset tracking, container monitoring, and cold chain integrity verification.
Industrial IoT (IIoT): Wireless telemetry for equipment health monitoring, predictive maintenance, and remote control.
Personal Safety & Wearables: Lone worker devices, pet trackers, and emergency location beacons with long battery life.

Technical Specifications

Microcontroller/SoC	Nordic Semiconductor nRF52840 (Cortex-M4F 64MHz) + Semtech LR1110
Wireless Protocols	LoRa/LoRaWAN, Bluetooth 5.3/BLE/Mesh, Zigbee, Thread, NFC
Frequency Range	850–930 MHz (LoRa), 2.4 GHz (BLE/Zigbee)
RF Transmit Power	Up to +20 dBm (LoRa)
RF Sensitivity	-141 dBm (LoRa)
Supply Voltage	1.8V – 3.7V
Operating Current	Varies with mode; Sleep Current: 6 µA
Interfaces	UART, I2C, SPI, ADC, GPIO, NFC antenna
Antenna Connector	Integrated PCB antenna or external via pad (LoRa & BLE)
Positioning	GNSS (GPS/Beidou), Wi-Fi Scan, Bluetooth Scan
Operating Temperature	Industrial range (typically -40°C to +85°C)
Dimensions	20 x 20 x 3.5 mm

Frequently Asked Questions

How do I program or configure the nRFLR1110 module?

The module comes pre-loaded with AT command firmware accessible via its UART interface (default baud rate typically 115200). You can configure LoRaWAN parameters (DevEUI, AppKey), set GNSS modes, and control BLE using simple ASCII commands. For advanced custom firmware, you can develop using Nordic Semiconductor's nRF Connect SDK or Zephyr RTOS, targeting the nRF52840 core and utilizing its libraries to control the connected LR1110 chip via SPI.

What is the power supply requirement and how do I achieve the 6µA sleep current?

The module operates from a single-cell Li-ion or LiPo battery with a voltage range of 1.8V to 3.7V. To achieve the specified 6µA deep sleep current, you must properly configure the nRF52840 into its System OFF or lowest power sleep mode using firmware. Ensure all unused GPIOs are set to a defined state (output low/high or input with pull) and that the LR1110 sub-GHz radio is also put into its hibernation or sleep mode via command before entering the MCU's deep sleep.

Can I use an external antenna for better LoRa or GNSS performance?

Yes, the module's PCB layout includes pads for connecting external antennas. For LoRa, you can solder a wire or connector to the designated RF_OUT pad, ensuring impedance matching to 50 ohms. For the GNSS functionality on the LR1110 chip, an external active GNSS antenna can be connected to its dedicated RF_IN_GNSS pad, requiring a 3.3V bias tee to power the active antenna element. Always refer to the official pin definition diagram for exact pad locations.
