Generic LoRa 915MHz Shield for LilyGO T-SIM7000G Module
This unsoldered LoRa 915MHz shield adds long-range, low-power LoRa connectivity to LilyGO T-SIM7000G modules, enabling hybrid cellular/LoRa IoT projects with Arduino IDE compatibility.
Features
- Adds SX1276-based LoRa (915MHz) connectivity to LilyGO T-SIM7000G cellular modules for dual-network IoT solutions.
- Features high RF sensitivity (-148 dBm) and +20 dBm output power for extended communication range.
- Designed for easy integration with onboard IPEX antenna connector and 3.3-7V wide voltage input.
- Perfectly supports the Arduino development environment for rapid prototyping and firmware deployment.
- Unsoldered design provides flexibility for custom pin header installation based on project requirements.
Out of stock

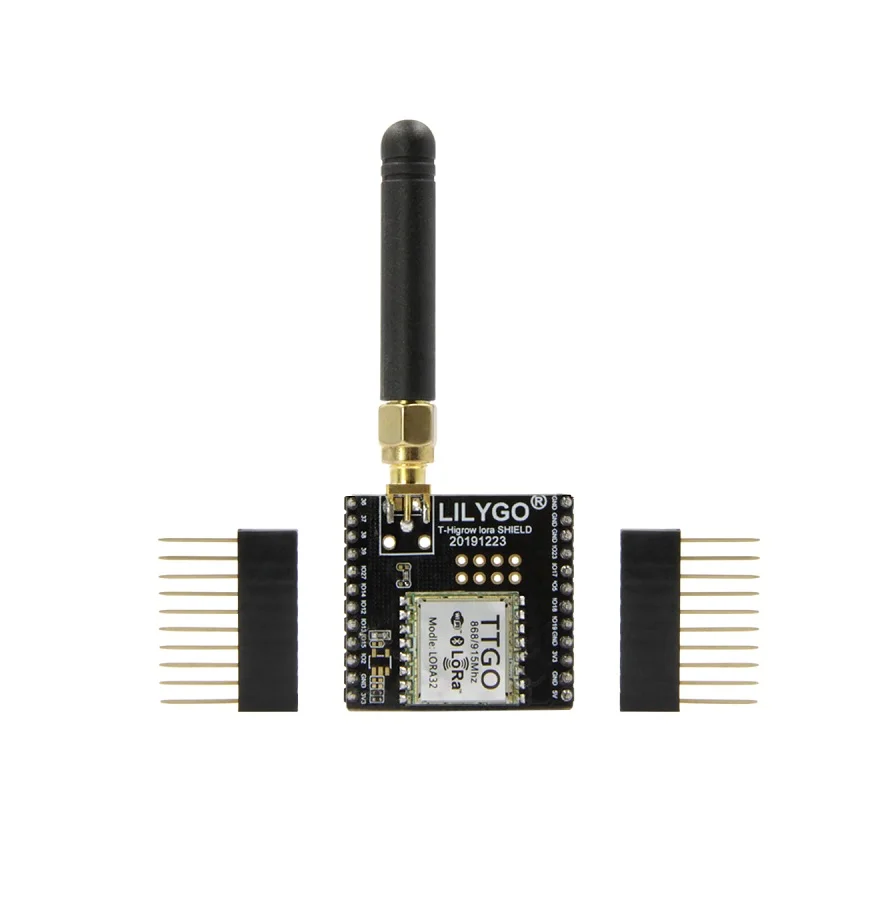

This LoRa 915MHz expansion shield is engineered to seamlessly integrate with the LilyGO T-SIM7000G module, creating a powerful dual-radio IoT node combining 4G LTE cellular and long-range LoRa connectivity. Based on the Semtech SX1276 transceiver, it operates in the 915MHz ISM band, delivering robust communication with high sensitivity and configurable output power for challenging environments.
The board requires manual soldering of pin headers, offering makers and developers the flexibility to choose their preferred connector orientation and height. It includes an IPEX connector for an external antenna, crucial for optimizing the LoRa link budget. With wide 3.3-7V input voltage compatibility, it can be powered directly from the host module or an external source, making it suitable for field deployments.
Additional Information
| Weight | 0.04 kg |
|---|---|
| Dimensions | 4 × 6 × 3 cm |
