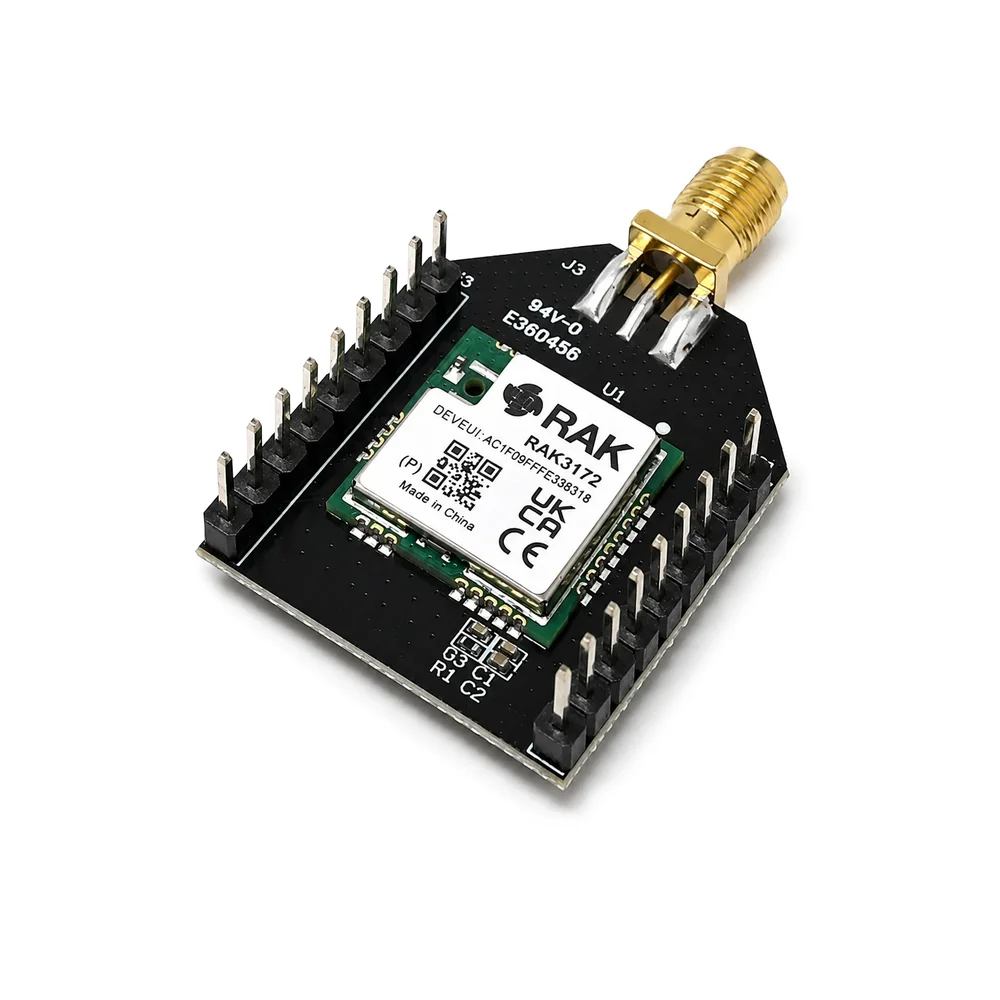

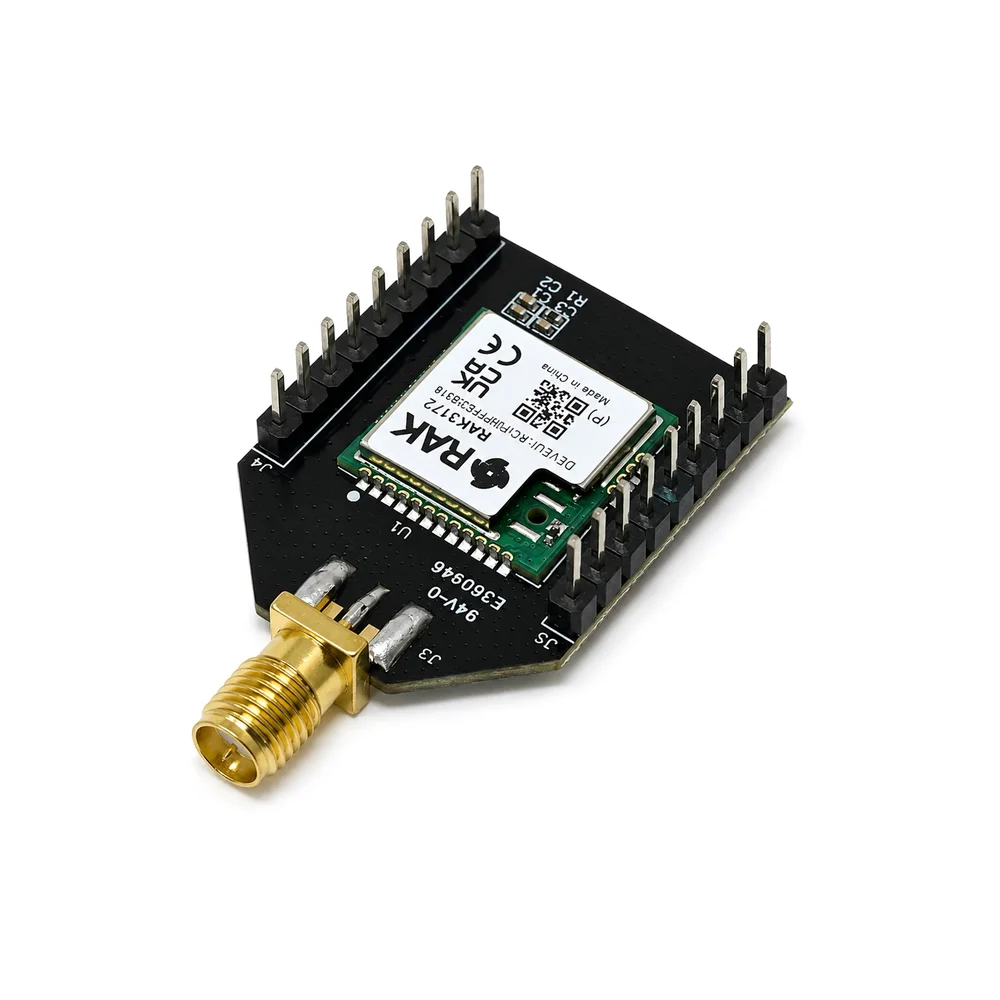

RAKwireless RAK3272S WisDuo Breakout Board /RUI3/ 8XX MHz EU868/RU864/IN865
The RAKwireless RAK3272S WisDuo Breakout Board is a LoRaWAN development platform for the EU868, RU864, and IN865 frequency bands, featuring the RAK3172 module and RUI3 firmware for low-power, long-range IoT applications.
Features
- Multi-region LoRaWAN® support for EU868, RU864, and IN865 frequency bands ensures global IoT deployment compatibility.
- Powered by the RAK3172 module with RUI3 firmware for simplified, low-power application development.
- Comprehensive I/O interfaces including UART, SPI, I2C, and GPIO enable seamless sensor and peripheral integration.
- Low supply voltage range (2.0V to 3.6V) and optimized power management extend battery life for remote devices.

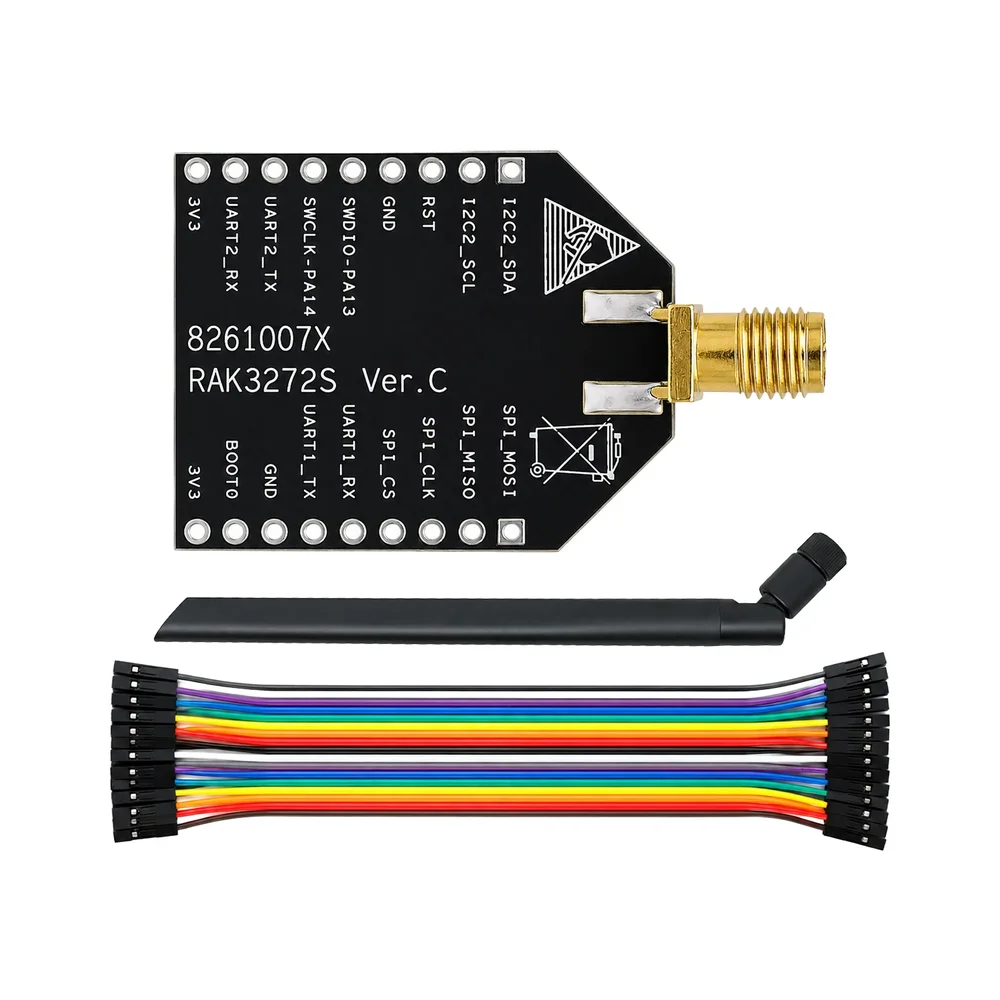

- Compact 25.4 x 32.3 mm breakout board form factor with SWD debug interface for rapid prototyping and debugging.
Out of stock
The RAKwireless RAK3272S WisDuo Breakout Board serves as a dedicated development platform for the RAK3172 LoRaWAN module, pre-configured for the 8XX MHz spectrum covering the EU868, RU864, and IN865 regional bands. It leverages the RUI3 (RAKwireless Unified Interface v3) firmware stack, which abstracts the complexity of LoRaWAN protocol handling, allowing developers to focus on application logic for battery-powered remote sensors, asset trackers, and industrial telemetry nodes.
Engineered for low-power operation, the board supports a wide input voltage range and provides direct access to all critical module interfaces, including UART for AT commands or application serial output, SPI and I2C for sensor expansion, and multiple GPIOs for digital control. The inclusion of a Serial Wire Debug (SWD) interface facilitates direct firmware flashing and real-time debugging, streamlining the development cycle from prototype to production for long-range, low-data-rate IoT solutions.
Additional Information
| Weight | 0.083 kg |
|---|---|
| Dimensions | 22 × 9 × 4 cm |
