Mikroe AIR QUALITY 2 CLICK (Mikroe‑2529) – iAQ‑Core Indoor Air Quality Sensor Board, I²C, CO₂e: 450–2000 ppm, TVOC: 125~600 ppb

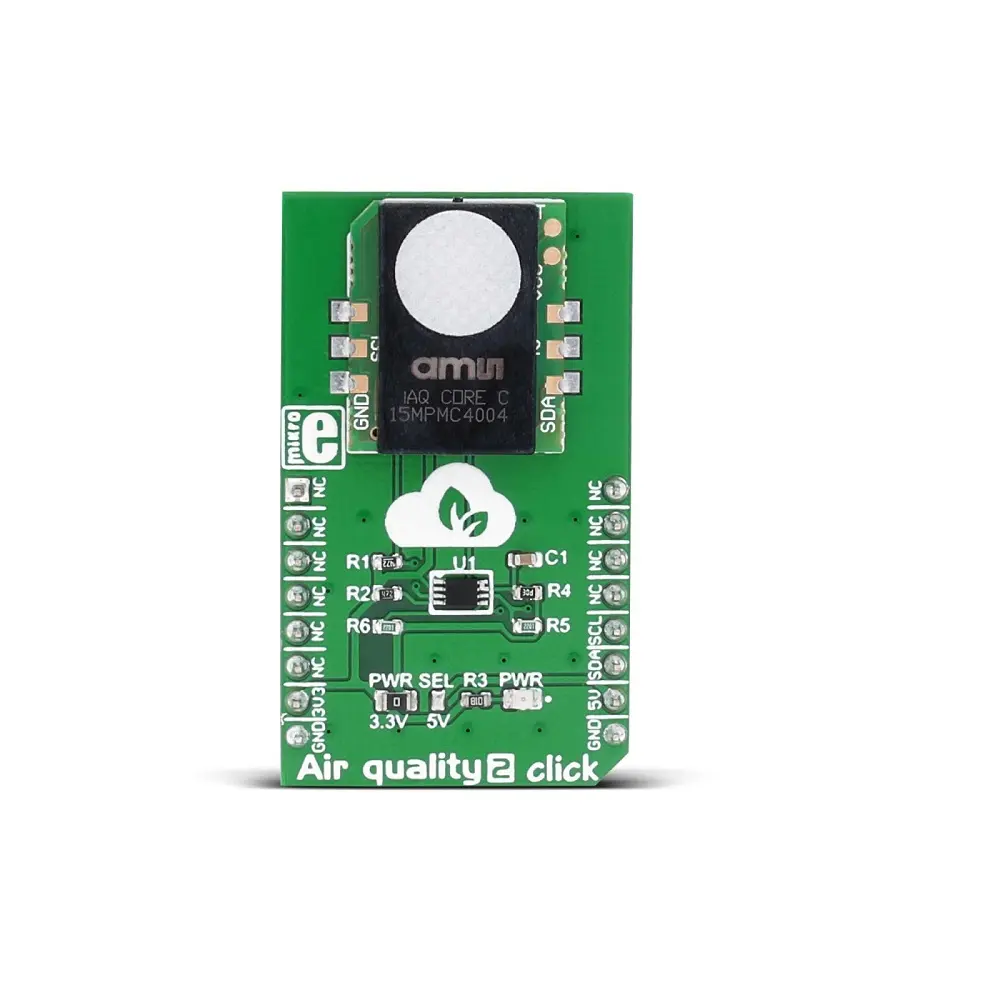

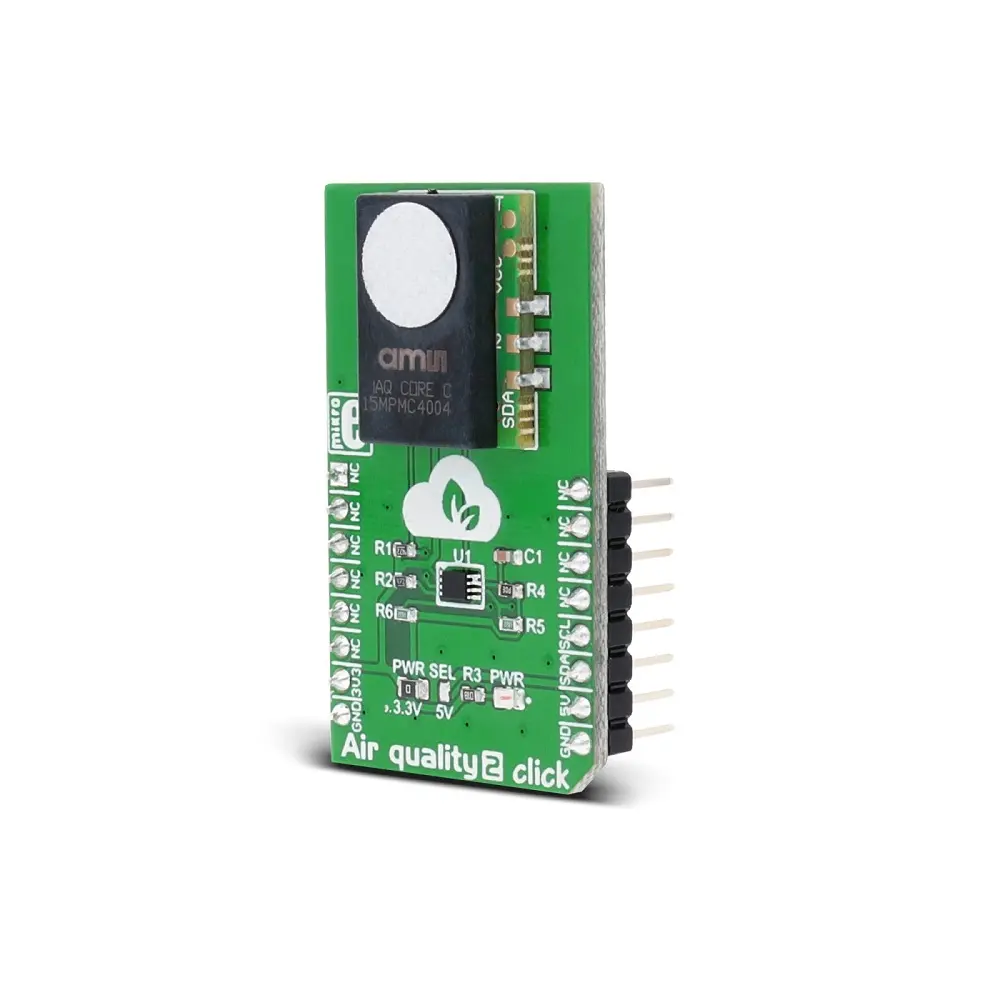

The Mikroe AIR QUALITY 2 CLICK is a mikroBUS-compatible sensor board featuring the iAQ-Core indoor air quality sensor. It provides CO2 equivalent (eCO2) and Total Volatile Organic Compounds (TVOC) equivalent predictions via a standard I2C interface, supporting both 3.3V and 5V logic systems for easy integration with development platforms like Arduino, Raspberry Pi, and STM32.
Features
- Integrated iAQ-Core sensor for indoor air quality monitoring.
- Measures CO2 equivalent (eCO2) from 450 to 2000 ppm and TVOC equivalent from 125 to 600 ppb.
- Standard I2C digital communication interface for easy MCU connection.
- Dual power supply compatibility (3.3V or 5V) for flexible system integration.

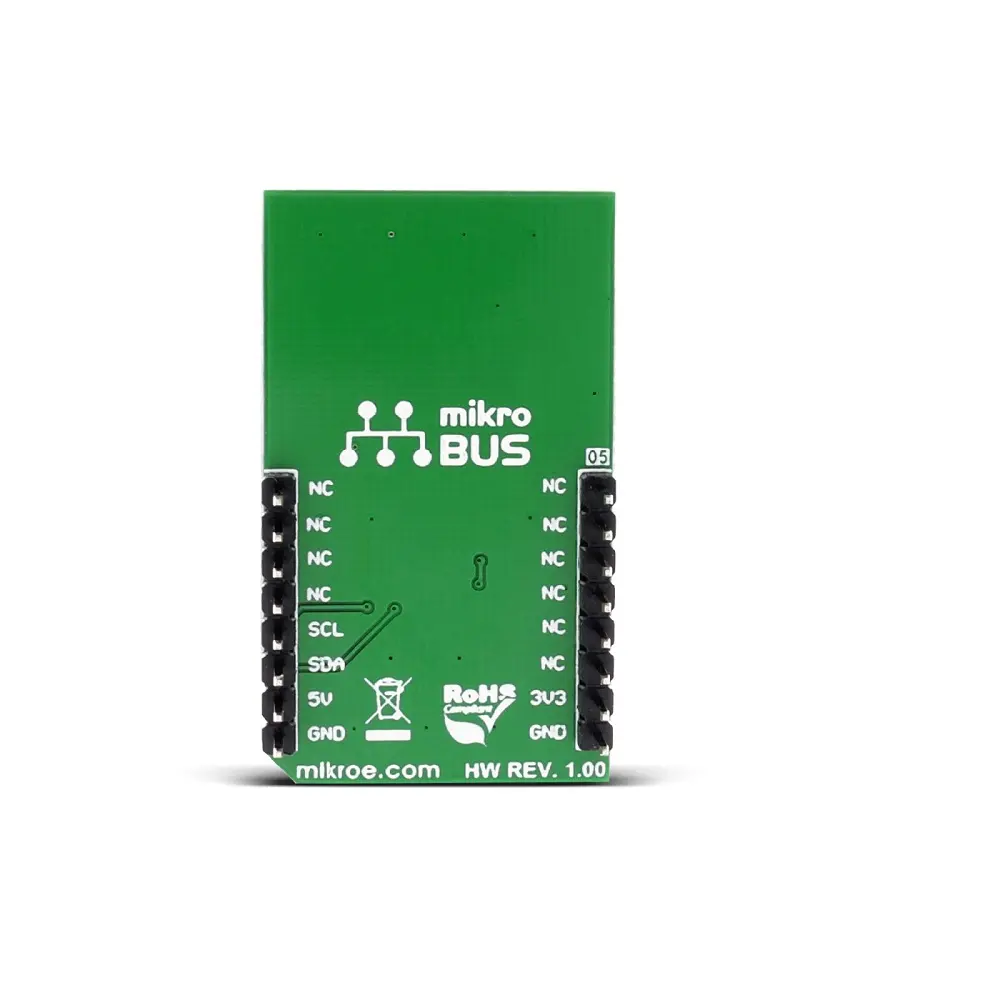

- Compact mikroBUS M-size form factor (42.9 x 25.4 mm).
Out of stock
The AIR QUALITY 2 CLICK board integrates a sophisticated metal-oxide (MOX) based iAQ-Core sensor, which uses predictive algorithms to estimate equivalent CO2 (eCO2) and Total Volatile Organic Compound (TVOC) levels. The sensor element is protected by a permanent filter membrane and plastic cap, ensuring long-term stability and protecting it from dust and large particulates.

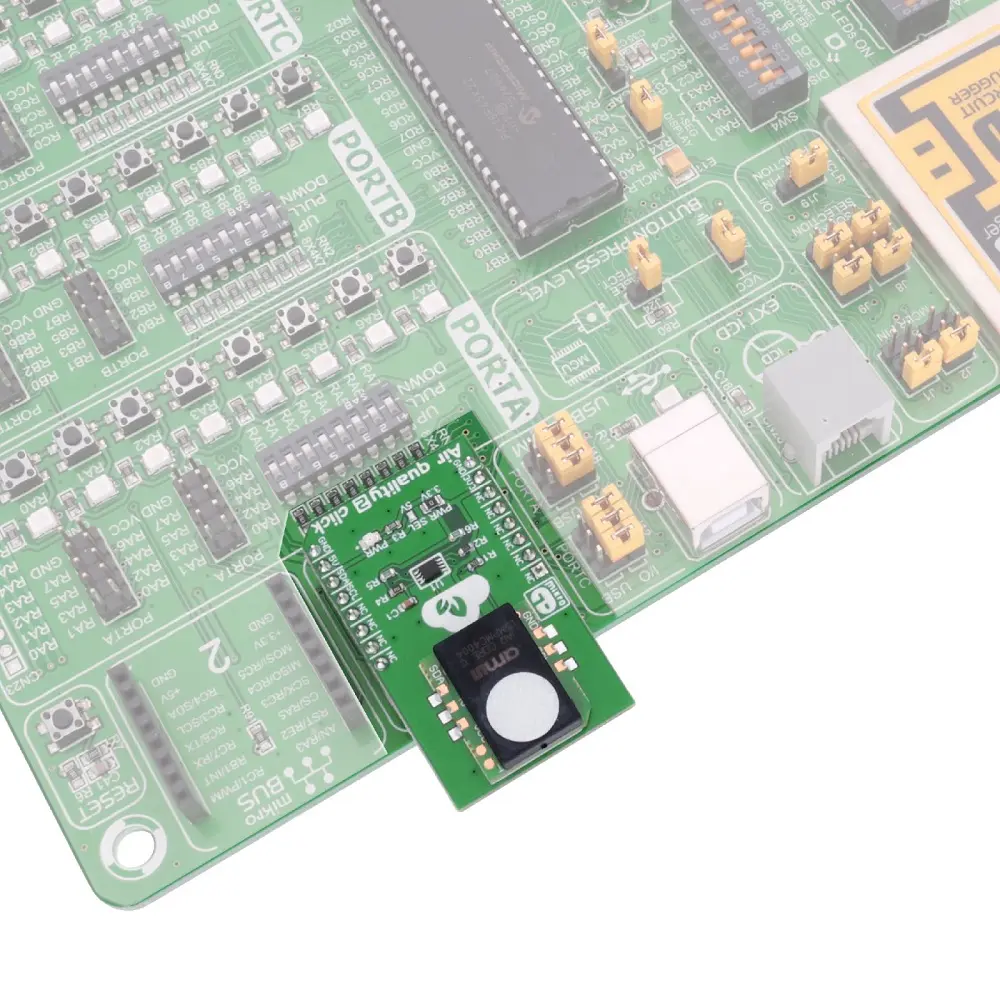

Designed for the mikroBUS standard, this click board offers plug-and-play compatibility with a wide range of host boards from Mikroe and other manufacturers. Its low power consumption and digital I2C output make it ideal for continuous monitoring in space-constrained and power-sensitive applications, providing reliable air quality data without requiring complex signal conditioning.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 7 × 5 × 4 cm |
