Mikroe METHANE Click (Mikroe‑1628) – MQ‑4 Methane (CH₄) Gas Sensor Board, Analog, mikroBUS, Detection Range: 200~10,000 ppm

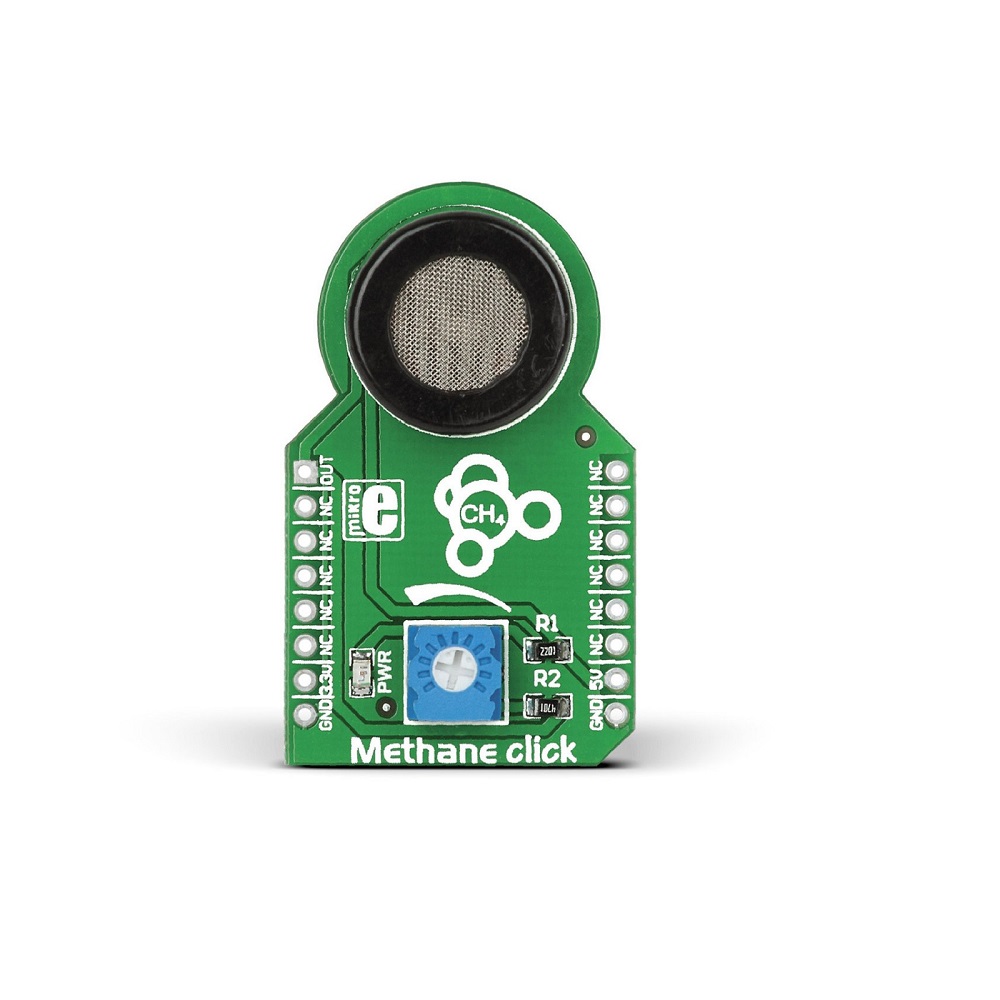

The Mikroe METHANE Click (Mikroe‑1628) is a mikroBUS-compatible gas sensor board featuring an MQ-4 methane (CH₄) sensor with an analog output interface. It operates on 3.3V or 5V logic, making it suitable for integration with a wide range of microcontrollers and development systems for gas leakage detection and monitoring applications.
Features
- Equipped with an MQ-4 methane (CH₄) sensor with a detection range of 200 to 10,000 ppm.

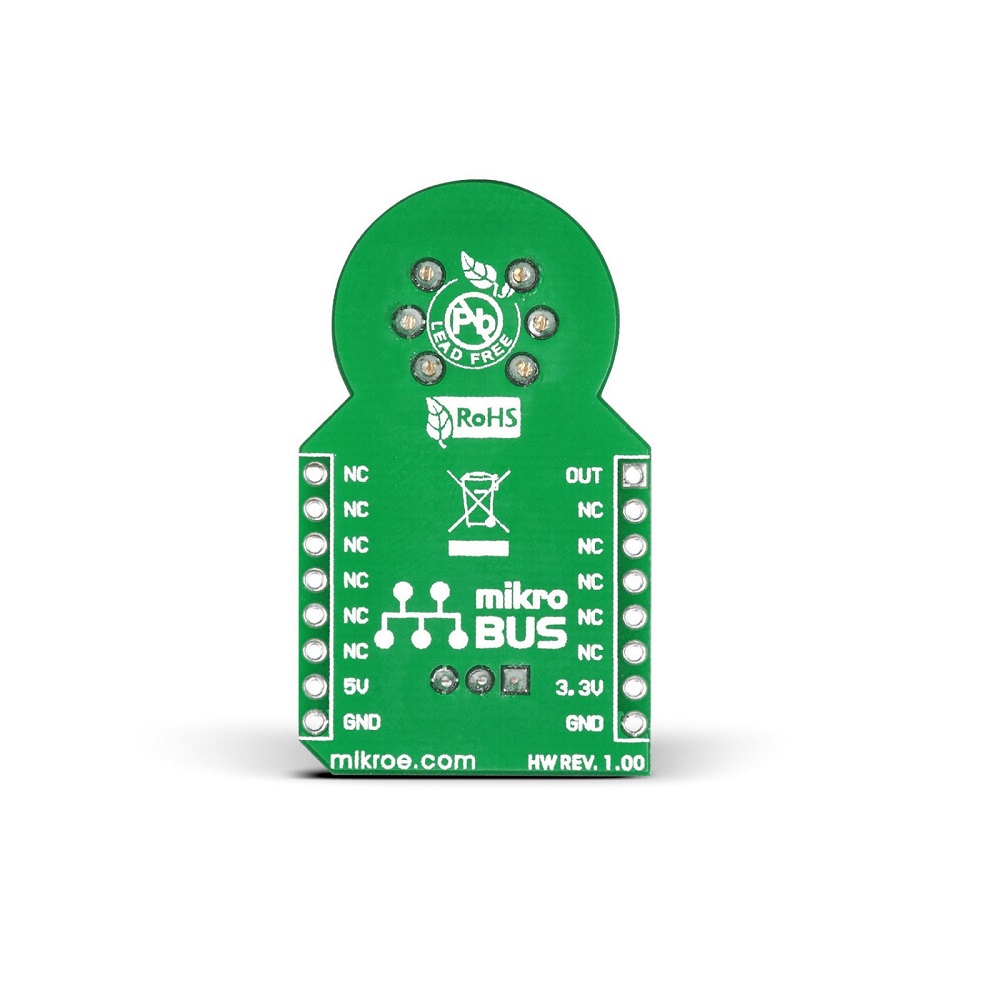

- Provides analog voltage output via the mikroBUS AN (OUT) line for easy interfacing.
- Features an onboard potentiometer for adjusting sensor circuit load resistance and calibration.

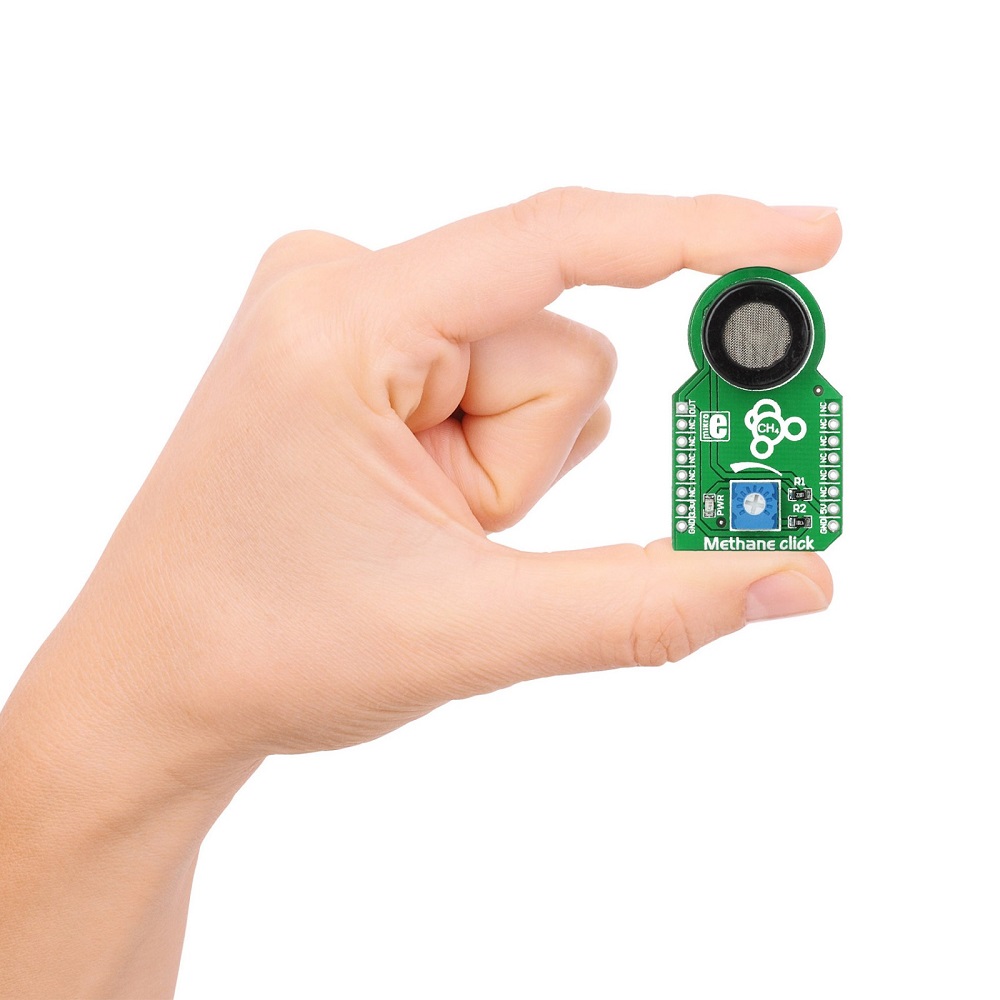

- Standard mikroBUS Click board form factor (42.9 x 25.4 mm) for plug-and-play compatibility.
- Dual power input compatibility, supporting both 3.3V and 5V logic systems.
Out of stock
The METHANE Click utilizes a tin dioxide (SnO₂) semiconductor sensing element. In clean air, the sensor’s conductivity is low. When methane gas is present, the conductivity increases proportionally, generating a corresponding analog voltage signal. This board is designed for system-level integration, requiring a 24-hour preheat period after initial power-up for optimal sensor stability and accurate calibration.

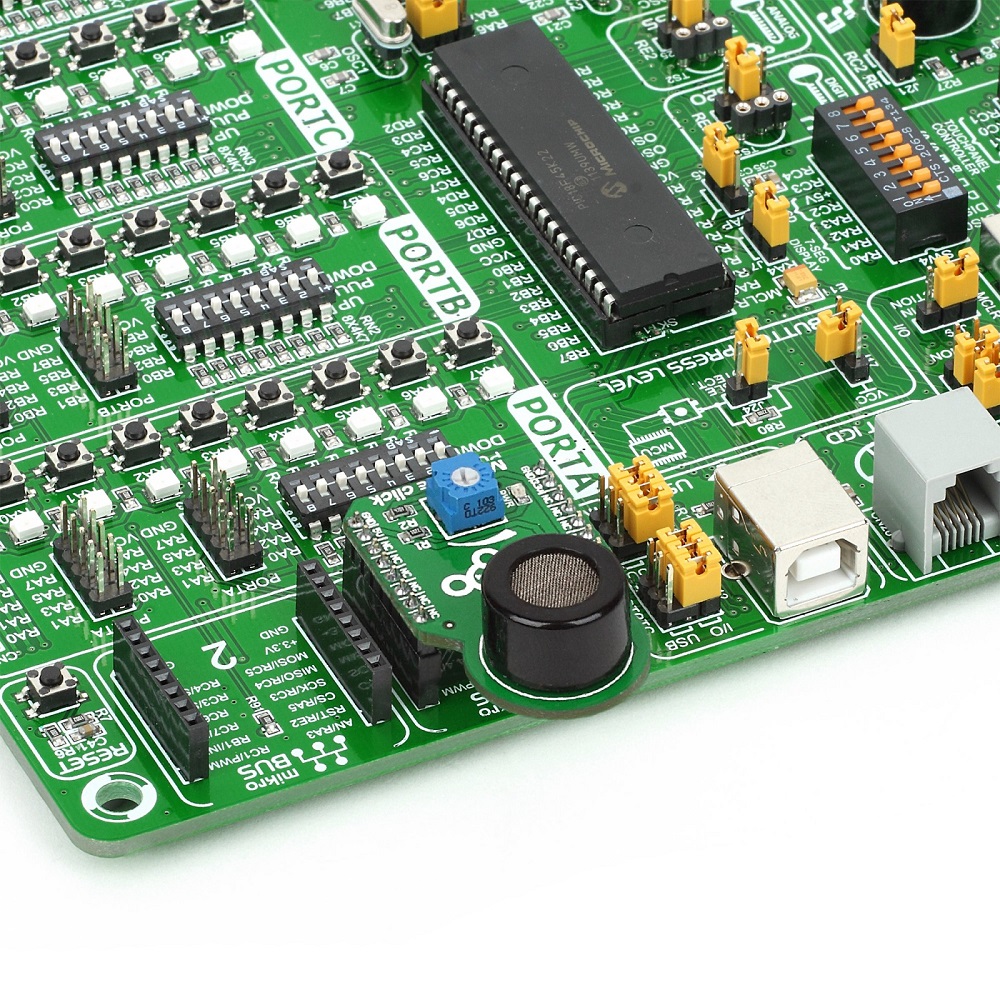

The included potentiometer allows for environmental calibration by adjusting the sensor’s load resistance, tailoring the sensitivity to specific application conditions. The board’s design adheres to the mikroBUS standard, ensuring mechanical and electrical compatibility with hundreds of host boards from Mikroe and other manufacturers, simplifying prototyping and development.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 6 × 4 × 2 cm |
