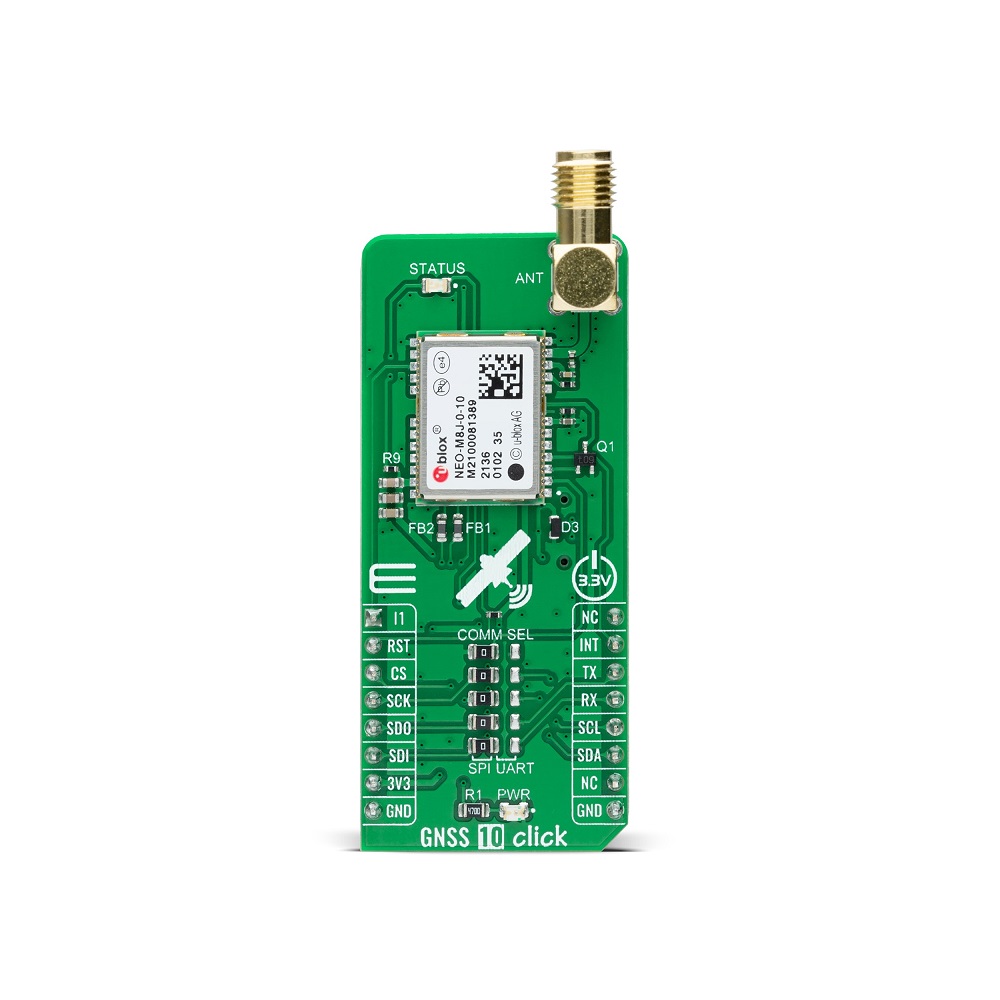

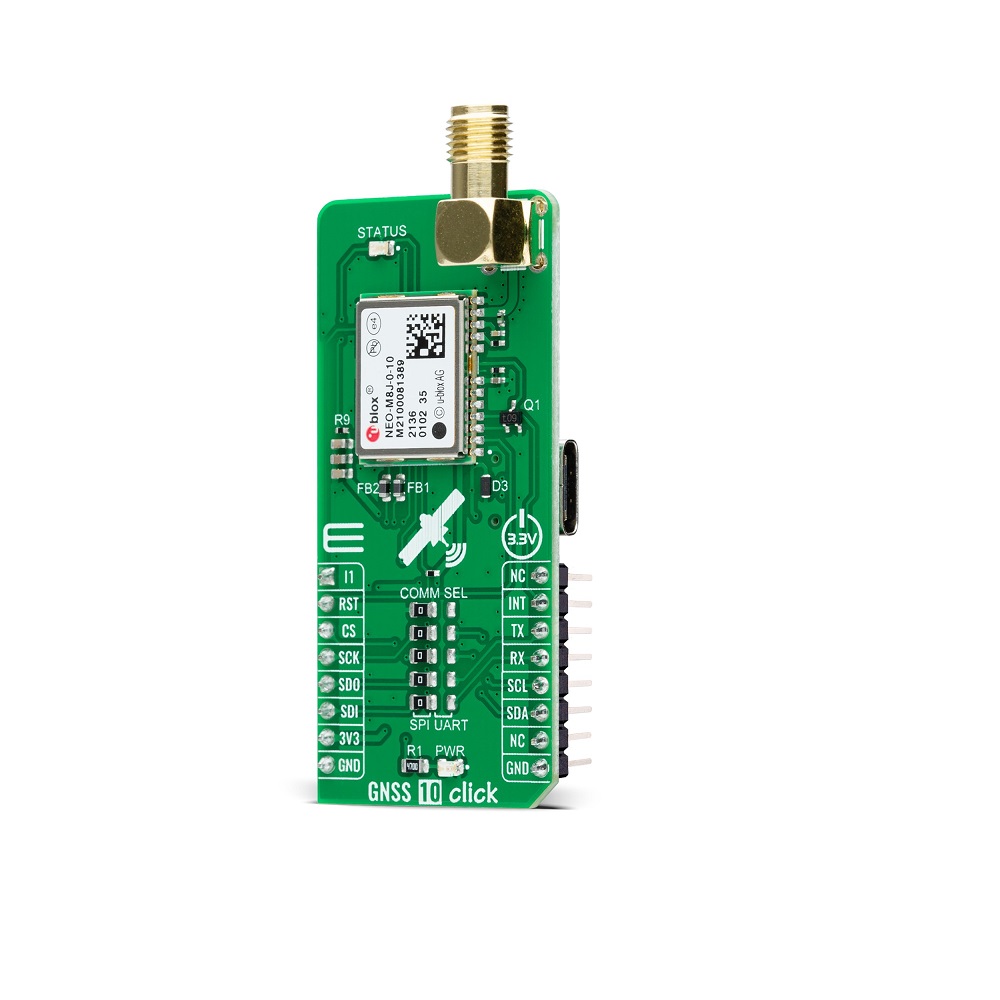

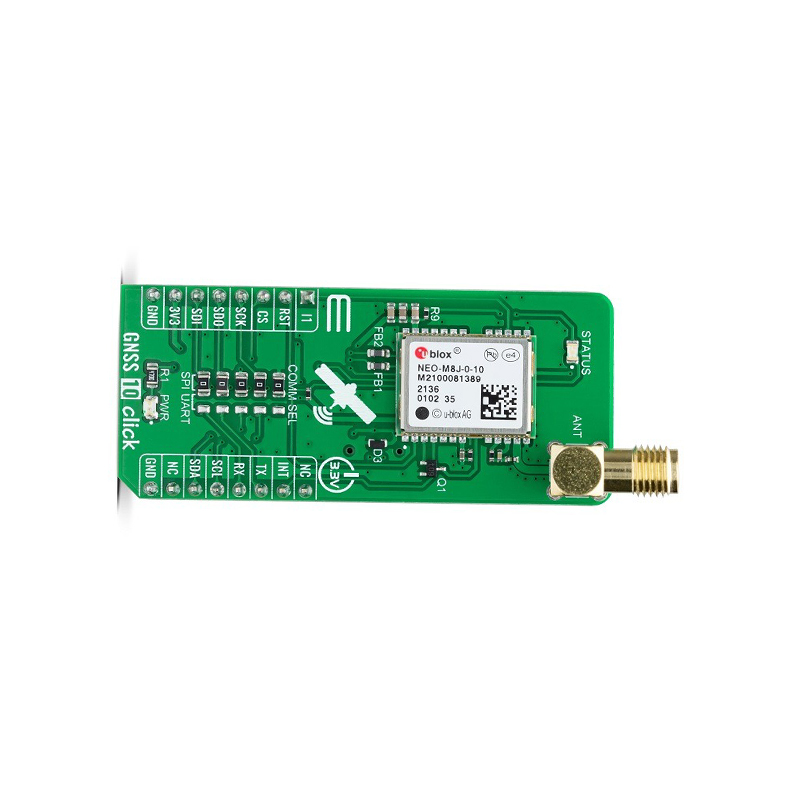

Mikroe GNSS 10 CLICK NEO-M8J Multi-GNSS Receiver

The Mikroe GNSS 10 CLICK, featuring the u-blox NEO-M8J module, supports concurrent reception of up to three GNSS systems. This includes GPS, Galileo, and either BeiDou or GLONASS. This multi-constellation capability enhances positioning accuracy, especially in challenging environments like urban canyons or where signals are weak, ensuring reliable navigation.

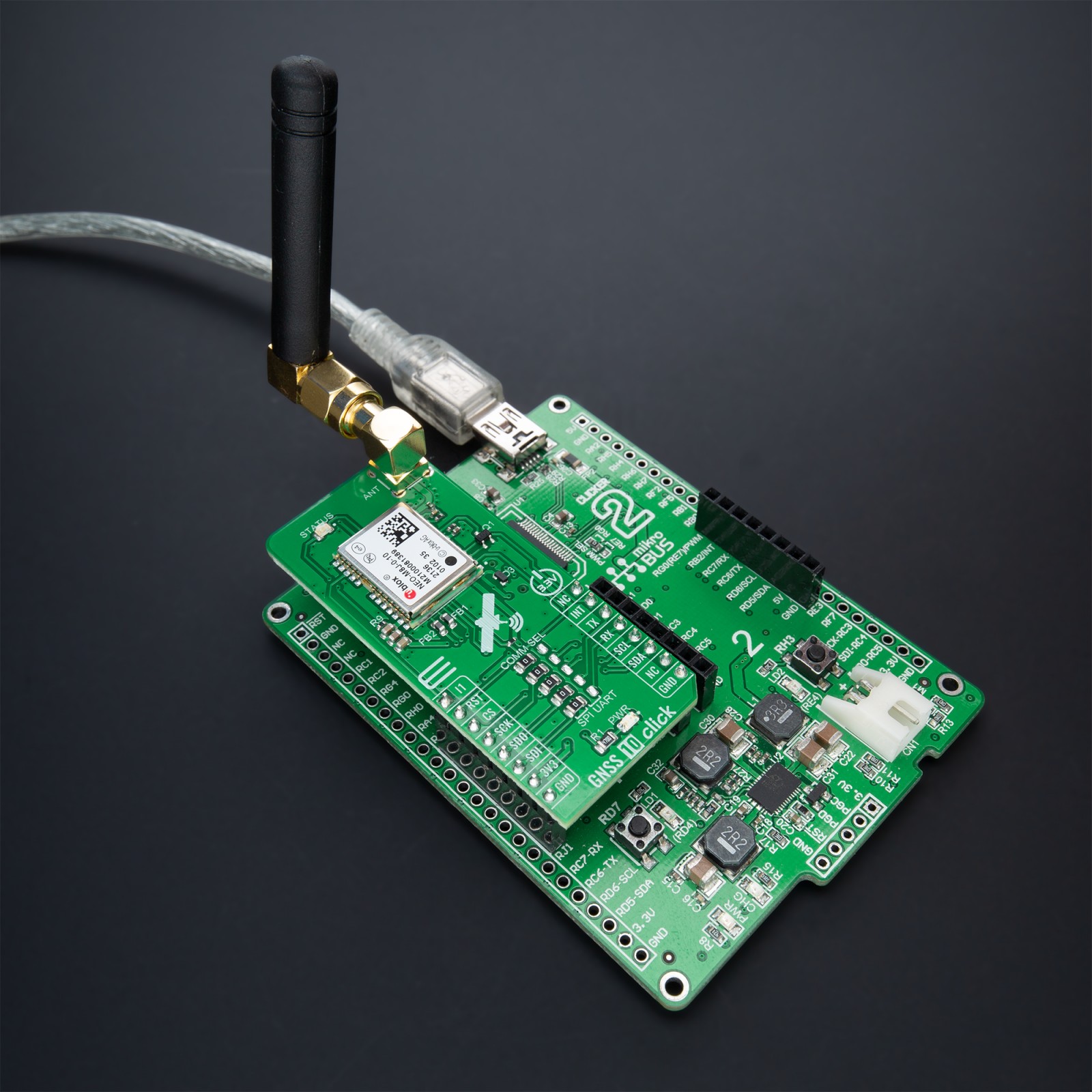

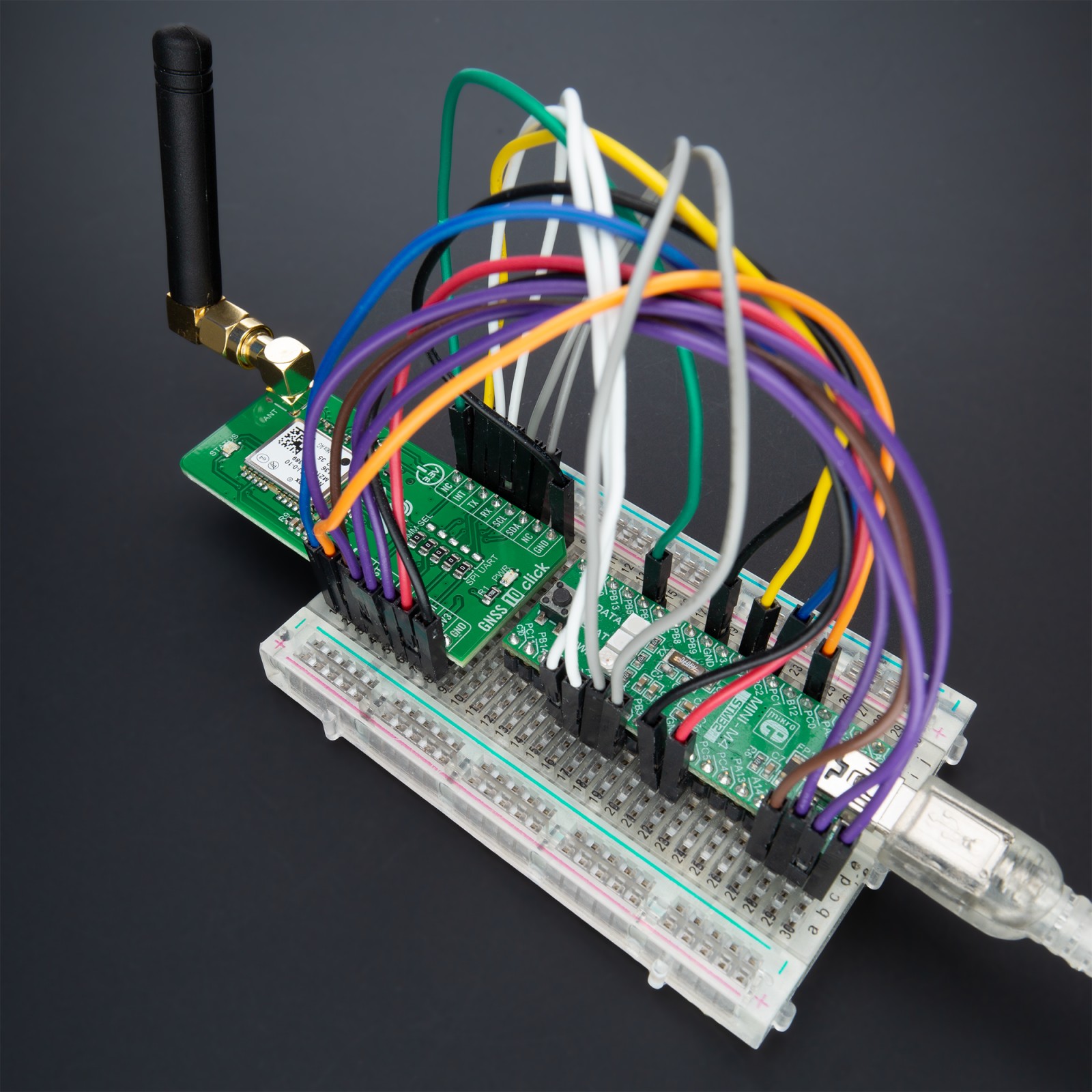

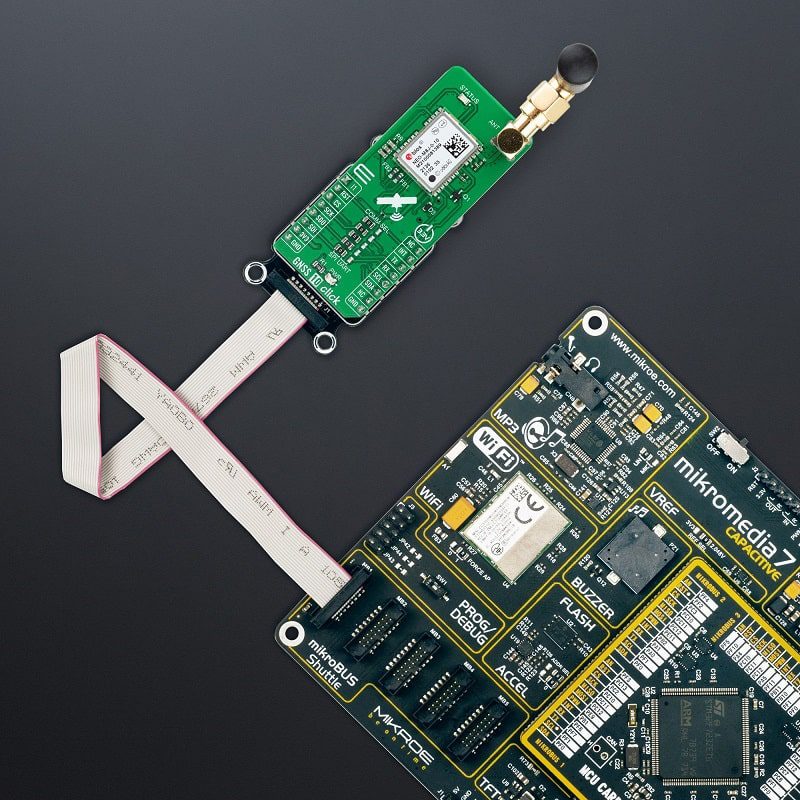

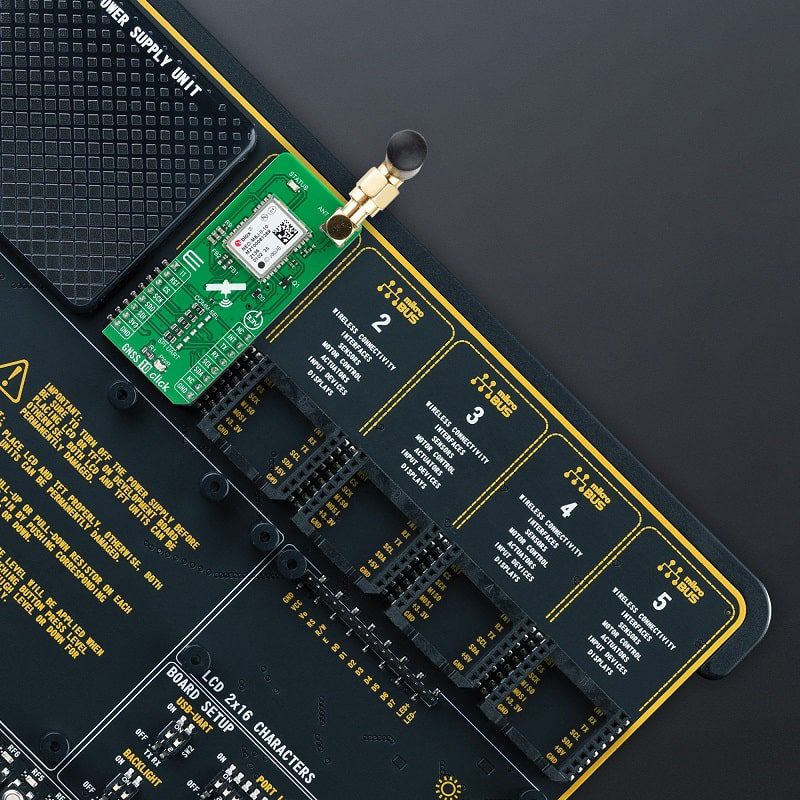

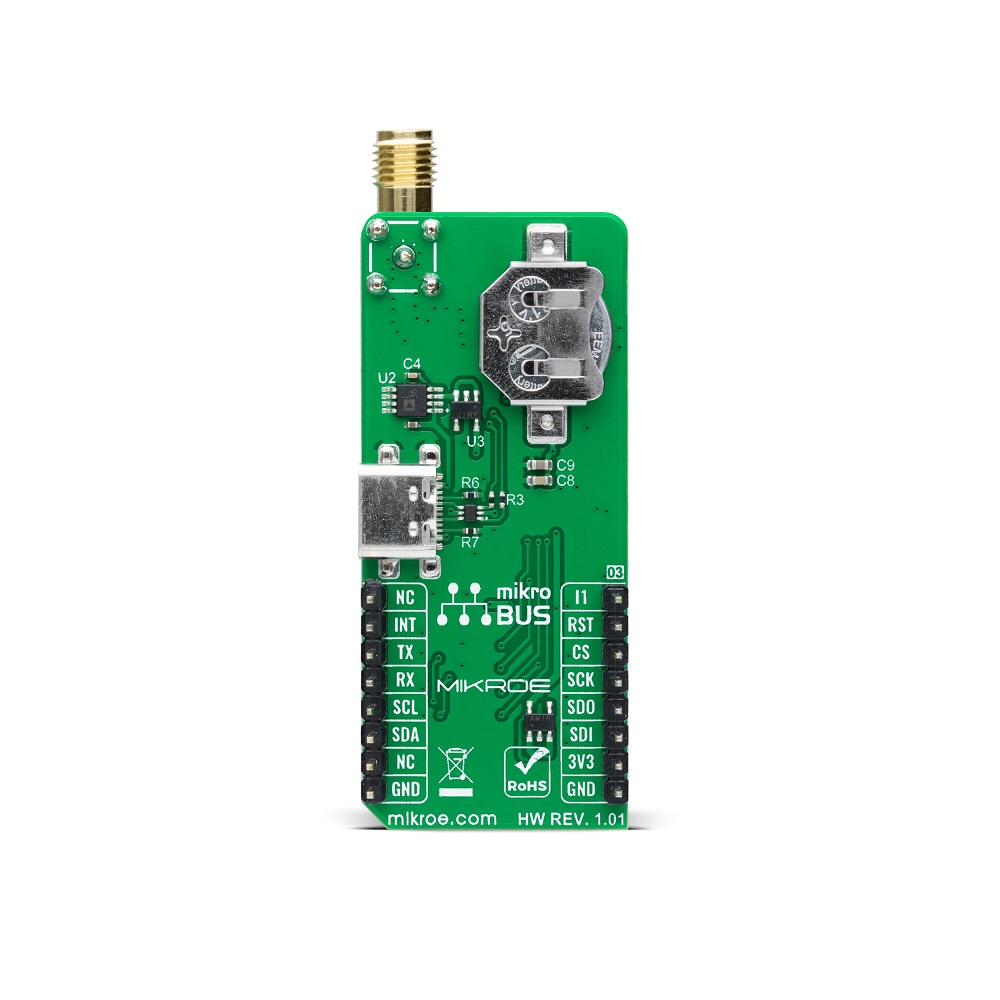

The GNSS 10 CLICK board offers versatile connectivity through its mikroBUS interface. It supports I2C, SPI, UART, and USB communication protocols. This wide array of interface options allows for flexible integration into various host microcontrollers and embedded systems, simplifying development and deployment in diverse industrial and UAV applications requiring precise positioning data.

The NEO-M8J module significantly enhances reliability through several key features. It boasts an industry-leading -167 dBm navigation sensitivity, enabling signal acquisition in challenging conditions. Furthermore, it incorporates advanced jamming and spoofing detection mechanisms. These capabilities ensure the integrity and accuracy of the GNSS data, providing robust and trustworthy positioning crucial for critical drone operations and industrial automation.

The Mikroe GNSS 10 CLICK board operates efficiently on a 3.3V input voltage. This low-voltage requirement makes it compatible with a wide range of microcontrollers and embedded systems, particularly those designed around the mikroBUS standard. Its optimized power consumption contributes to longer battery life in portable or remotely deployed applications, such as autonomous UAVs and IoT devices.
