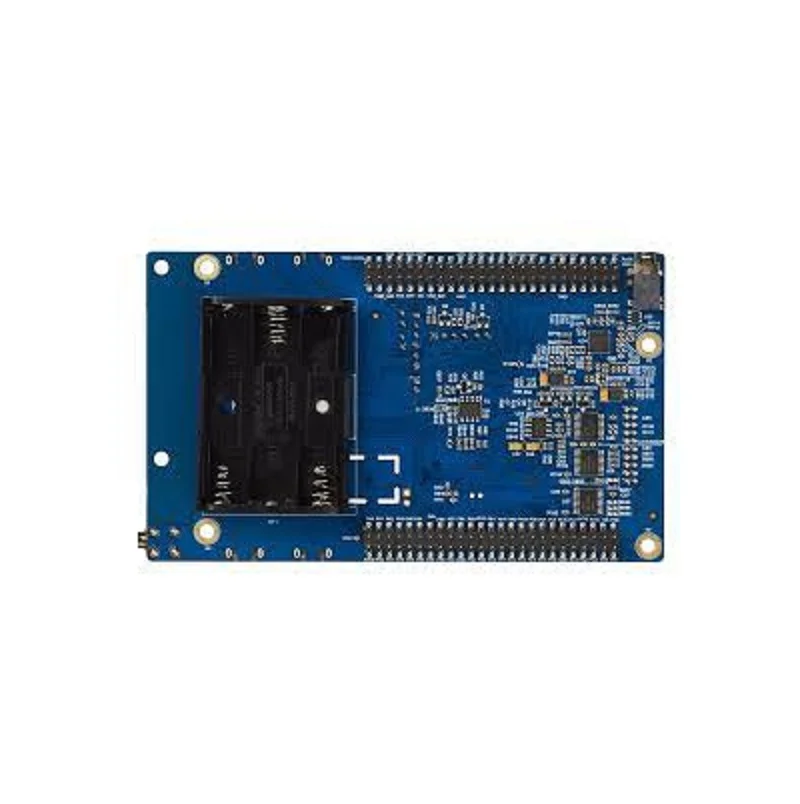

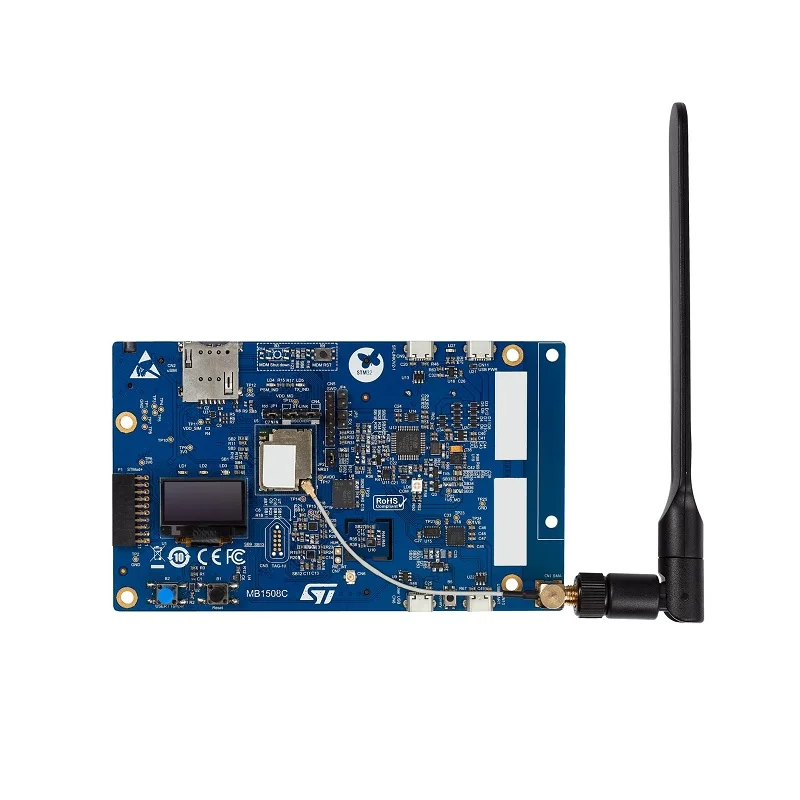

STMicroelectronics B-L462E-CELL1 IoT Discovery Kit w/ LTE Cat M/NB & STM32L462RE
The STMicroelectronics B-L462E-CELL1 is a comprehensive cellular IoT development kit featuring an STM32L462RE Cortex-M4 MCU and an integrated LBAD0XX1SC-DM LTE Cat M/NB-IoT modem with a GSMA-certified eSIM, designed for low-power, globally connected IoT device prototyping and deployment.
Features
- Integrated LTE Cat M/NB-IoT modem with global coverage antenna and embedded SIM (eSIM) for immediate cellular connectivity.
- Powered by an ultra-low-power STM32L462REY6TR microcontroller (ARM Cortex-M4) with 512KB Flash and 160KB SRAM.
- Includes a 0.96-inch 128×64 OLED display, environmental sensors (HTS221), and a 9-axis motion sensor (LSM303AGR) for comprehensive sensing.
- On-board ST-LINK/V2-1 debugger/programmer for seamless firmware development and debugging via USB.

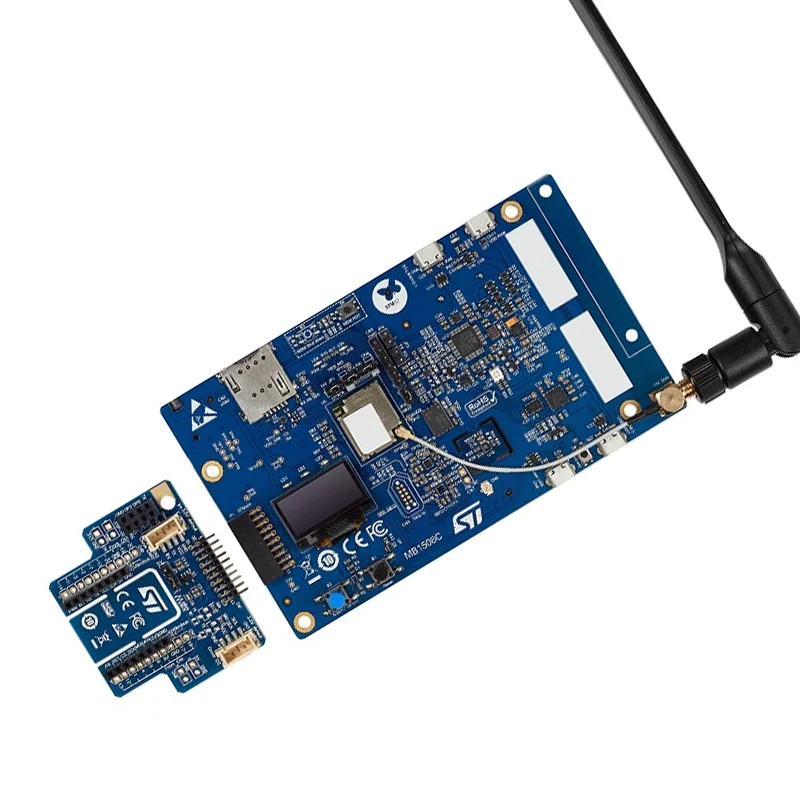

- Extensive expansion via STMod+, mikroBUSâ„¢, ESP-01, Grove I2C/UART headers, and breadboard-friendly fan-out board.
Out of stock
The B-L462E-CELL1 Discovery Kit from STMicroelectronics is a turnkey platform for developing and deploying low-power cellular IoT applications. It centers on the LBAD0ZZ1SE module, which combines an STM32L462RE Cortex-M4 microcontroller with an ultra-small LTE Cat M and NB-IoT modem, providing a complete RF and processing solution in a single package. The kit is engineered for minimal power consumption, critical for battery-operated remote sensors and trackers.
Beyond core connectivity, the platform includes a suite of onboard sensors for environmental and motion data acquisition, a Quad-SPI flash for data logging, and a graphical OLED display for local status monitoring. The integrated ST-LINK debugger simplifies code uploading and real-time debugging directly from the STM32CubeIDE or other supported environments. This kit is packaged with STM32Cube software libraries and cloud connection examples, accelerating the path from prototype to production.
Additional Information
| Weight | 0.211 kg |
|---|---|
| Dimensions | 26 × 21 × 4 cm |
