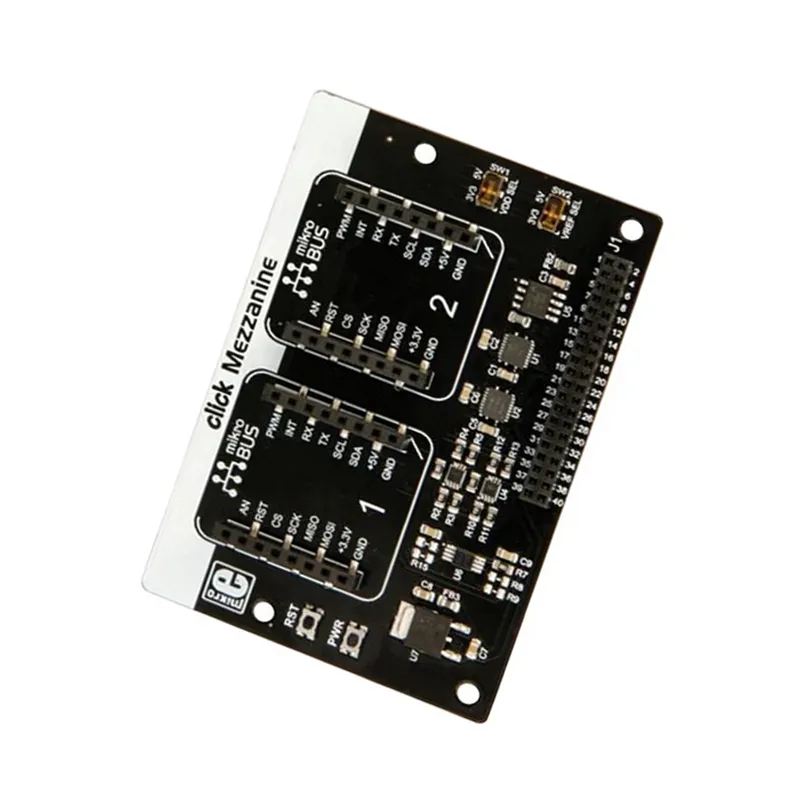

96Boards Click Mezzanine Starter Kit, LS Mezzanine, 3 Click Boards
The Avnet 96Boards Click Mezzanine Starter Kit enables connection of popular MikroBUS Click boards to any 96Boards Low-Speed (LS) mezzanine interface. It provides two MikroBUS sites, an on-board ADC, and includes three Click boards (6-DoF IMU, 2×16 Character Display, USB-UART) to jumpstart your embedded development.
Features
- LS Mezzanine connectivity for 96Boards platforms.
- Two MikroBUS sites supporting a wide range of Click boards (UART, SPI, I2C, PWM, Analog input).
- Integrates an on-board ADC for analog signal processing.

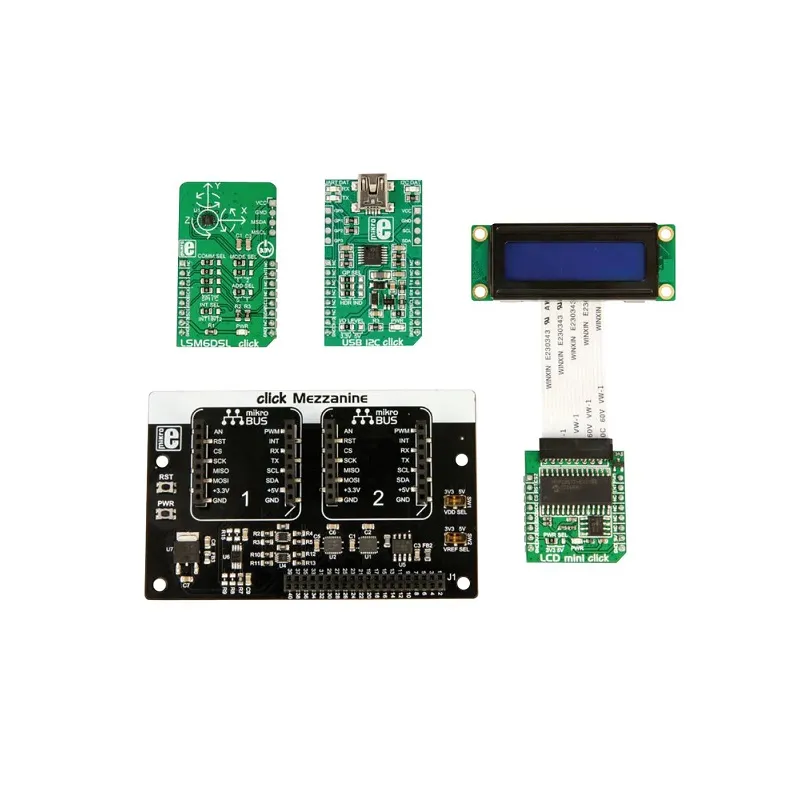

- Includes three essential Click boards: 6-DoF IMU, 2×16 Character Display, and USB-UART.
Out of stock

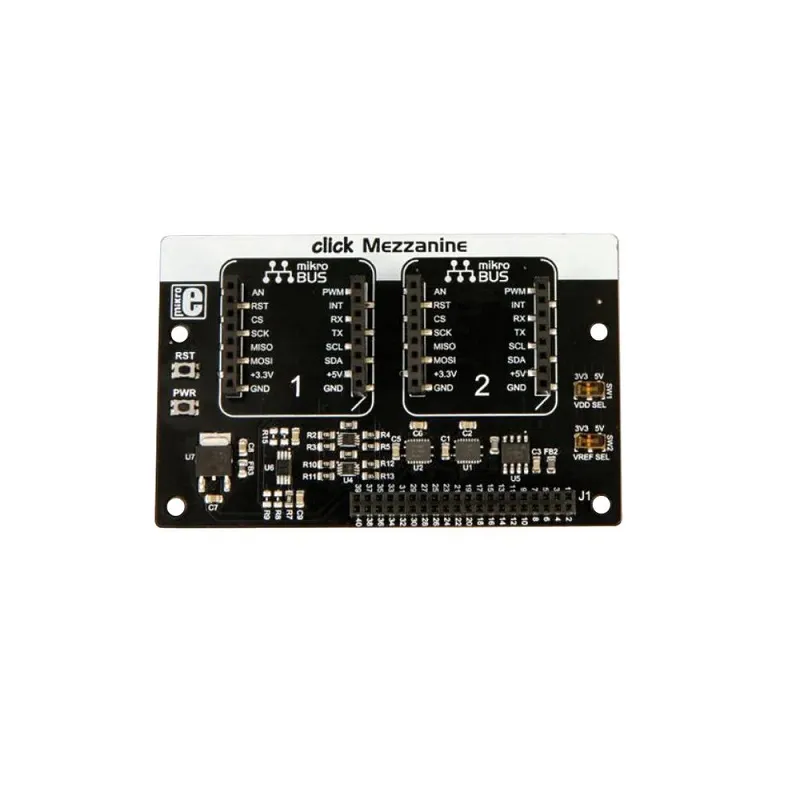

The 96Boards Click Mezzanine extends the capabilities of your 96Boards platform by enabling seamless integration with the vast ecosystem of MikroBUS Click boards. Designed specifically for low-speed (LS) mezzanine connectivity, this board breaks out the standard LS header into two dedicated MikroBUS sites, allowing developers to quickly prototype and expand their projects with off-the-shelf modules.
Each MikroBUS site supports common communication interfaces including UART, SPI, I2C, PWM, and analog input. This standardized approach grants access to hundreds of sensor, display, storage, timing, mixed-signal, and audio Click boards, significantly accelerating development cycles. The included on-board ADC further enhances its versatility for applications requiring analog data acquisition.
Additional Information
| Weight | 0.265 kg |
|---|---|
| Dimensions | 19 × 13 × 4 cm |
