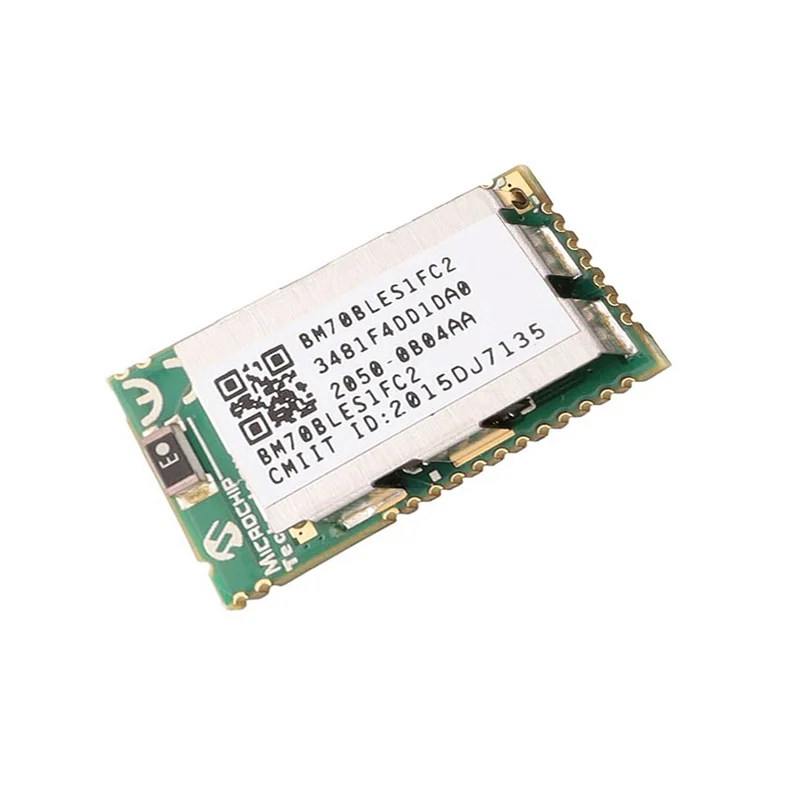

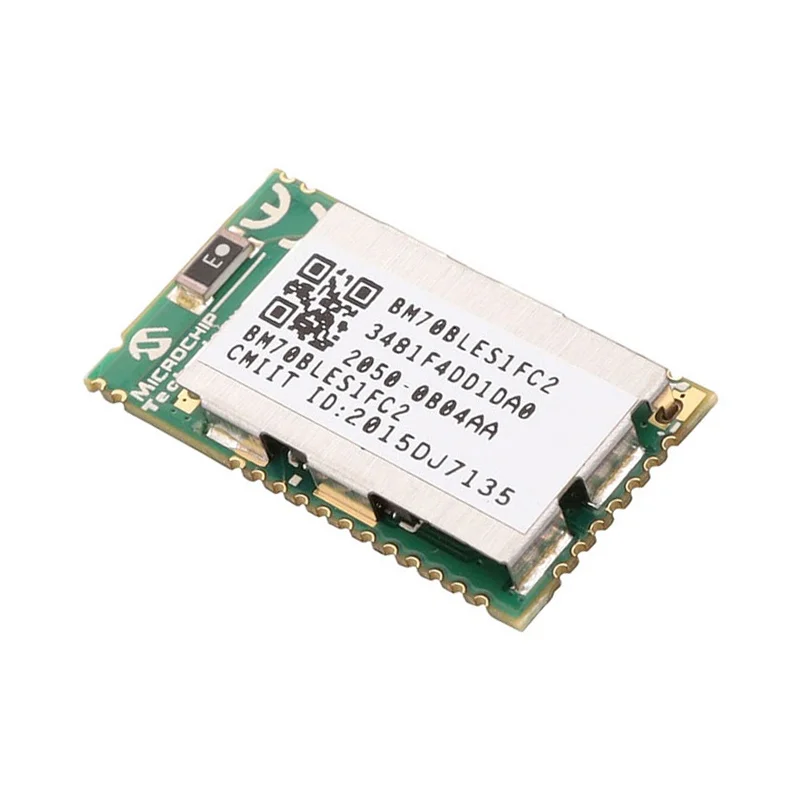

Microchip Technology BM70BLE01FC2-0B04AA Bluetooth 4.2 Module
The Microchip Technology BM70BLE01FC2-0B04AA is a Bluetooth 4.2 Low Energy (BLE) module operating in the 2.402-2.48GHz ISM band, designed for low-power IoT applications requiring reliable short-range wireless communication.
Features
- Bluetooth 4.2 Low Energy (BLE) for power-efficient IoT connectivity.
- Wide operating voltage range from 1.9V to 3.6V for flexible power supply integration.
- High receiver sensitivity of -90 dBm for extended wireless range and robust links.
- Compact form factor designed for easy integration into space-constrained embedded systems.
- Industrial-grade operating temperature up to +85°C for reliable performance in varied environments.
Out of stock
The Microchip Technology BM70BLE01FC2-0B04AA is a fully certified Bluetooth Low Energy (BLE) 4.2 module, engineered to provide a robust and power-optimized wireless link for embedded IoT devices. It operates on the global 2.4GHz ISM band and integrates the essential RF circuitry, crystal oscillator, and antenna matching network, simplifying design-in and reducing time-to-market.
Based on the BM70 series architecture, this module is built for low-duty-cycle applications, supporting advanced BLE features while maintaining minimal power consumption. Its -90 dBm receiver sensitivity ensures stable communication links even at the edge of its operational range, making it suitable for sensor networks, beacons, and remote control systems.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 7 × 5 × 1 cm |
