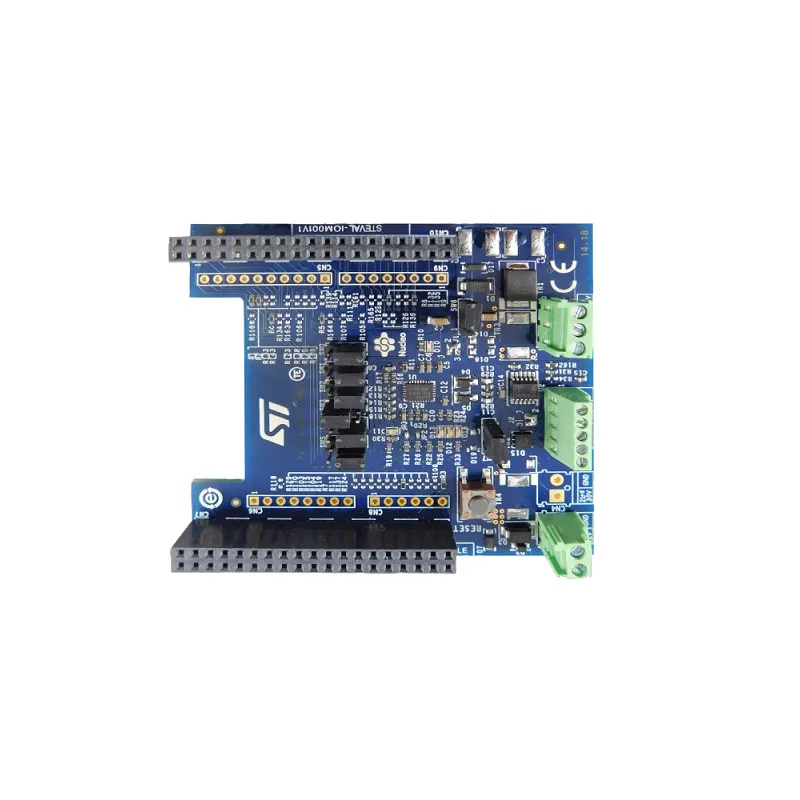

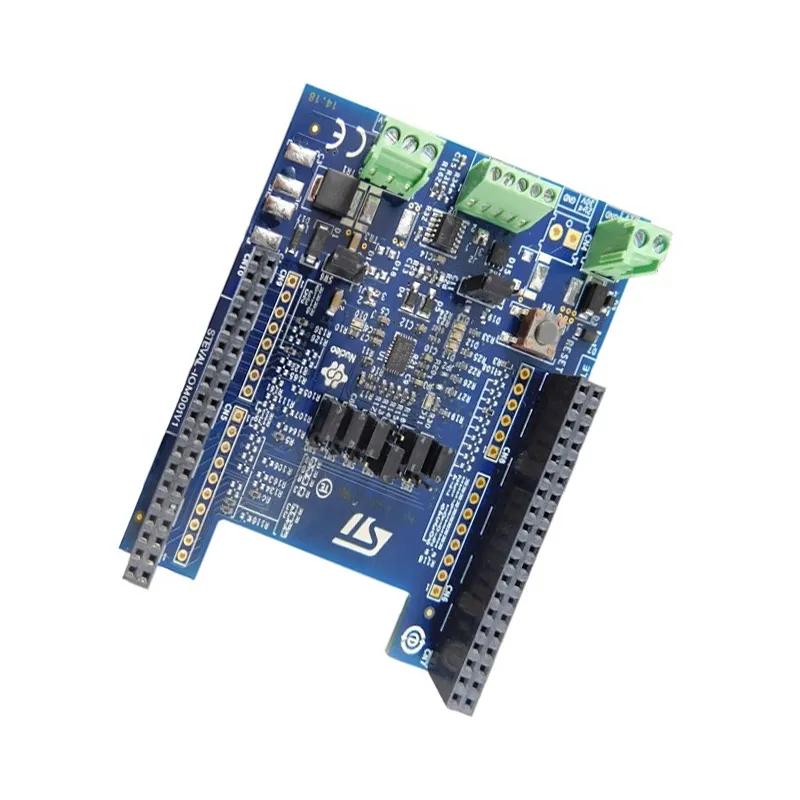

STMicroelectronics STEVAL-IOM001V1 L6360 IO-Link Master Board

The board primarily functions as an evaluation platform for the STMicroelectronics L6360 IO-Link master transceiver. It allows developers to test and integrate IO-Link v1.1 compliant physical layer communication for industrial sensor and actuator networks, facilitating rapid prototyping and application development with STM32 Nucleo microcontrollers.

The STEVAL-IOM001V1 is designed for seamless integration with STM32 Nucleo microcontrollers, interfacing via UART and GPIO. It also offers optional compatibility with Arduino UNO R3 boards through its connectors. Developers typically use STM32CubeIDE or other standard ARM development toolchains, alongside the provided STSW-IOM001 example code for IO-Link specific functions.

Yes, the STEVAL-IOM001V1 supports multi-port IO-Link master evaluation. By implementing a few solder bridge modifications, up to four STEVAL-IOM001V1 boards can be connected, enabling the development and testing of industrial IO-Link master modules with multiple communication channels, enhancing scalability for complex systems.

The board provides essential communication interfaces for system integration, including an I²C bus, a UART interface for serial communication with the host microcontroller, and a SPI (slave) interface. These options offer flexibility for data exchange, configuration, and diagnostics within an embedded system, supporting various industrial communication protocols.

The STEVAL-IOM001V1 operates within an industrial standard voltage range of 18 to 32.5 V. It includes an on-board 65 mA linear regulator, selectable between 3.3 V or 5.0 V, to power ancillary components. The board also incorporates L+ and CQ overload and overheating protections to ensure robust and safe operation in demanding industrial environments.
