Seeed Studio Studio Grove Mega Shield v1.2 for Arduino Mega

Description

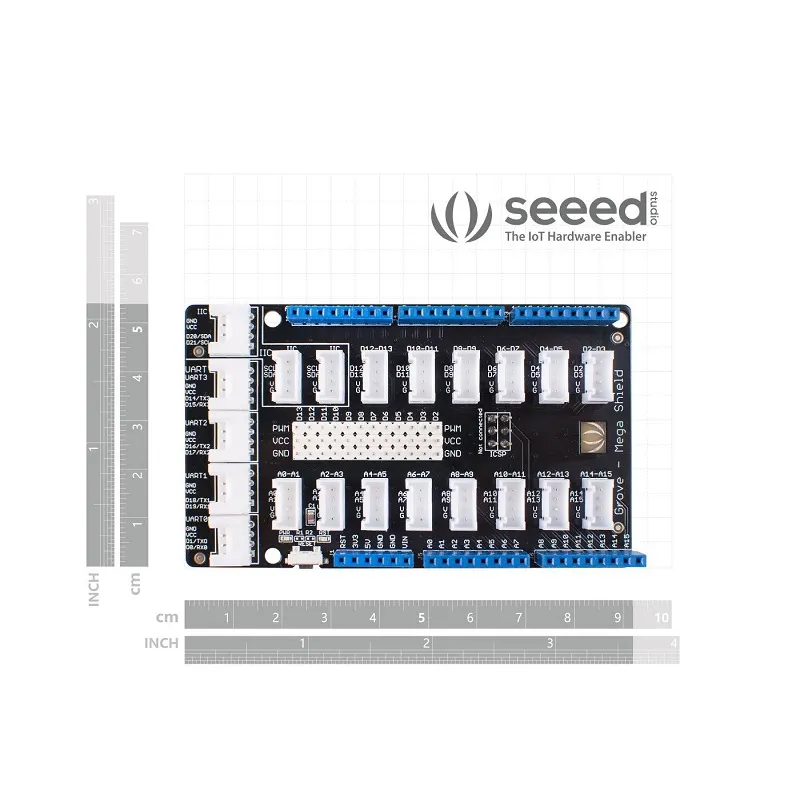

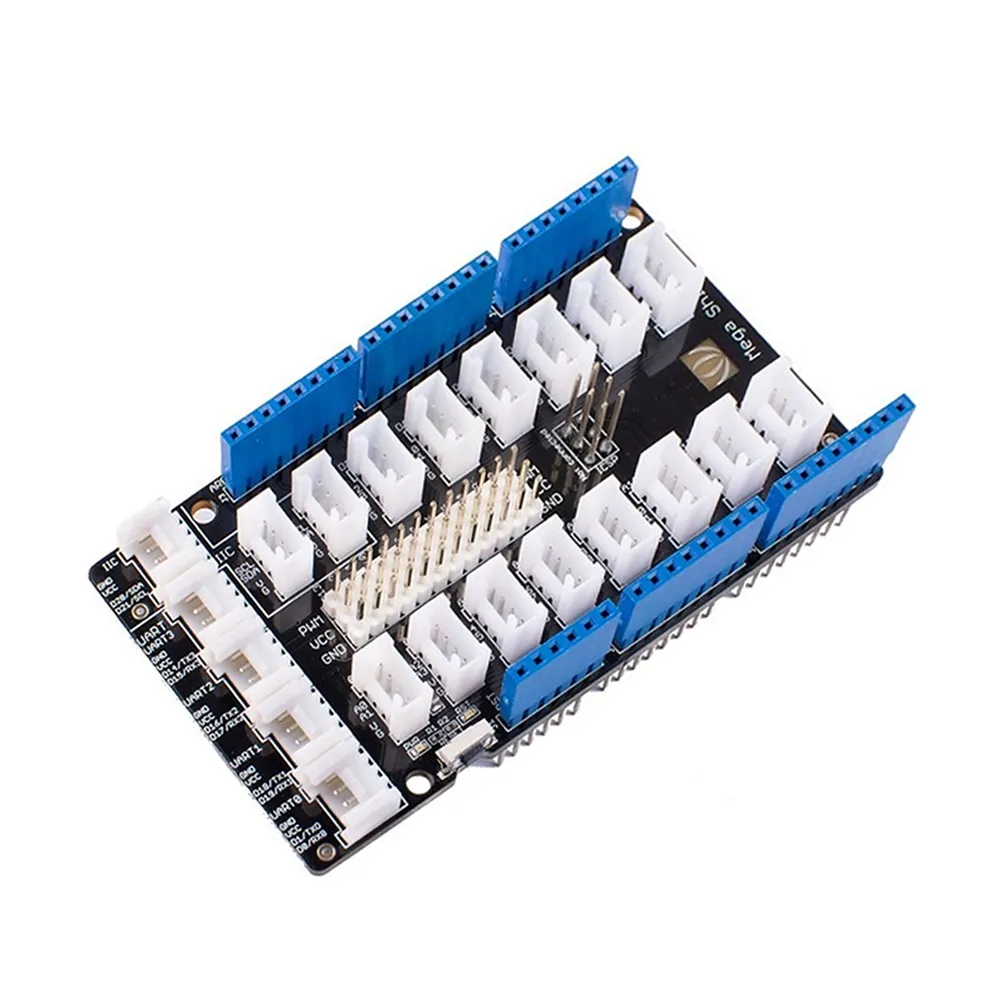

The Seeed Studio Studio Grove Mega Shield v1.2 serves as a robust extension board for both Arduino Mega 1280/2560 and Google ADK platforms, streamlining complex electronics projects. This shield transforms the intricate wiring of typical Arduino setups by standardizing all primary input/output connectors into user-friendly 4-pin (2mm) Grove-compatible interfaces, alongside retaining crucial 3-pin (2.54mm) headers for Servo motors and other legacy electronic bricks. This thoughtful design significantly reduces development time and minimizes connection errors, making it ideal for both educational and advanced prototyping endeavors.

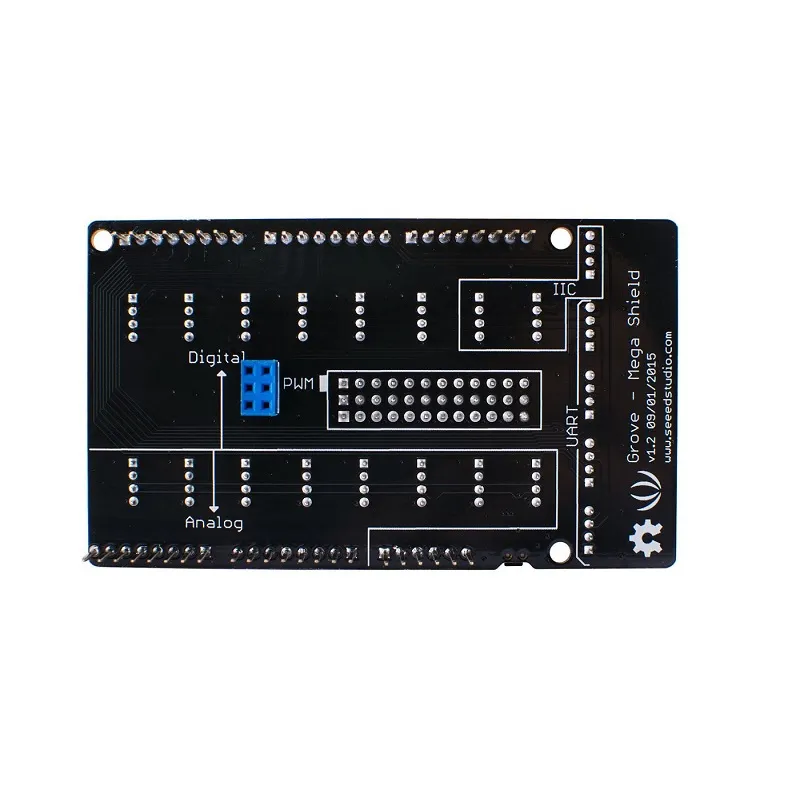

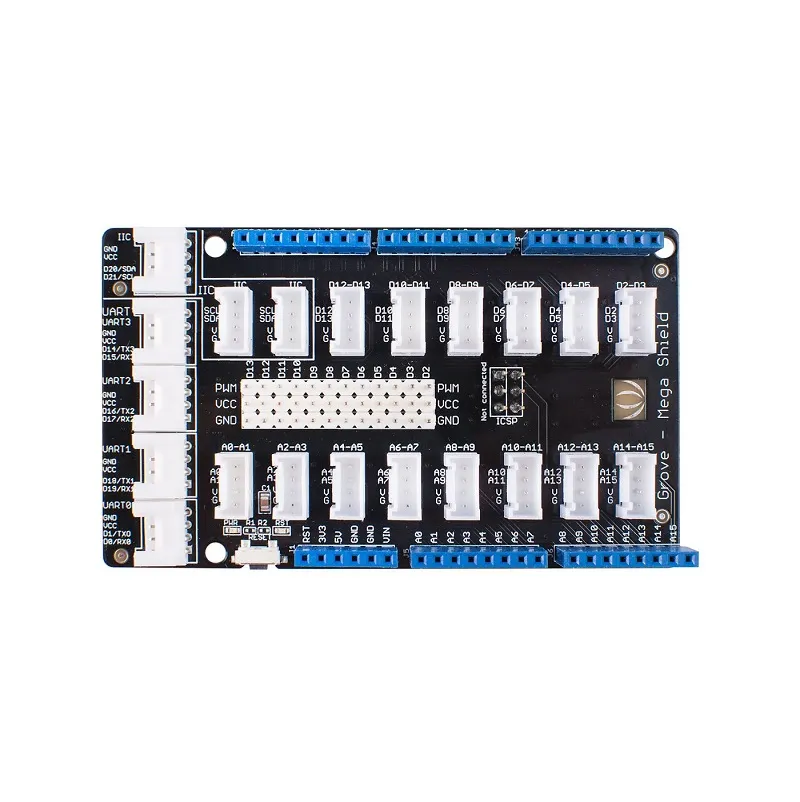

Functionally, the Grove Mega Shield meticulously maps and labels its sockets to corresponding I/O pins of the connected Arduino Mega, providing a clear and organized interface. It extends access to Digital pins 0 through 21 and Analog pins 0 through 15, carefully omitting higher digital pins (D22-D53) to ensure easy installation and compatibility with the Xduino Mega/Google ADK form factor. The board’s layout is intuitively divided into dedicated Analog, Digital, and Power areas, further enhancing its usability and allowing for structured project assembly.

The Digital area is segmented to support various GPIO functions, including multiple IIC (I2C) connectors, UART ports (UART0-3), and PWM pins (PWM2-13). Developers benefit from the flexibility of using either the 4-pin Grove connectors for standard Grove modules or the 3-pin 2.54mm headers for components like servos and ultrasonic sensors. This versatile connectivity scheme ensures that a wide array of sensors, actuators, and communication modules can be effortlessly integrated, solidifying the Grove Mega Shield as a comprehensive solution for rapid and reliable embedded system development.
