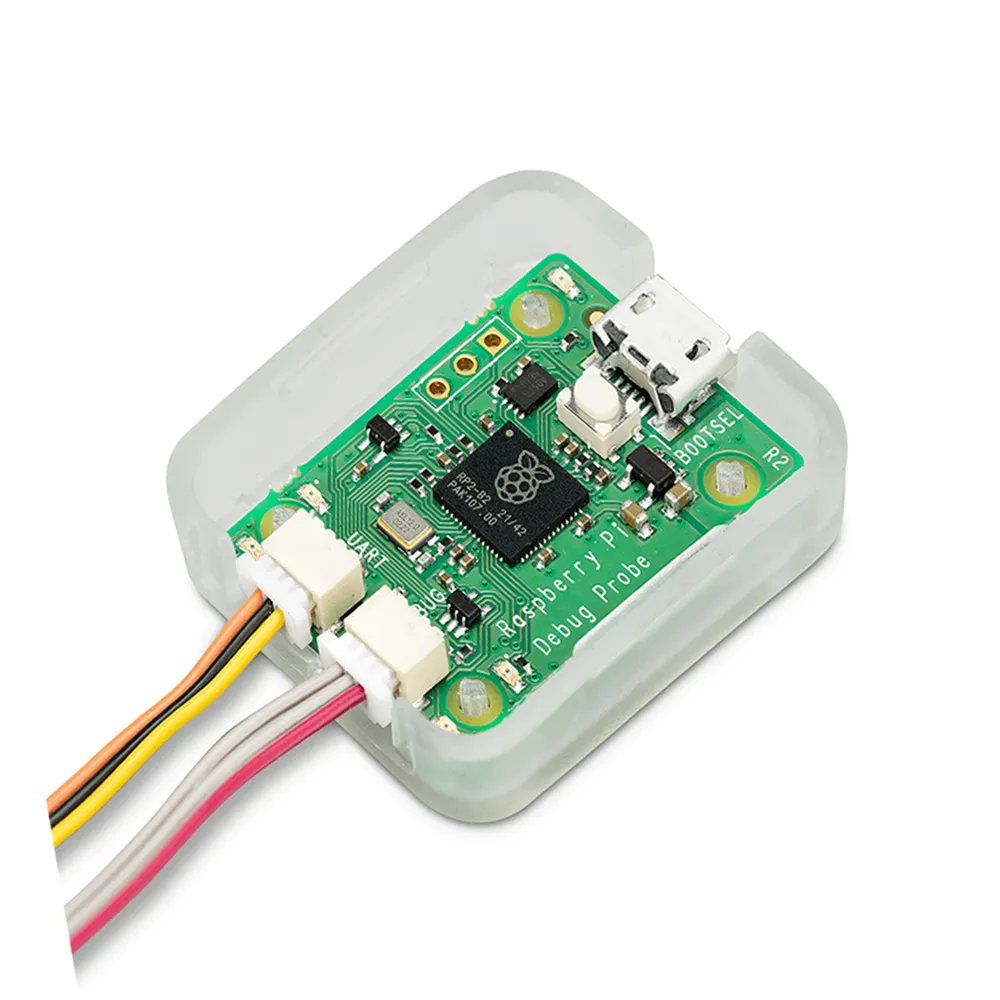

Raspberry Pi Debug Probe

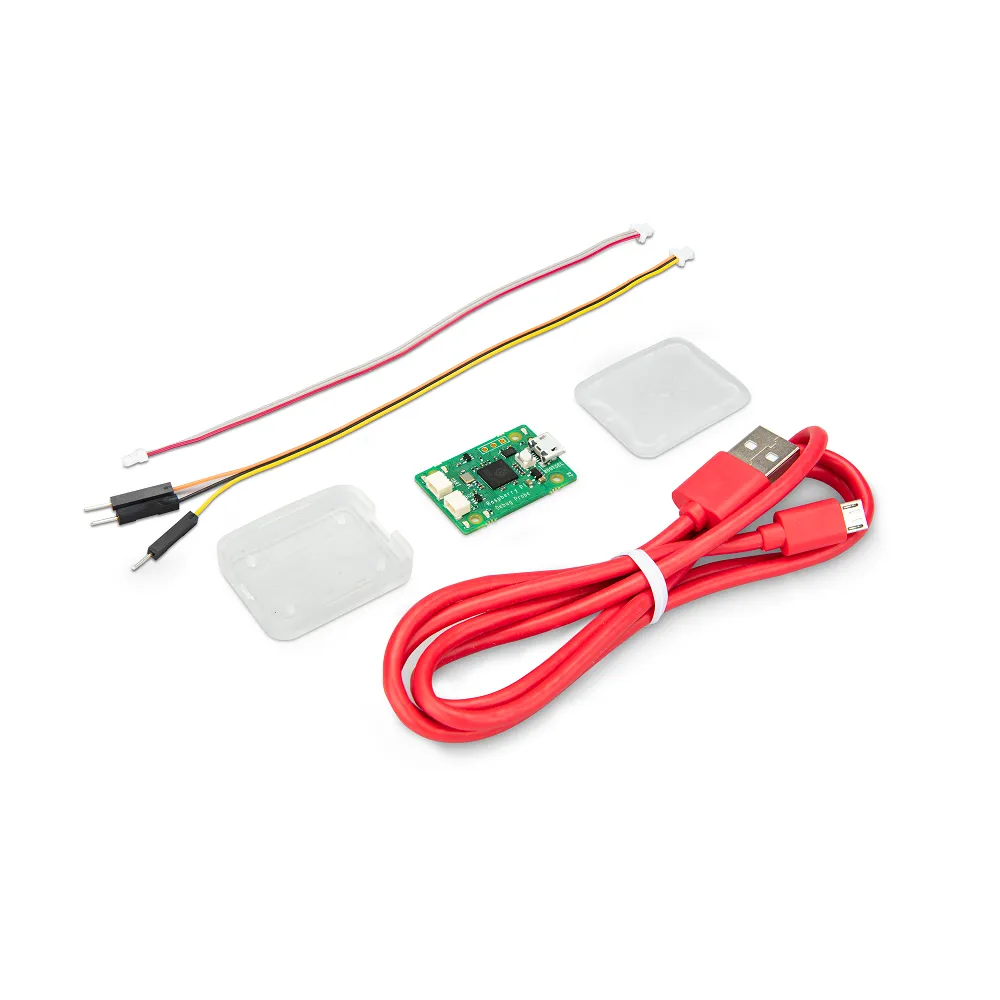

Raspberry Pi Debug Probe - Image 2

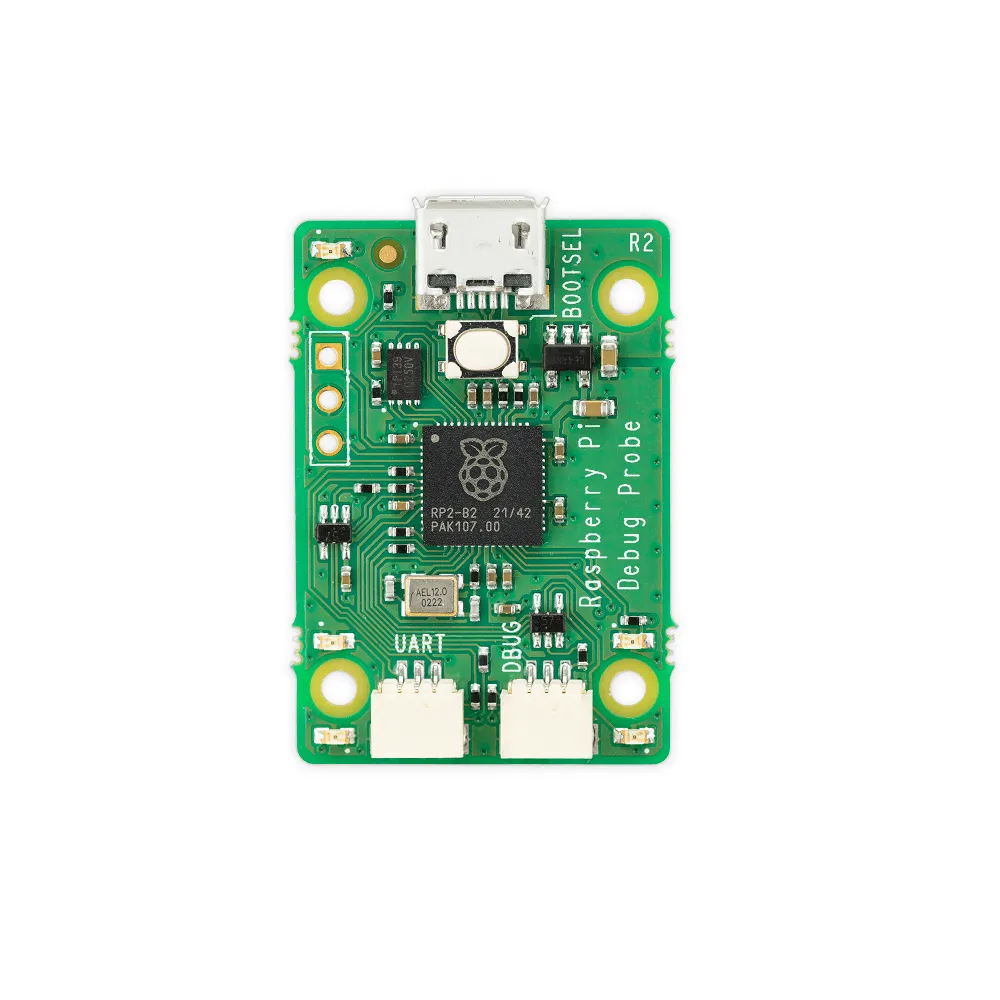

Raspberry Pi Debug Probe - Image 3

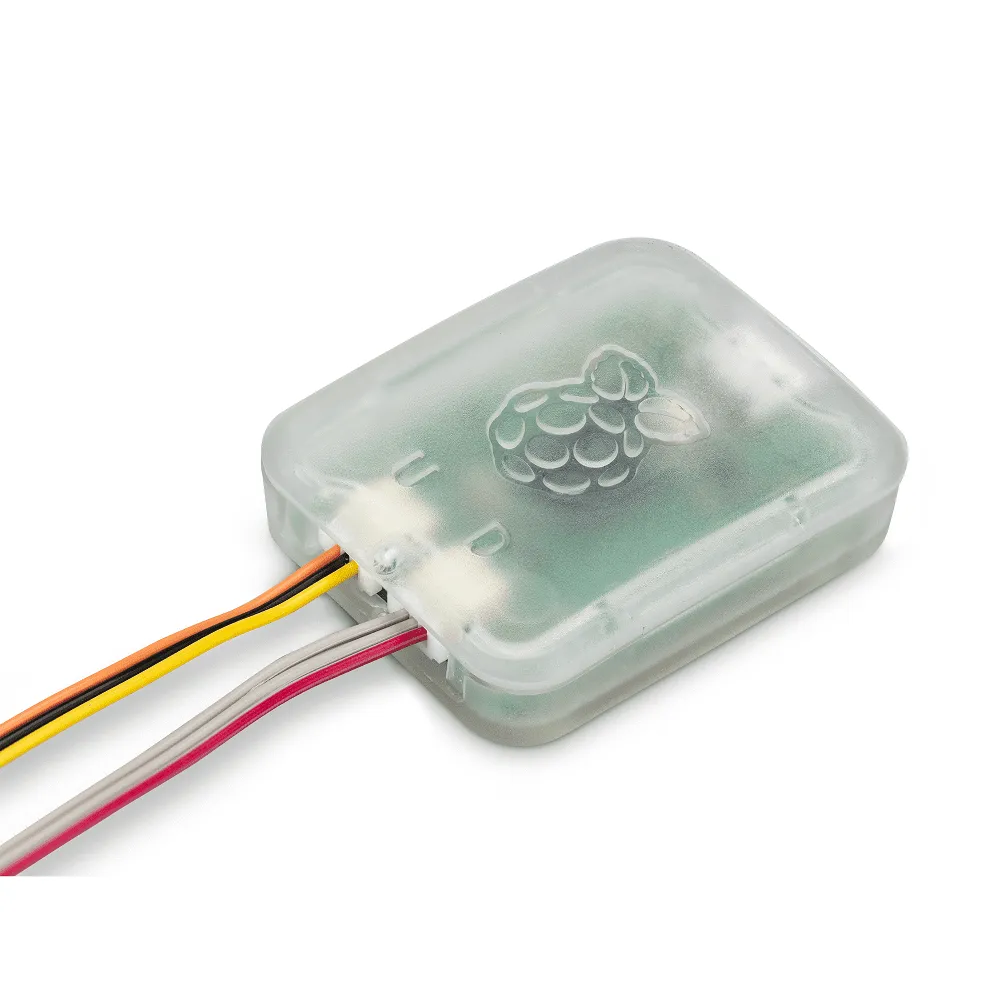

Raspberry Pi Debug Probe - Image 4
SKU: SBCD-0858
📋 GST Invoice Available

Raspberry Pi Debug Probe

₹1,119.00 (Inclusive of all taxes)
Out of Stock

The Raspberry Pi Debug Probe is a versatile, all-in-one USB-to-serial debug and UART bridge, designed for plug-and-play debugging of Raspberry Pi Pico and other microcontroller/microprocessor platforms. It offers both ARM Serial Wire Debug and a standard UART interface, facilitating development across various embedded systems.

Features

  • All-in-one USB-to-serial debug and UART bridge.
  • Supports plug-and-play debugging for Raspberry Pi Pico and other MCUs/MPUs.
  • Utilizes open-source Raspberry Pi Picoprobe firmware for easy updates.
  • Includes three types of debug cables for broad compatibility.
  • Provides standard CMSIS-DAP debug and UART interfaces over USB.

Out of stock

Description

The Raspberry Pi Debug Probe offers an essential, cost-effective solution for embedded system developers, combining a USB-to-serial debug and UART bridge into a single unit. It provides robust hardware and comprehensive cabling, enabling immediate plug-and-play debugging capabilities for a wide array of platforms, including the popular Raspberry Pi Pico. This tool simplifies the development workflow by integrating critical debugging functions into an accessible package.

Featuring both a processor serial debug interface, primarily the ARM Serial Wire Debug, and an industry-standard UART interface, the Debug Probe ensures broad compatibility. Both interfaces adhere to the Raspberry Pi 3-pin debug connector specification. While optimized for Raspberry Pi targets, its adherence to standard CMSIS-DAP debug and UART interfaces via USB allows it to serve as a versatile debugger for other embedded systems or as a straightforward USB-to-UART converter.

Firmware updates are streamlined, mirroring the process used for Raspberry Pi Pico, allowing users to easily maintain the latest Picoprobe firmware or deploy custom firmware. This flexibility ensures the Debug Probe remains a relevant and adaptable tool for various debugging scenarios across different operating systems like Windows, macOS, and Linux.

Key Features

  • All-in-one USB-to-serial debug and UART bridge functionality.
  • Integrates both ARM Serial Wire Debug (SWD) and a standard UART interface.
  • Utilizes a compact 3-pin debug connector, adhering to Raspberry Pi specifications.
  • Powered by open-source Raspberry Pi Picoprobe firmware, easily updatable via USB.
  • Enables plug-and-play debugging for Raspberry Pi Pico and diverse microcontroller/microprocessor platforms.
  • Compatible with CMSIS-DAP standard debug protocols.
  • Operates across Windows, Mac OS X, and Linux environments.
  • Includes three types of debug cables to support various connection scenarios.

Applications

  • Debugging Raspberry Pi Pico and RP2040-based projects.
  • Microcontroller development and firmware debugging (e.g., ARM Cortex-M, STM32).
  • Processor serial debug (SWD) for embedded systems.
  • UART communication for serial console access and data logging.
  • Educational projects involving embedded systems and hardware debugging.
  • Troubleshooting custom hardware platforms.

Technical Specifications

USB Bus Power5V, up to 500mA
Operating Voltage2.7V to 5.25V
FirmwareRaspberry Pi Picoprobe open-source firmware (USB updatable)
OS SupportWindows, Mac OS X, Linux
Debug StandardCMSIS-DAP
Weight0.03 kg
Dimensions6 × 5 × 3 cm

Frequently Asked Questions

What is the primary function of the Raspberry Pi Debug Probe?

The Debug Probe serves as an all-in-one USB-to-serial debug and UART bridge. It facilitates plug-and-play debugging for Raspberry Pi Pico and other microcontrollers/microprocessors, providing both ARM Serial Wire Debug and a standard UART interface over USB.

Which debug standards and interfaces does it support?

It primarily supports the ARM Serial Wire Debug (SWD) interface for processor debugging and an industry-standard UART interface. It is compatible with the CMSIS-DAP standard, making it versatile for various embedded development environments and tools.

How is the firmware updated on the Raspberry Pi Debug Probe?

Firmware updates are straightforward, utilizing the same method as updating a Raspberry Pi Pico. Users can easily flash the latest open-source Picoprobe firmware or custom firmware via the USB connection, ensuring the device remains up-to-date.

What operating systems are compatible with the Debug Probe?

The Raspberry Pi Debug Probe offers broad operating system compatibility. It supports Windows, Mac OS X, and Linux, requiring appropriate drivers where necessary. This ensures flexibility for developers working across different development environments.

Can the Debug Probe be used with microcontrollers other than Raspberry Pi Pico?

Yes, while designed with the Raspberry Pi ecosystem in mind, the Debug Probe provides standard CMSIS-DAP debug and UART interfaces over USB. This allows it to debug other targets, or function as a cost-effective USB-to-UART cable for general embedded development.

Package Includes

  • 1 x Official Raspberry Pi Debug Probe

Additional Information

Weight 0.03 kg
Dimensions 6 × 5 × 3 cm
