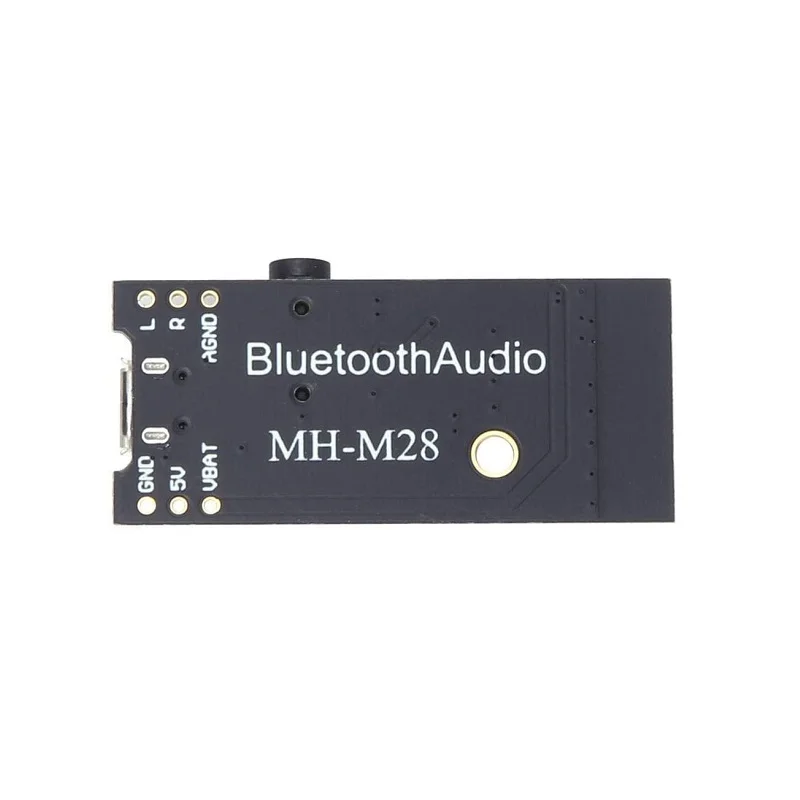

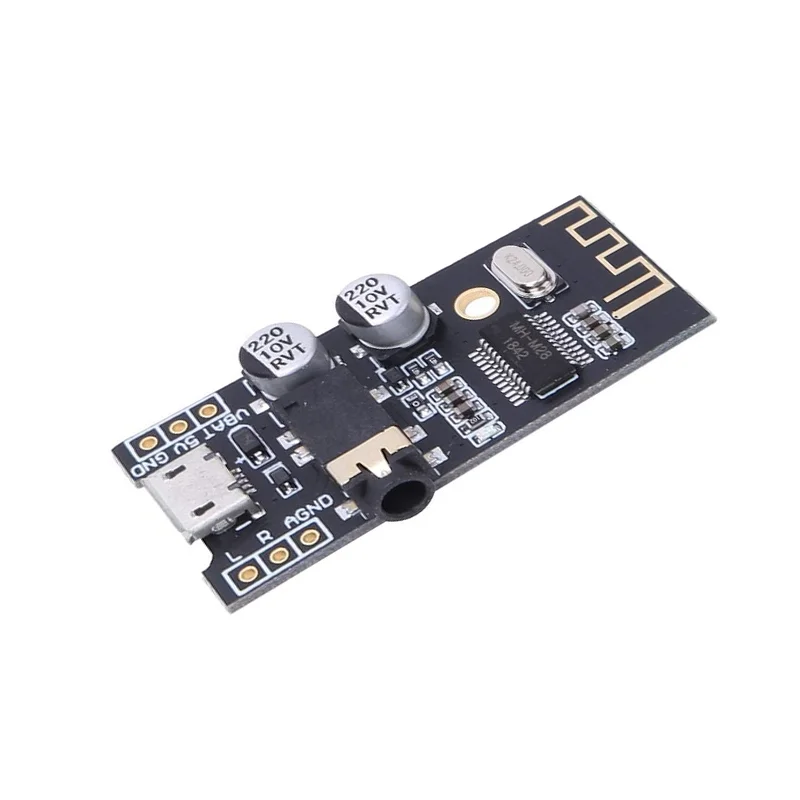

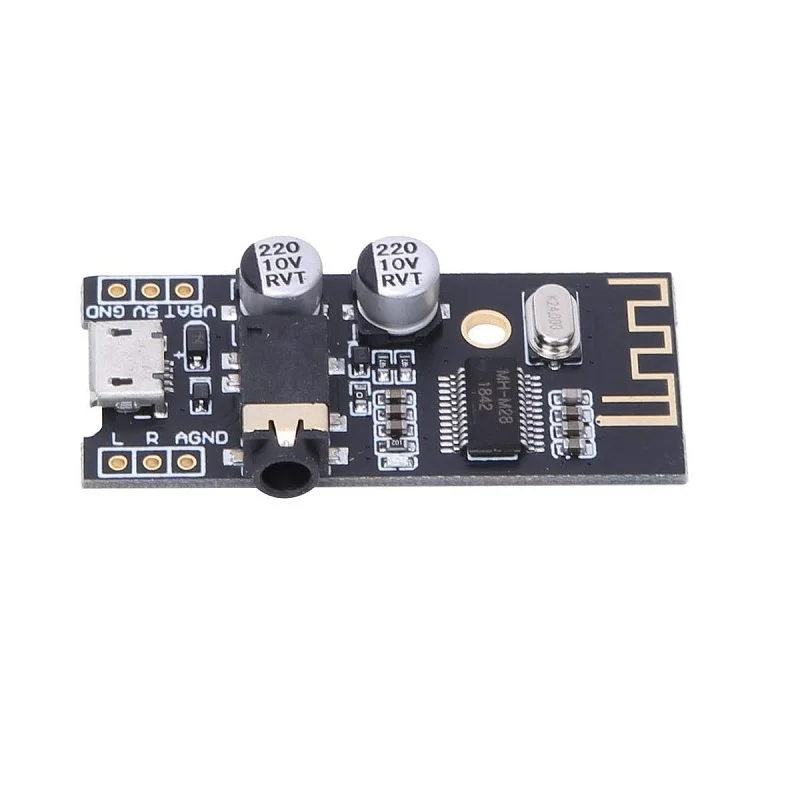

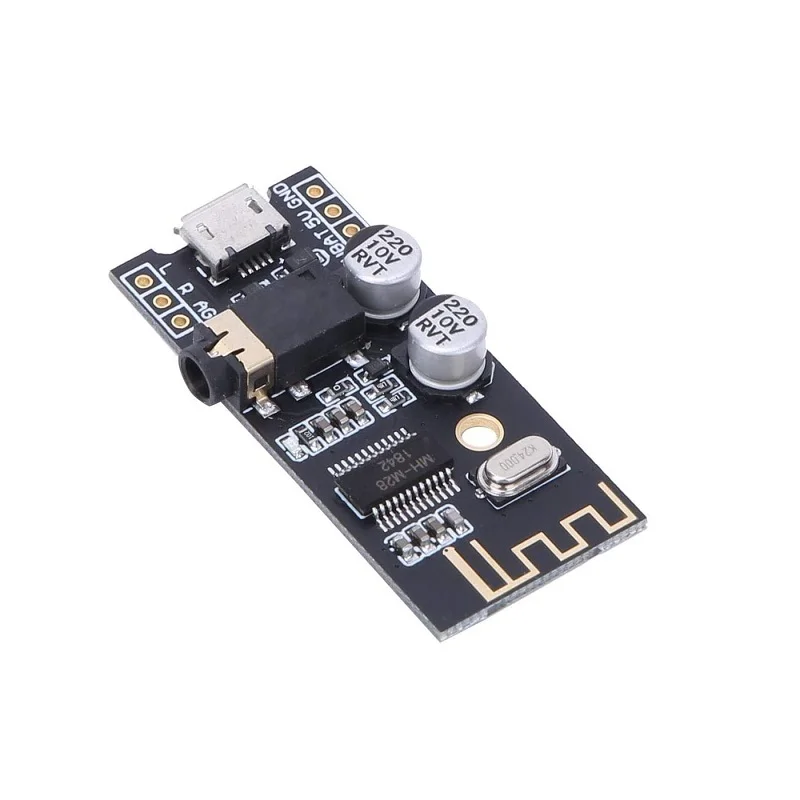

MH-M28 Bluetooth 4.2 Audio Receiver Board Module w/ 3.5mm Jack
The MH-M28 is a compact Bluetooth 4.2 audio receiver module designed for DIY audio projects, featuring lossless MP3/WAV/FLAC decoding and stereo output via a 3.5mm jack for easy integration with existing speakers.
Features
- Bluetooth 4.2 audio receiver with HFP, A2DP, and AVRCP profiles for wireless music streaming and hands-free calling.
- Supports lossless audio decoding for WAV, FLAC, APE, and MP3 formats for high-fidelity stereo playback.
- Compact 45x20mm board with 3.5mm audio jack and micro-USB/Li-ion power input (3.7-5V).
- Up to 20-meter wireless range with -87dBm receiver sensitivity for stable connectivity.
- Ideal for converting traditional speakers, DIY Bluetooth audio projects, and portable audio systems.
Out of stock
The MH-M28 Wireless Bluetooth Audio Receiver Board Module provides a low-power, integrated solution for adding Bluetooth audio streaming capabilities to any audio system. Based on Bluetooth 4.2 technology, it supports advanced audio distribution (A2DP) and hands-free profiles (HFP) for both music playback and call functionality.
Its onboard audio decoder handles a wide range of formats, including high-quality lossless files, delivering clear stereo output through the integrated 3.5mm audio jack. The module operates from a 3.7V to 5V DC supply, compatible with micro-USB ports or single-cell lithium batteries, making it suitable for portable and fixed installations with a typical operating current up to 20mA.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 4.5 × 2 cm |
