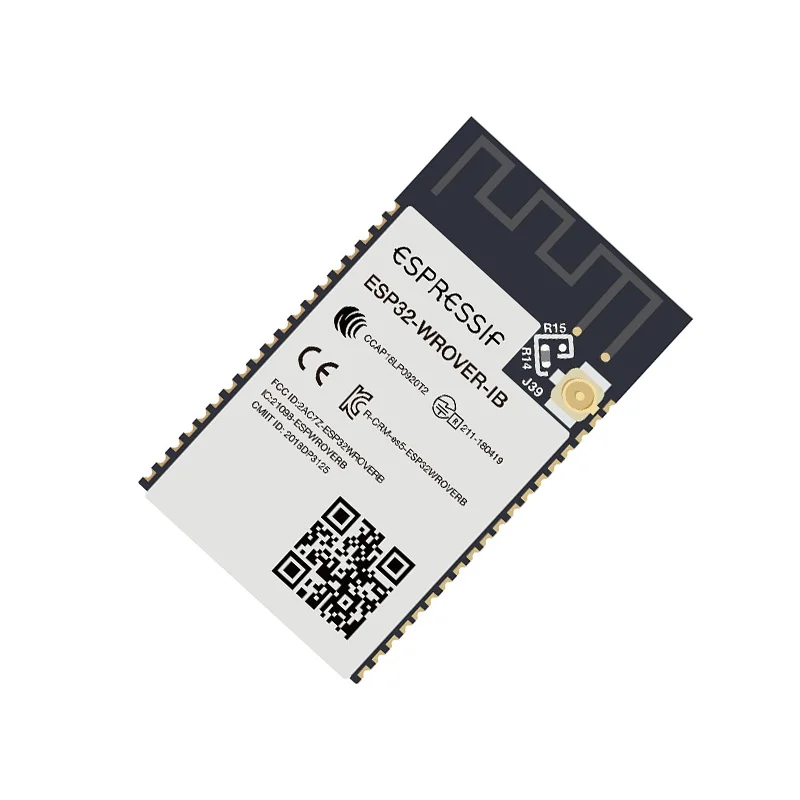

ESP32-WROVER-IB WiFi Bluetooth Module 8MB Flash 64MB PSRAM

The integrated 64MB Pseudo Static RAM (PSRAM) provides a significant memory buffer external to the core microcontroller, enabling data-intensive operations without relying on slower external flash. This is critical for applications like audio streaming, where MP3 frames are decoded into a buffer, image processing for displays, or caching large datasets from sensors or network packets. It allows the ESP32's dual cores to handle more complex tasks and larger firmware while maintaining performance, a key upgrade over standard ESP32 modules with only internal SRAM.

You program the module using the standard ESP32 toolchain. The most common method is via the Arduino IDE with the ESP32 board package installed, which provides a familiar environment for sketches. For full feature control and lower-level access, Espressif's official ESP-IDF (IoT Development Framework) is recommended, offering direct configuration of Wi-Fi stacks, Bluetooth profiles, and dual-core tasks. Flashing is typically done over a serial connection (UART) using a USB-to-serial adapter connected to the GPIO pins designated for bootloading (GPIO0 and EN/RST). Ensure your development environment is configured for the correct Flash and PSRAM sizes (8MB, 64MB) to fully utilize the hardware.

The ESP32-WROVER-IB variant specified here comes with an integrated PCB antenna, which is soldered onto the module and is not user-replaceable. For projects requiring an external antenna, you would need to source a different module variant (often denoted with a suffix like 'E' or 'UE') that includes an external antenna connector such as an IPEX or SMA. Attempting to desolder the onboard antenna and attach an external one is not recommended, as it can damage the RF circuitry and impair the impedance matching, drastically reducing performance and violating FCC/CE certifications.
