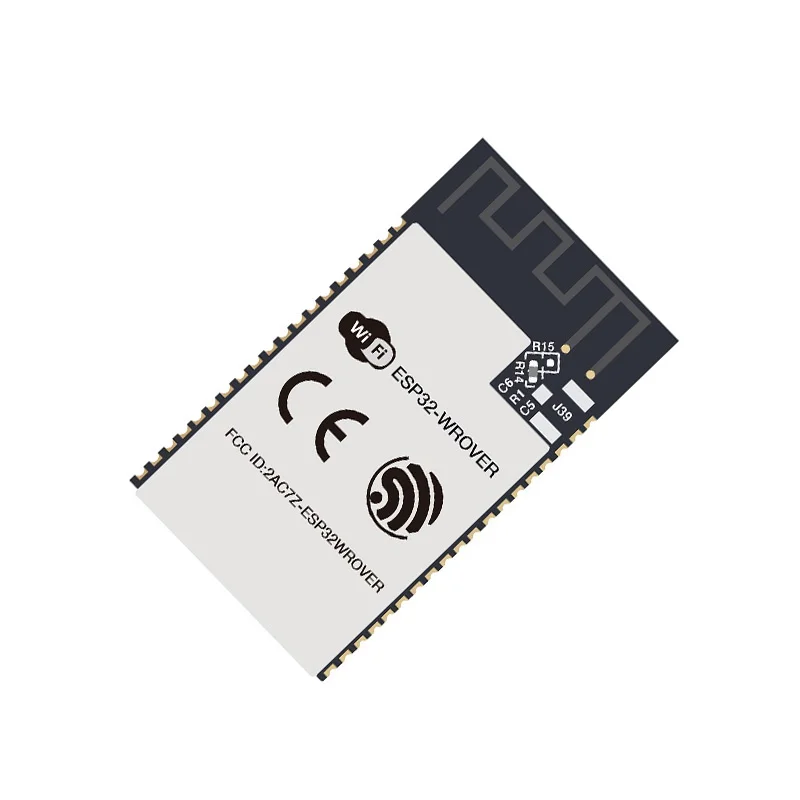

ESP32-WROVER-IPEX WiFi Bluetooth Module 16MB Flash 128MB PSRAM

The 128MB PSRAM provides a significant pool of volatile memory for buffering large datasets, audio frames, or graphics, which is essential for applications like voice processing, camera image buffering, or complex web servers. It allows the ESP32 to handle tasks that would overflow its internal RAM, enabling more sophisticated IoT applications without external memory hardware. You can access it via the ESP-IDF SPI RAM driver or Arduino library functions.

The IPEX (or U.FL) connector requires a compatible pigtail cable with a matching IPEX male plug on one end and your desired antenna connector (e.g., SMA, RP-SMA) on the other. Carefully snap the plug onto the module's connector, ensuring it clicks into place. Route the cable away from digital noise sources. For optimal RF performance, use a 50-ohm antenna tuned for 2.4GHz and keep the pigtail as short as possible to minimize signal loss.

Provide a stable 3.3V DC supply capable of delivering at least 500mA peak current to handle Wi-Fi transmission bursts. Use a low-noise LDO regulator close to the module's VCC pin, with ample bulk capacitance (e.g., 10µF tantalum + 100nF ceramic) on the power rails. For battery operation, implement proper power sequencing and leverage the ESP32's deep sleep modes, where current drops below 5µA, to maximize lifespan. Avoid using noisy switching regulators without sufficient filtering.

Yes, you can program it using the Arduino IDE with the ESP32 board support package installed. Select 'ESP32 Wrover Module' as your board. Ensure you have the correct USB-to-serial adapter connected to the module's TX/RX pins (GPIO1 and GPIO3). The large flash and PSRAM are automatically managed by the core libraries. For advanced features like using the PSRAM as heap, you may need to enable it in the Arduino IDE's board configuration menu under 'PSRAM' setting.
